Core Features

• Highest chip density, unchanged power draw — 420 LEDs per metre at 13W/m, the same wattage as the 336 LEDs/M model and 5W below the 384 LEDs/M double-row version, giving a denser light line without upsizing the power supply.
• 14.3mm cut interval — the finest cut pitch among the 2025 models in this range, allowing precise length matching in fitted furniture and cabinet runs with fixed end panels.
• 24V operation for longer runs — 0.66A per metre reduces voltage drop versus 12V equivalents, supporting longer continuous lengths from a single feed point.
• Six colour temperature options at order — 2700K, 3000K, 3500K, 4000K, 5000K, 6500K specified when ordering; the strip is manufactured to a fixed colour temperature and is not field-switchable.

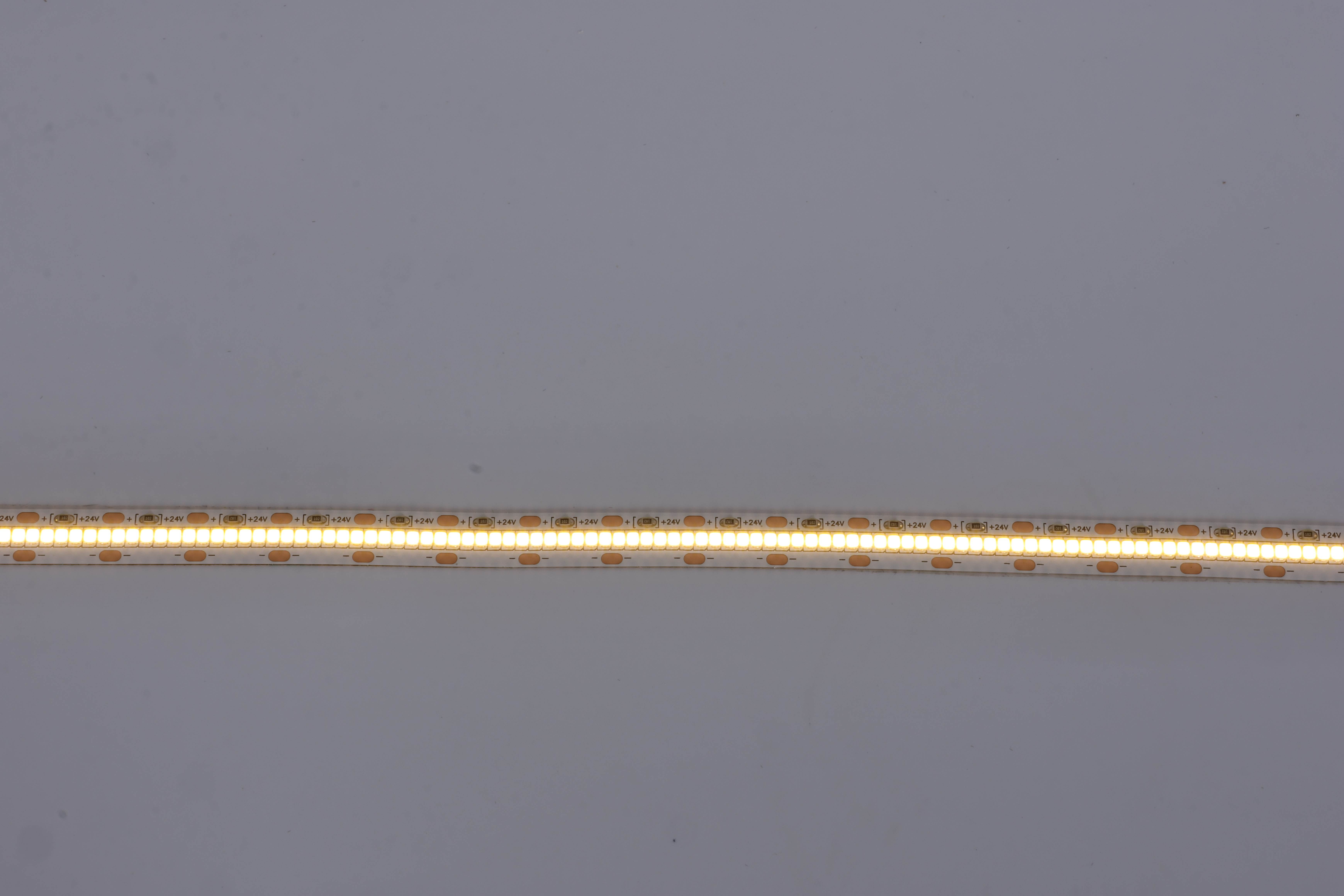

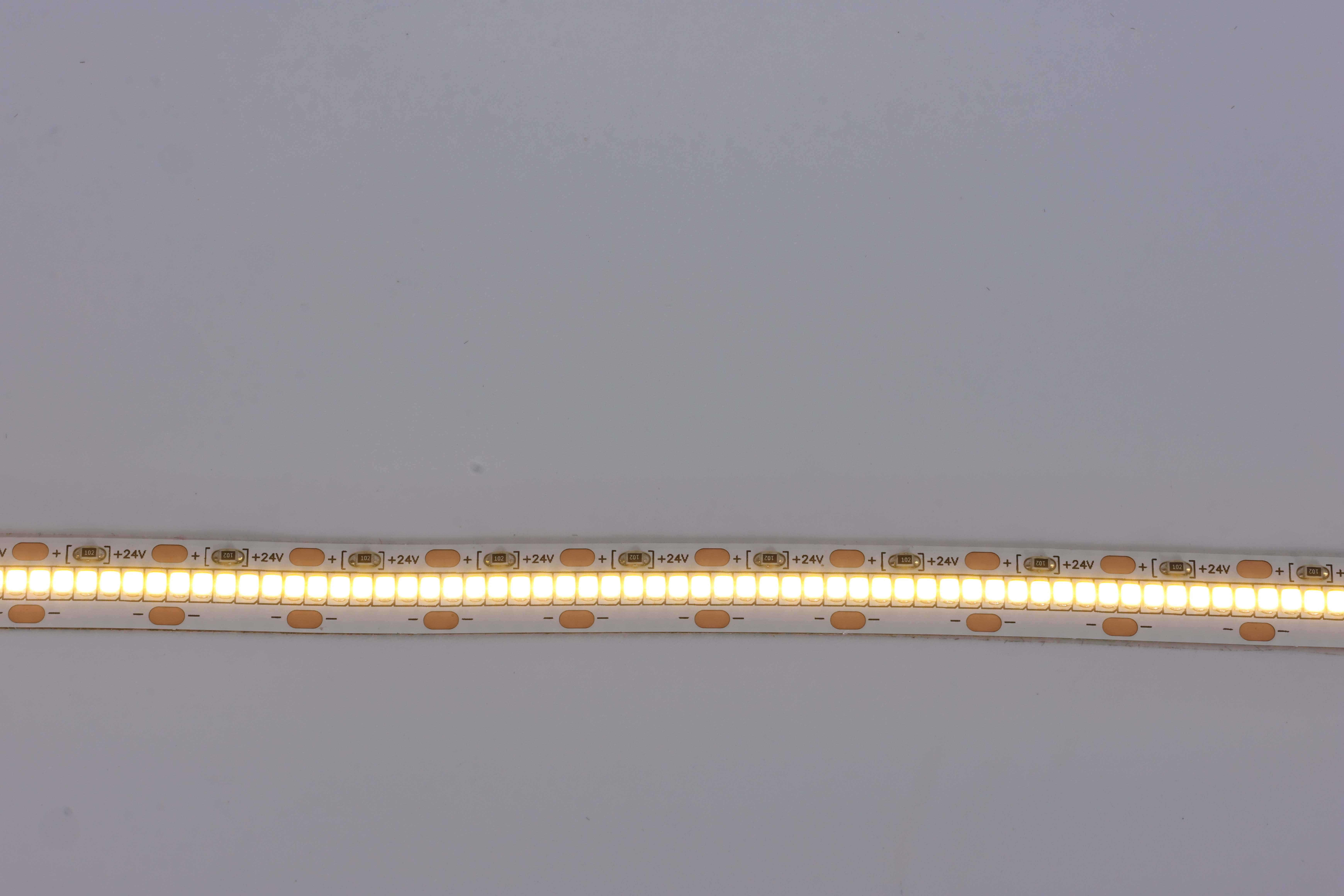

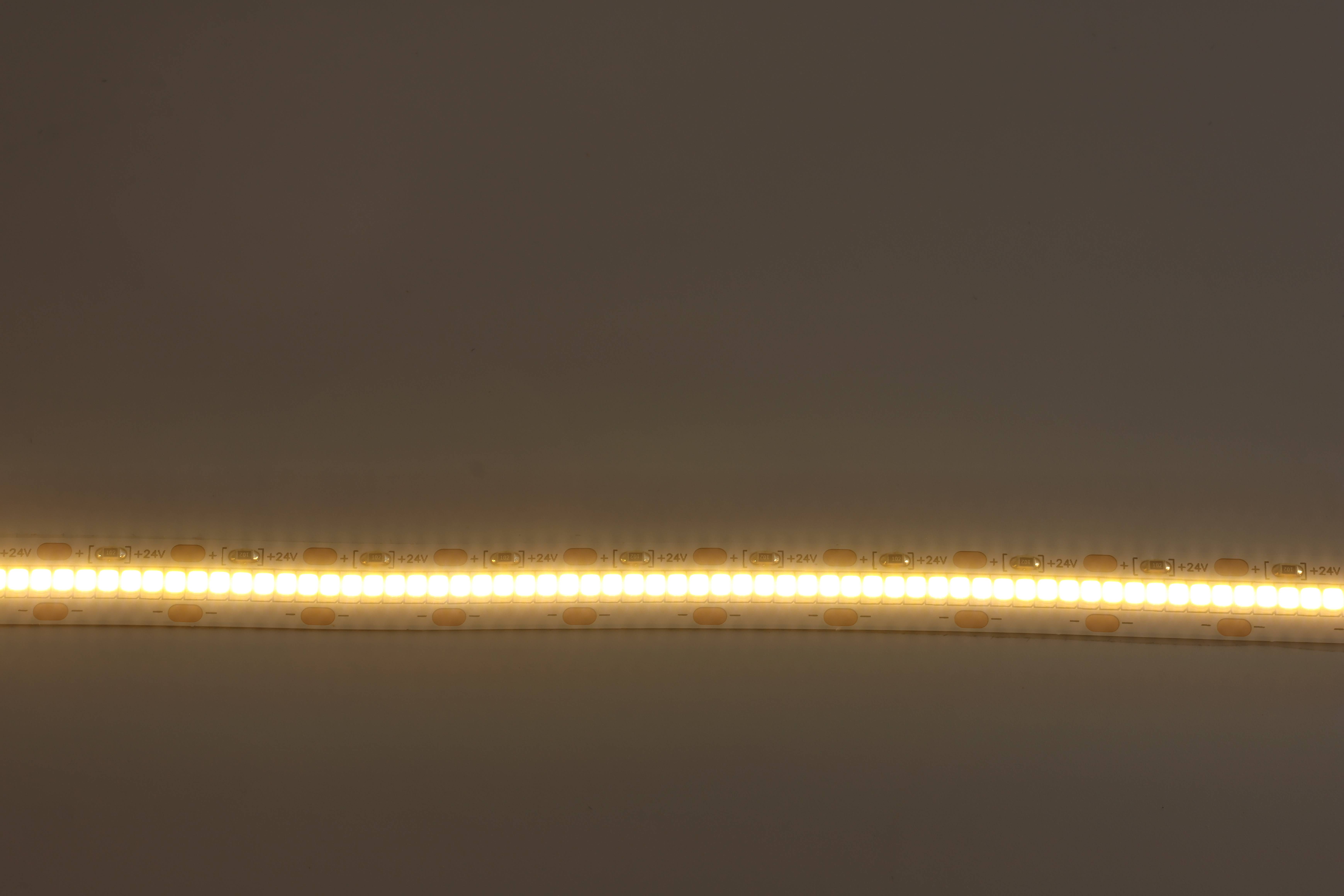

• Uniform light with no visible banding — high chip count at close pitch eliminates the hotspot pattern visible on lower-density strips at reading distance.

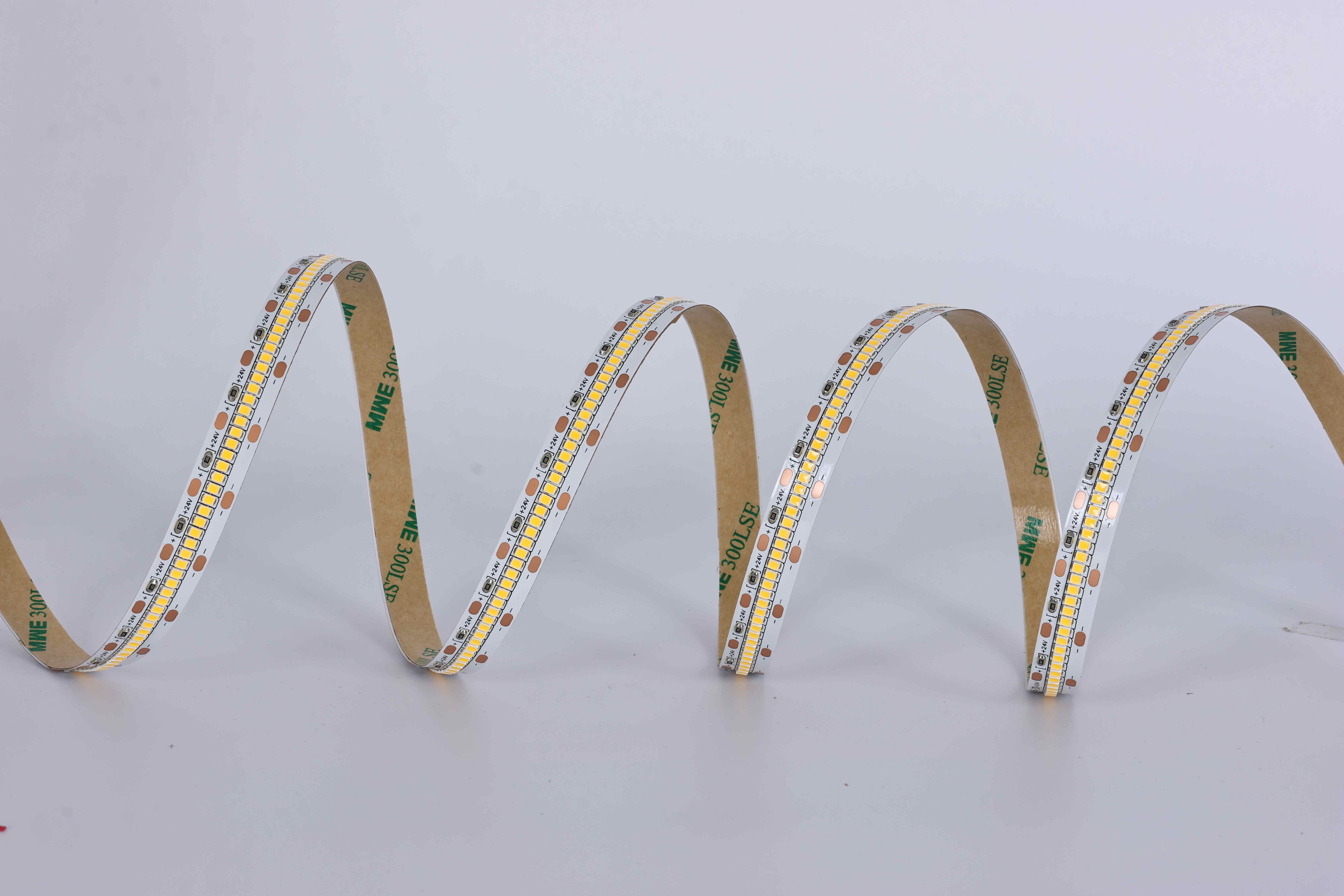

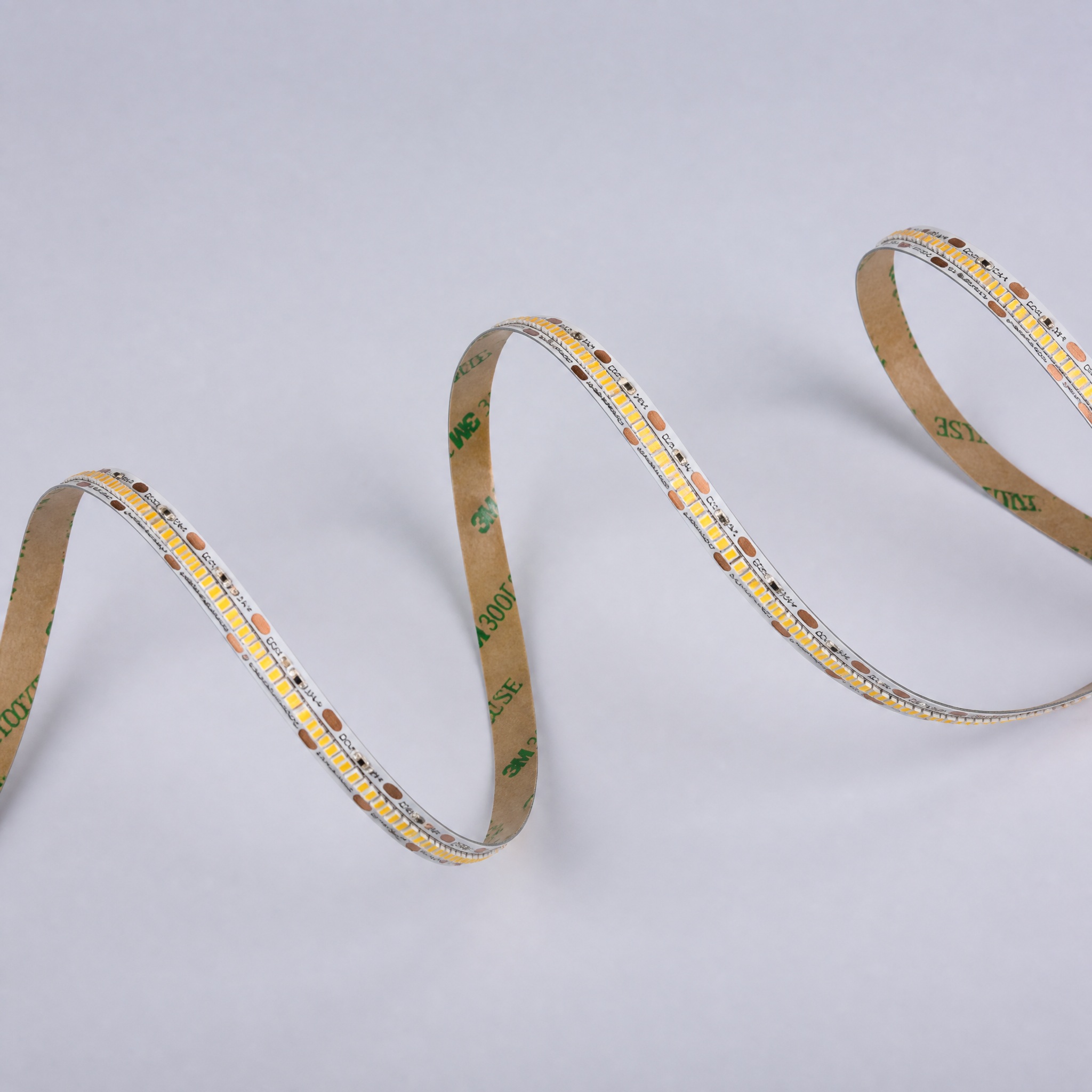

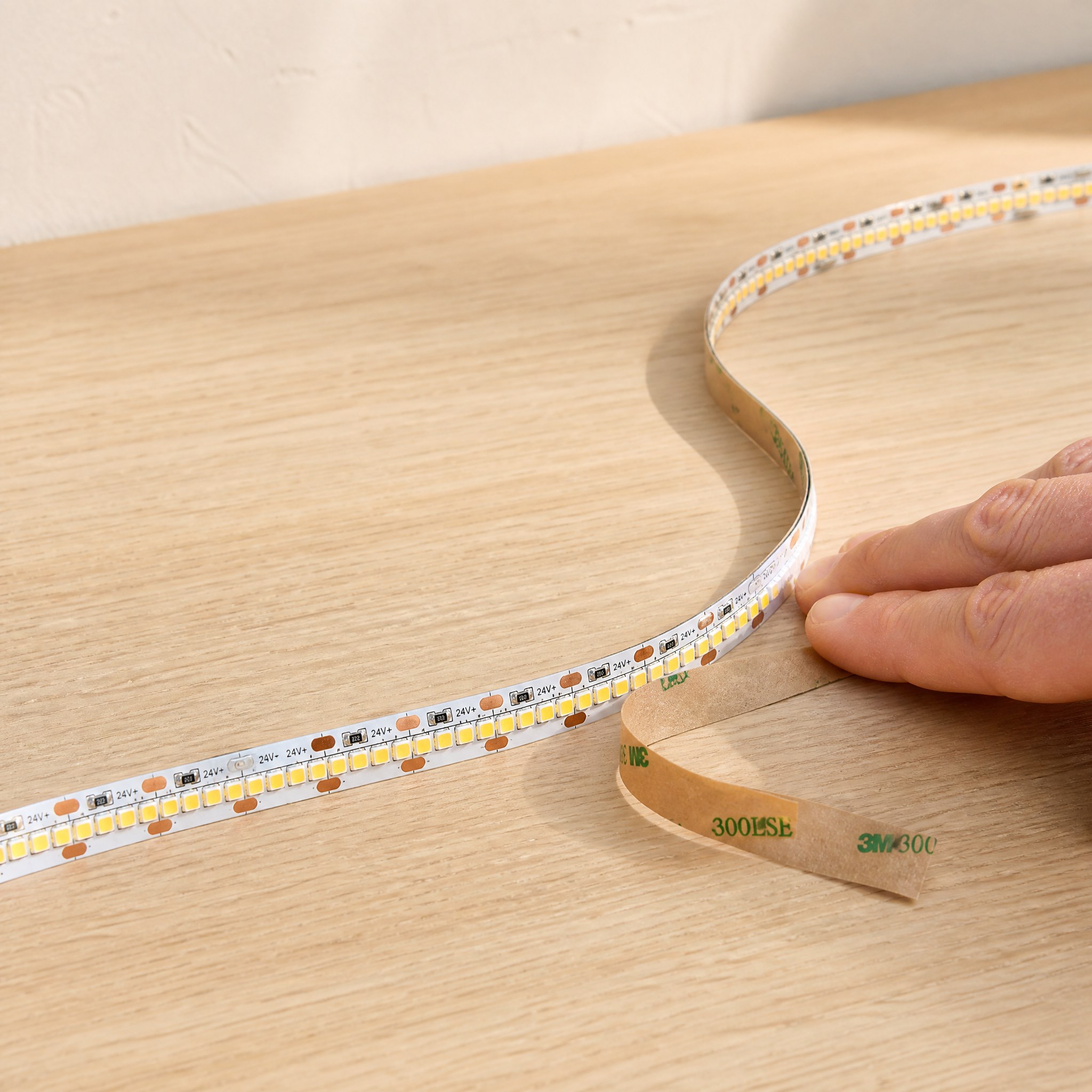

• Self-adhesive backing — double-sided tape film bonds directly to aluminium channels, plasterboard coves, and cabinet undersides without mounting clips.
• L80B20 at 20,000 hours — retains 80% of initial output at 20,000 hours with MTBF rated at the same figure.
• CE / CB / RoHS certified — manufacturer-held certifications supporting European and international B2B procurement.

Application Scenarios

• Living room cove and pelmet lighting — even ambient wash at 1300 lm/m; 14.3mm cut pitch fits precisely between fixed joinery elements.
• Bedroom headboard and valance lighting — soft, uniform indirect light with warm 2700K–3000K options for evening use.
• Under-shelf and display cabinet runs — dense chip pitch produces continuous light without the dot pattern visible on standard 120-LED strips.
• Fitted furniture and wardrobe interiors — fine cut interval allows accurate fitting to internal carcass dimensions without wasted strip.
• Hotel and hospitality guest room ambient — 24V low-current operation supports longer runs across room perimeters from a single feed.
• Residential stair and corridor accent — consistent output along extended runs; six colour temperatures match to interior scheme.

Technical Specifications

• Model No. — JNL-L-024V-2025-0420-10-S1XX
• Item No. — 101300233
• LED type — 2025 SMD
• LED quantity — 420 PCS/m
• Rated voltage — 24 V DC
• Rated power — 13 W/m ± 10%
• Input current — 0.66 A @ 1m
• Luminous flux — 1300 lm/m
• Colour temperature — 2700 / 3000 / 3500 / 4000 / 5000 / 6500 K (specified at order)
• Colour rendering index — Ra 80
• SDCM — ≤ 5
• Beam angle — 120°
• Lumen maintenance — L80B20 @ 20,000 h
• Energy efficiency class — F
• Ingress protection — IP20 (indoor dry location only)
• Outline dimensions — W10 × H1.2 ± 0.5 mm
• Surface material — Bare PCB (no silicone sleeve)

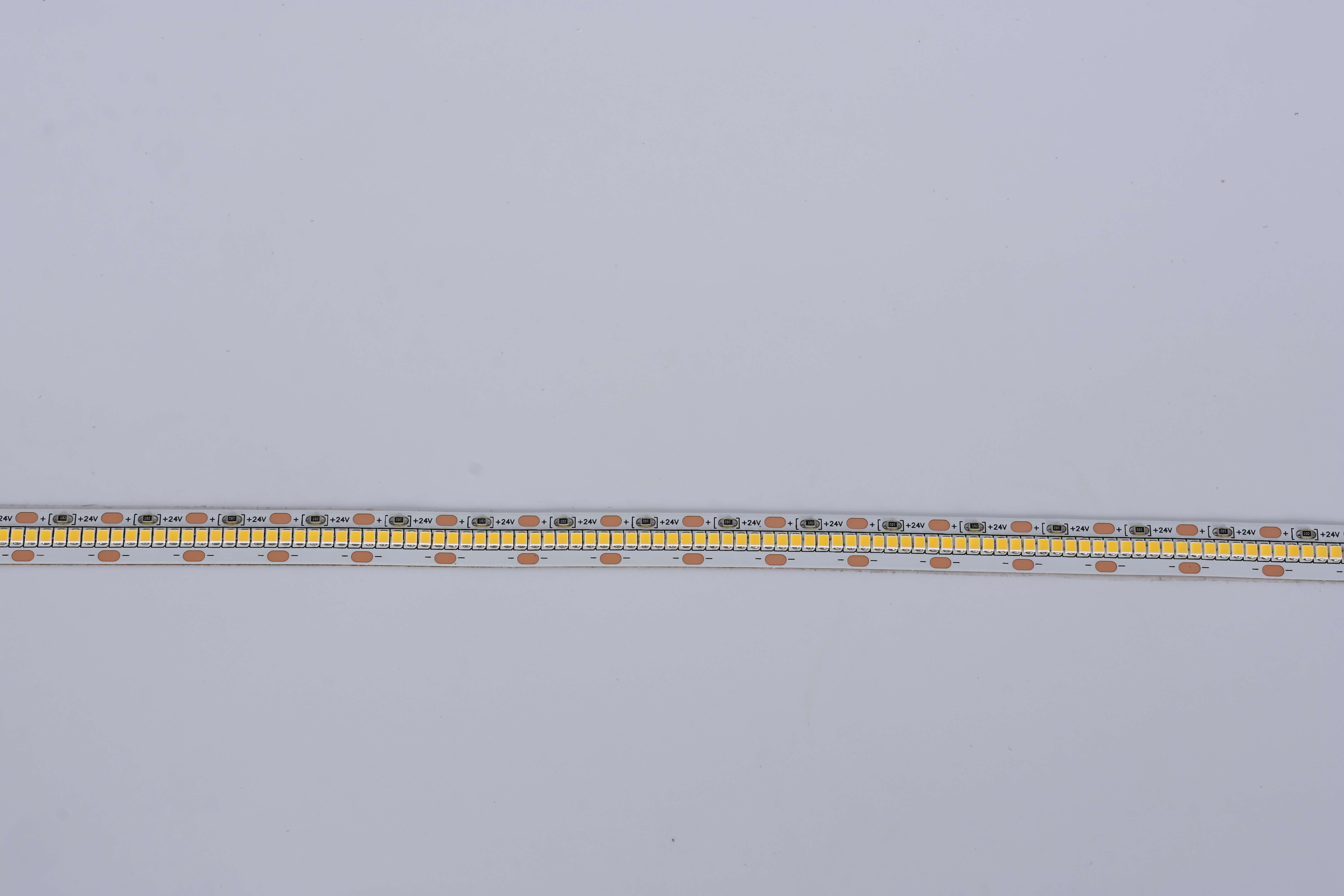

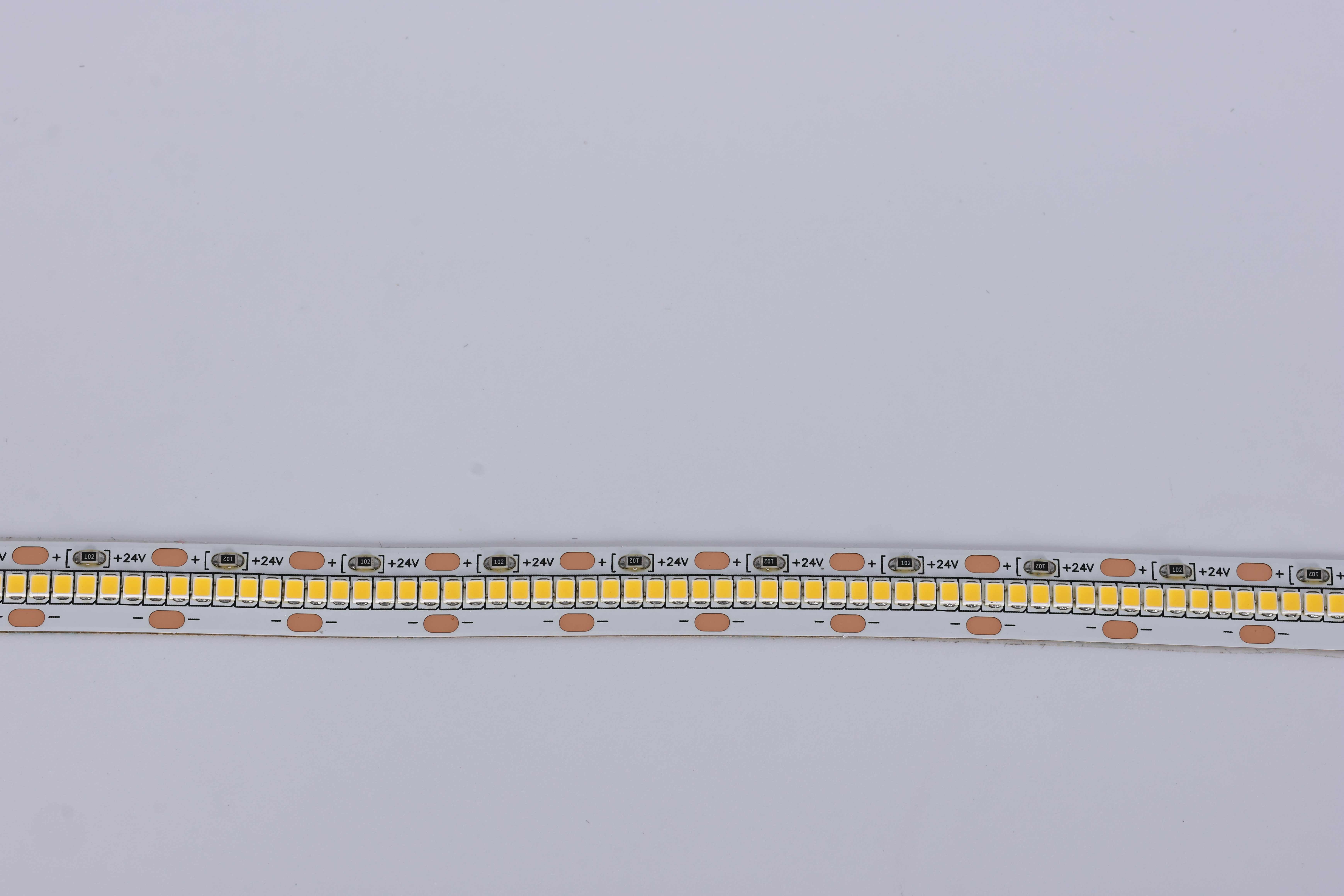

• Cut length — 14.3 mm
• Mounting method — Double-sided adhesive tape film
• Dimming method — Turn on the power and it lights up
• Switching cycles — 15,000 times
• Operating temperature — -25°C to +45°C
• Storage temperature — -40°C to +60°C
• Relative humidity — 10–90%
• MTBF — 20,000 h
• Connector compatibility — 2P board connector, 2P wire connectors (single & double end), 2P board-to-board straight / L-shape / T-shape / +-shape, 2P DC-head variant

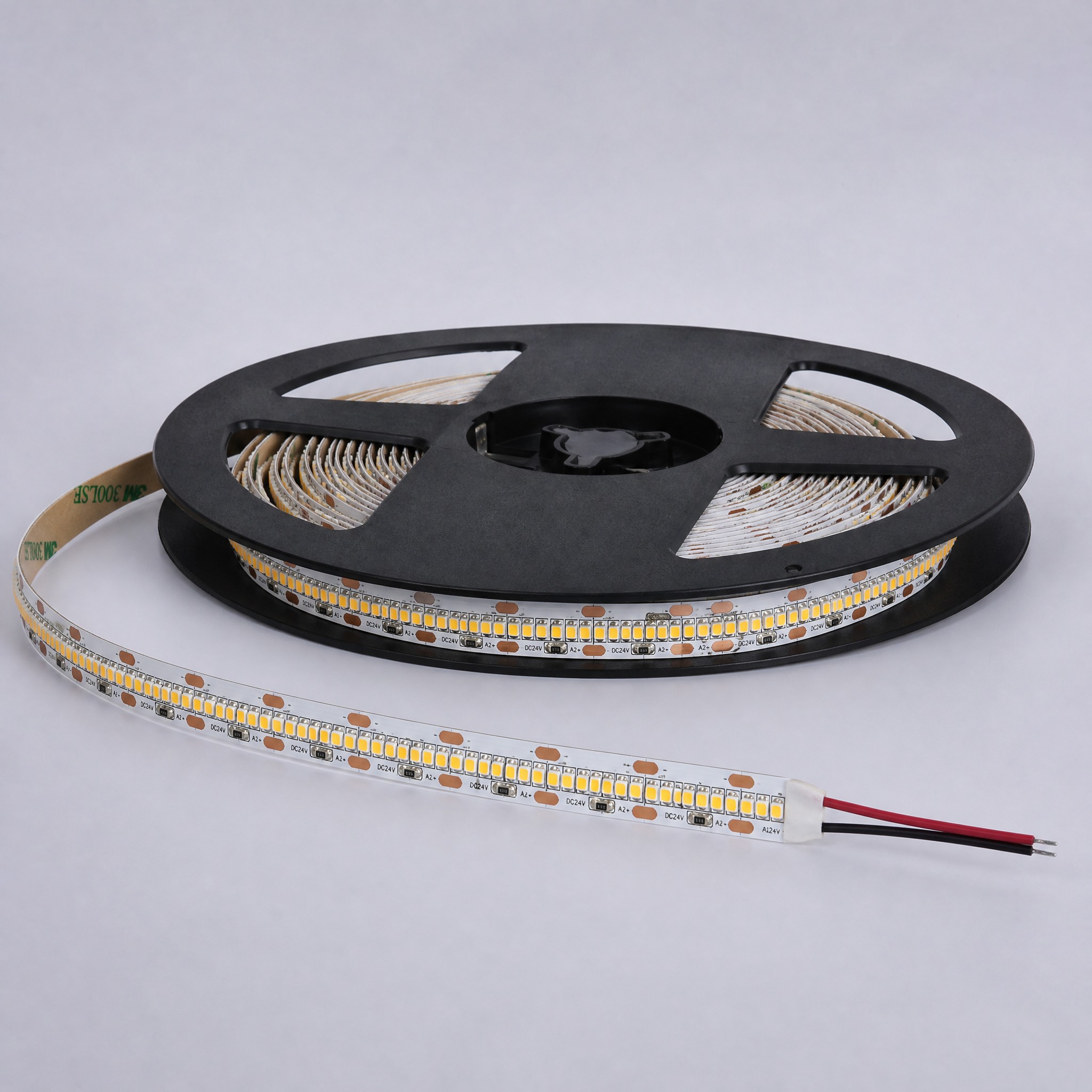

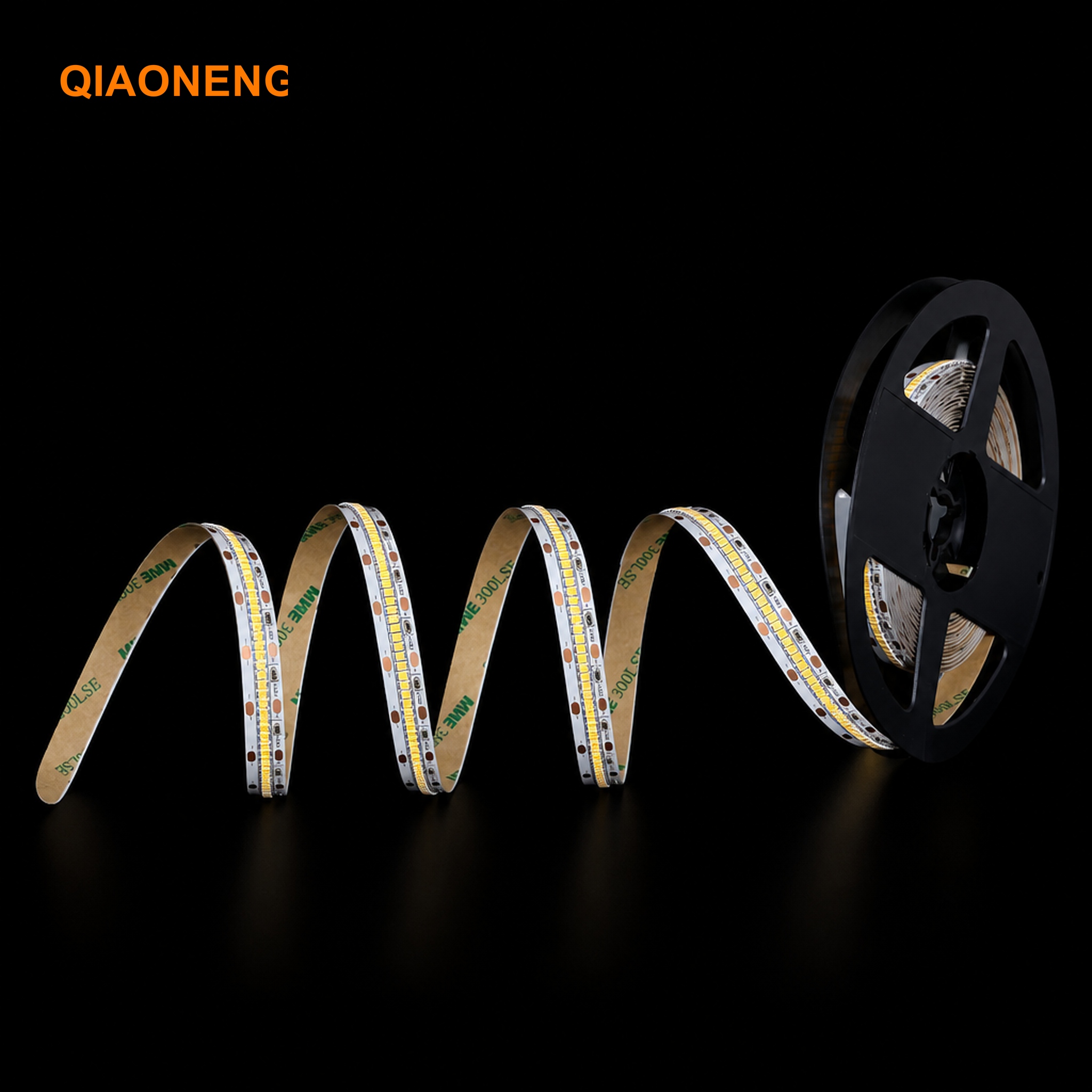

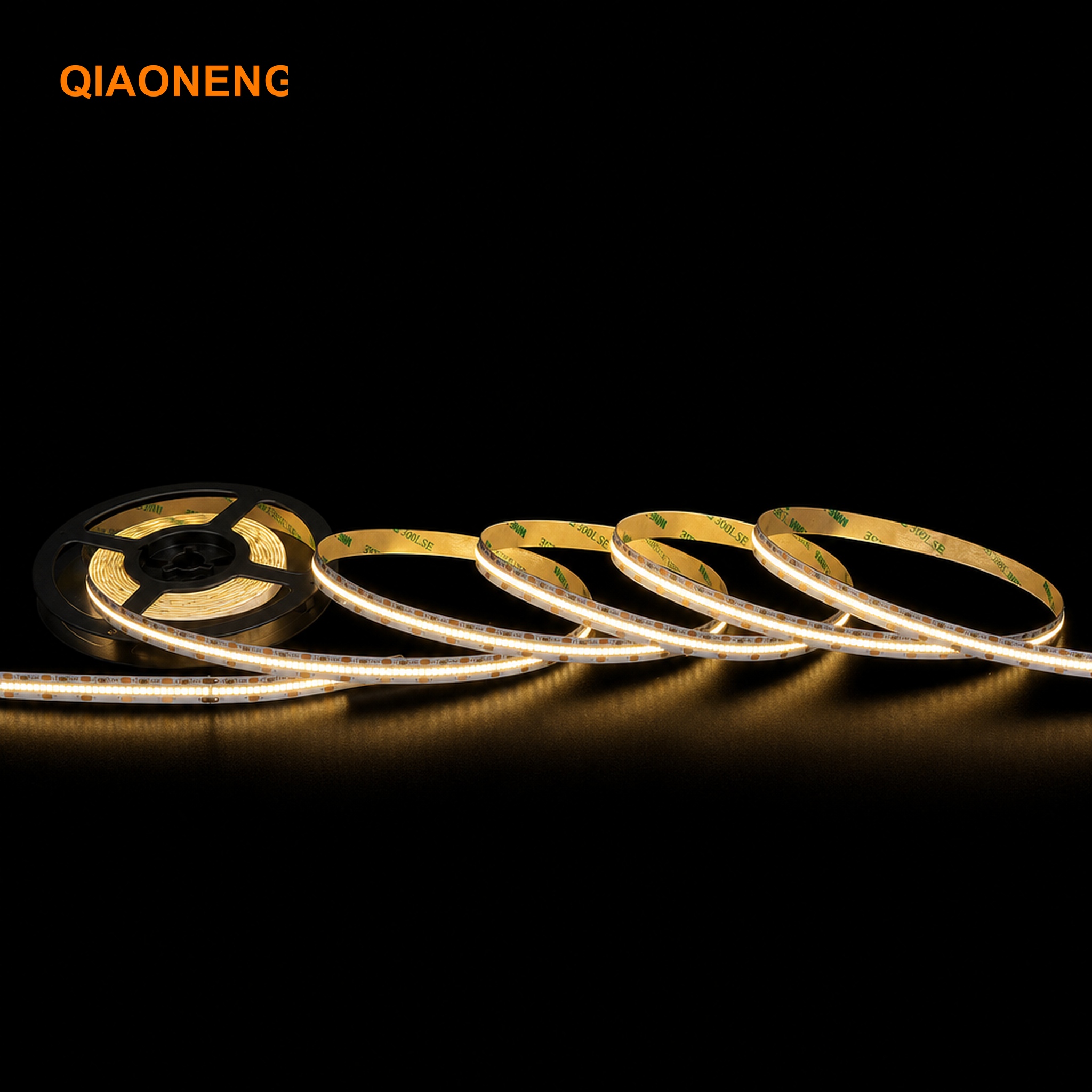

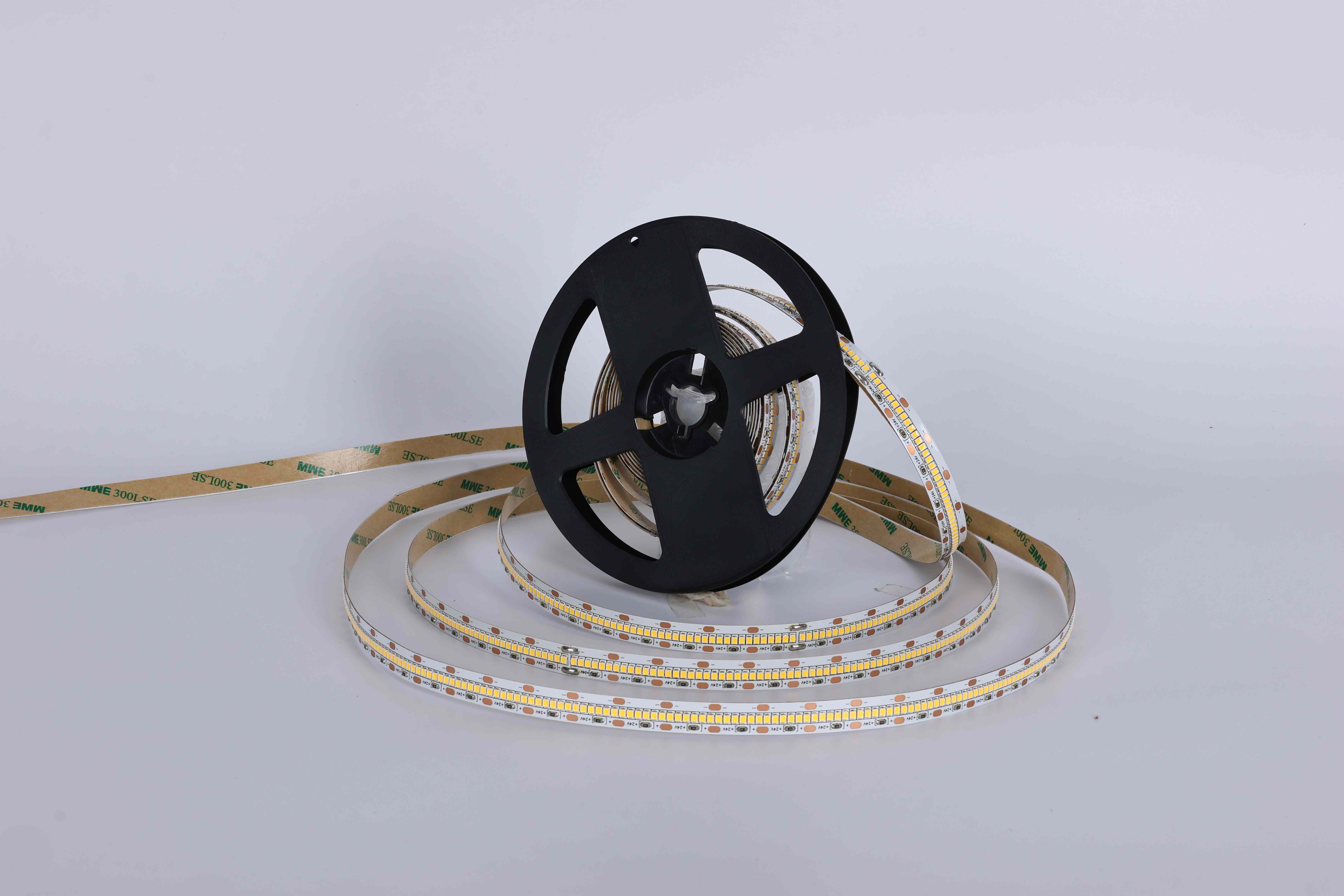

• Packing — Reel + ESD bag + Inner box + Carton
• Packing quantity — 5 m/roll × 100 rolls = 500 m per carton
• Certification — CE / CB / RoHS
