Core Features

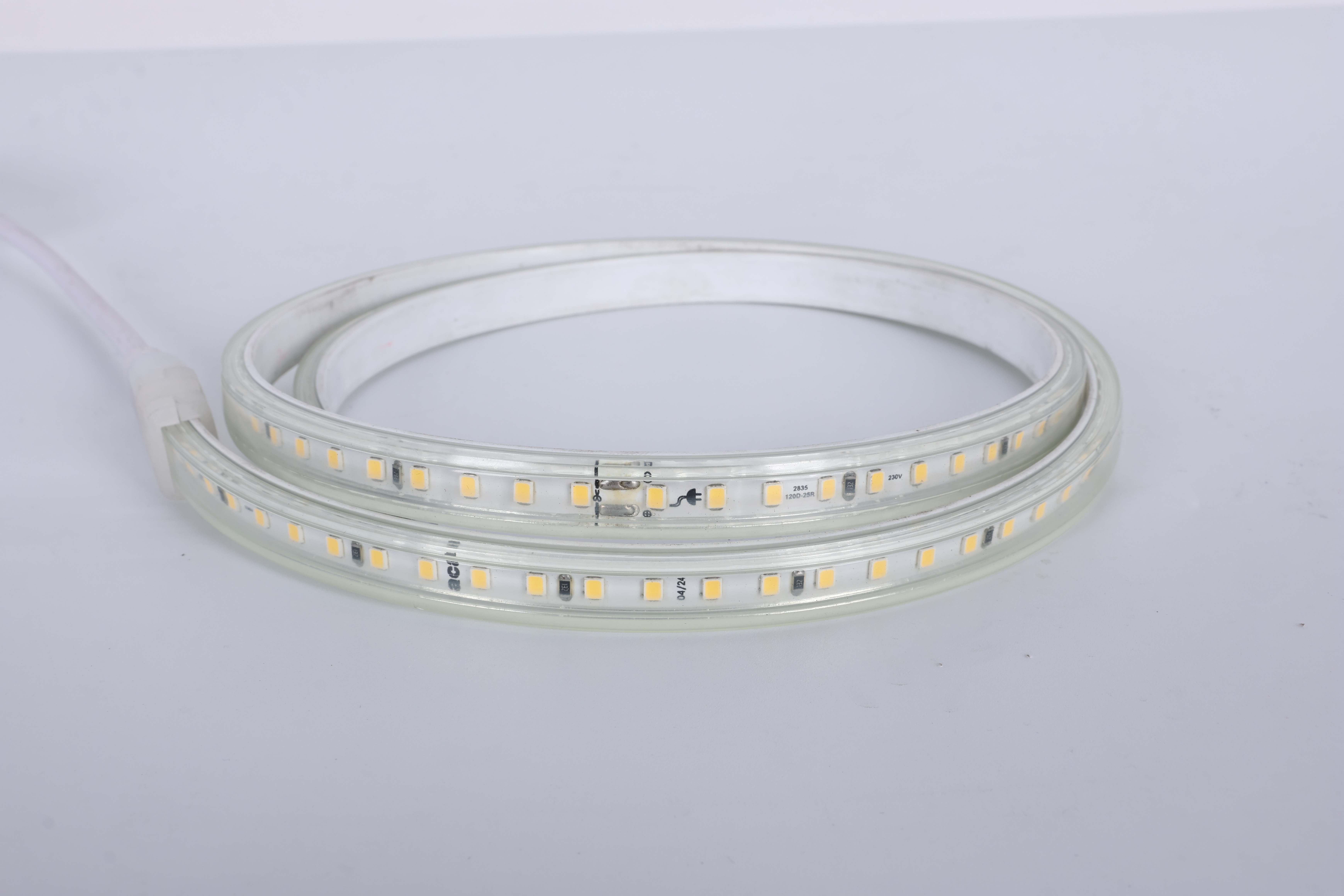

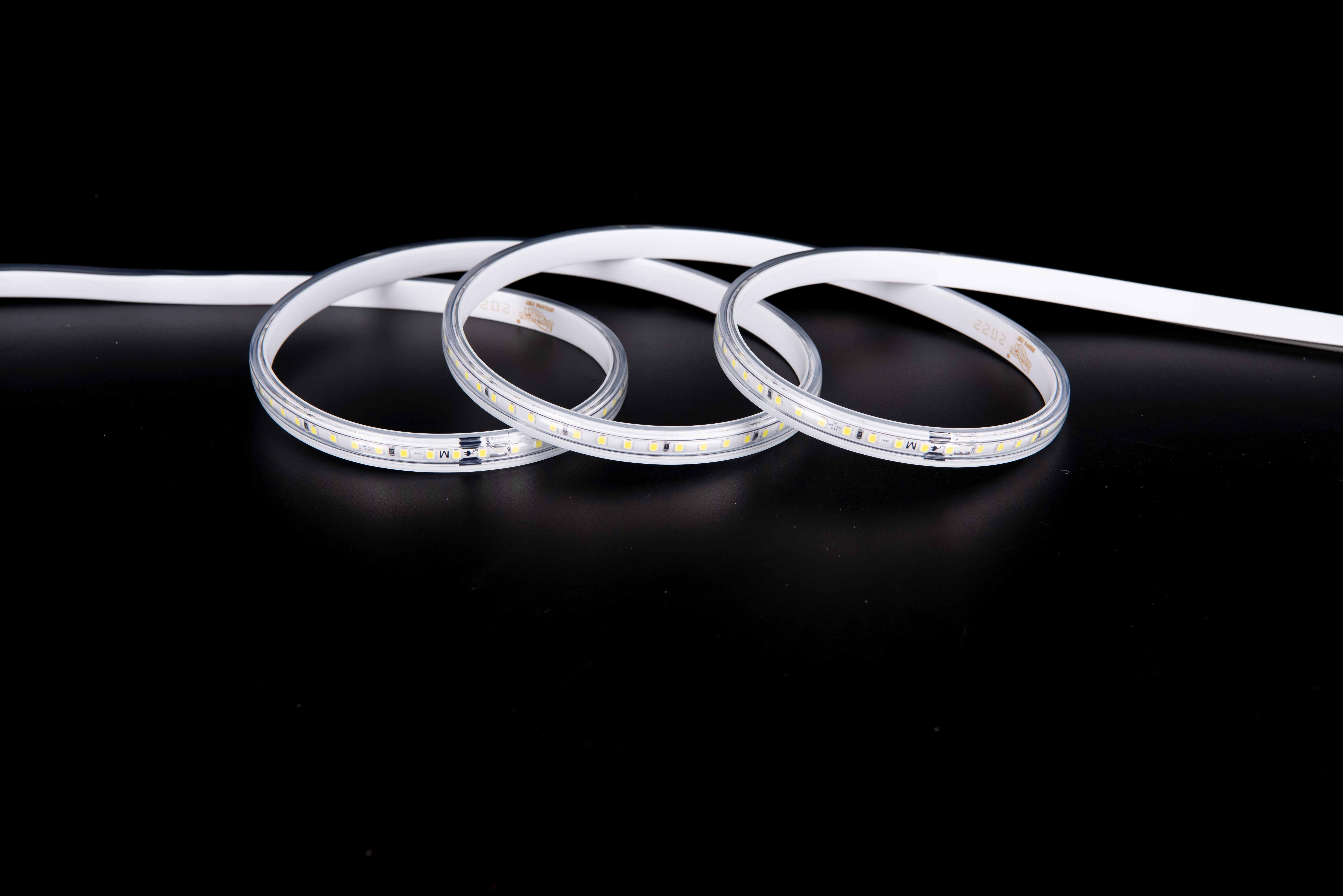

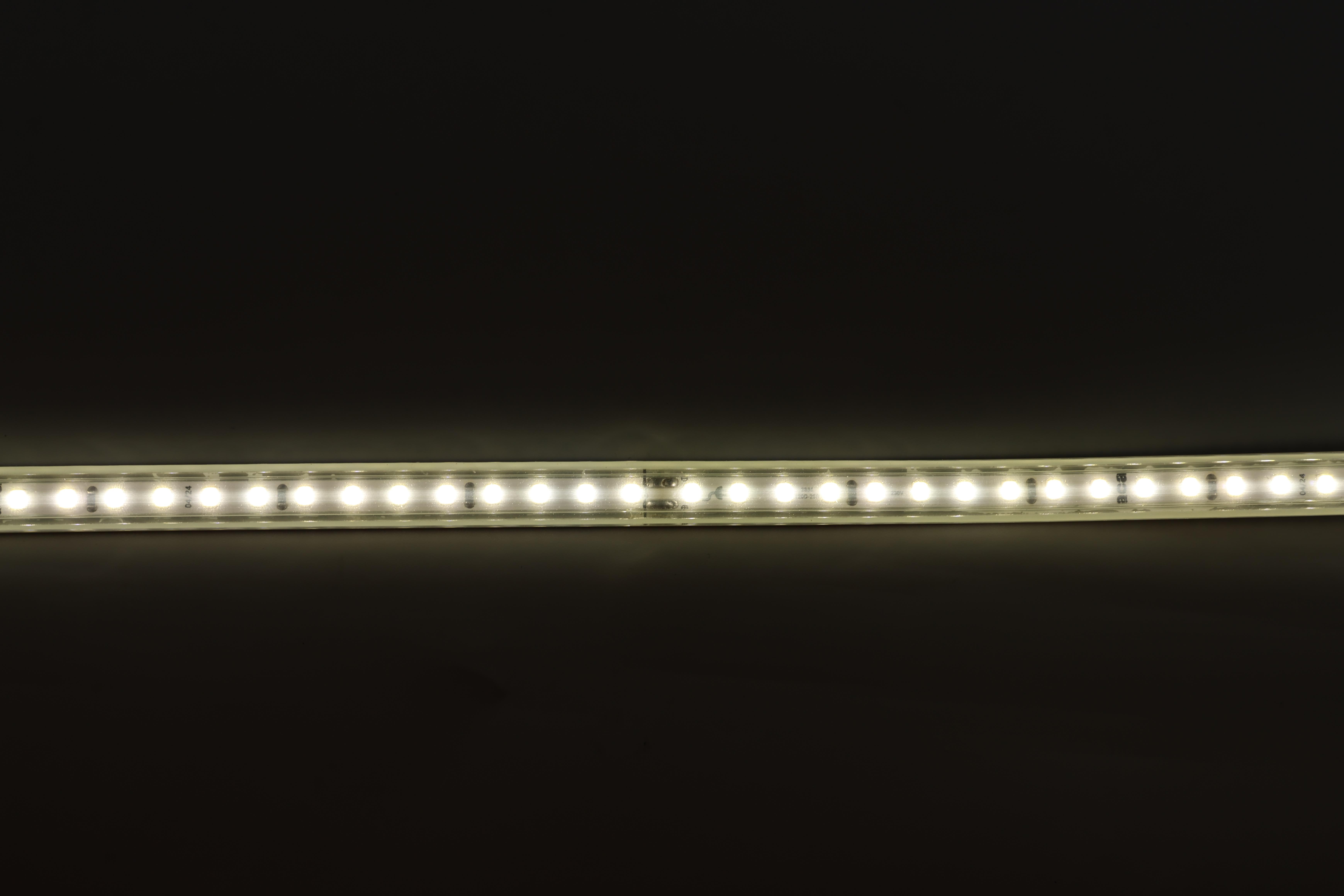

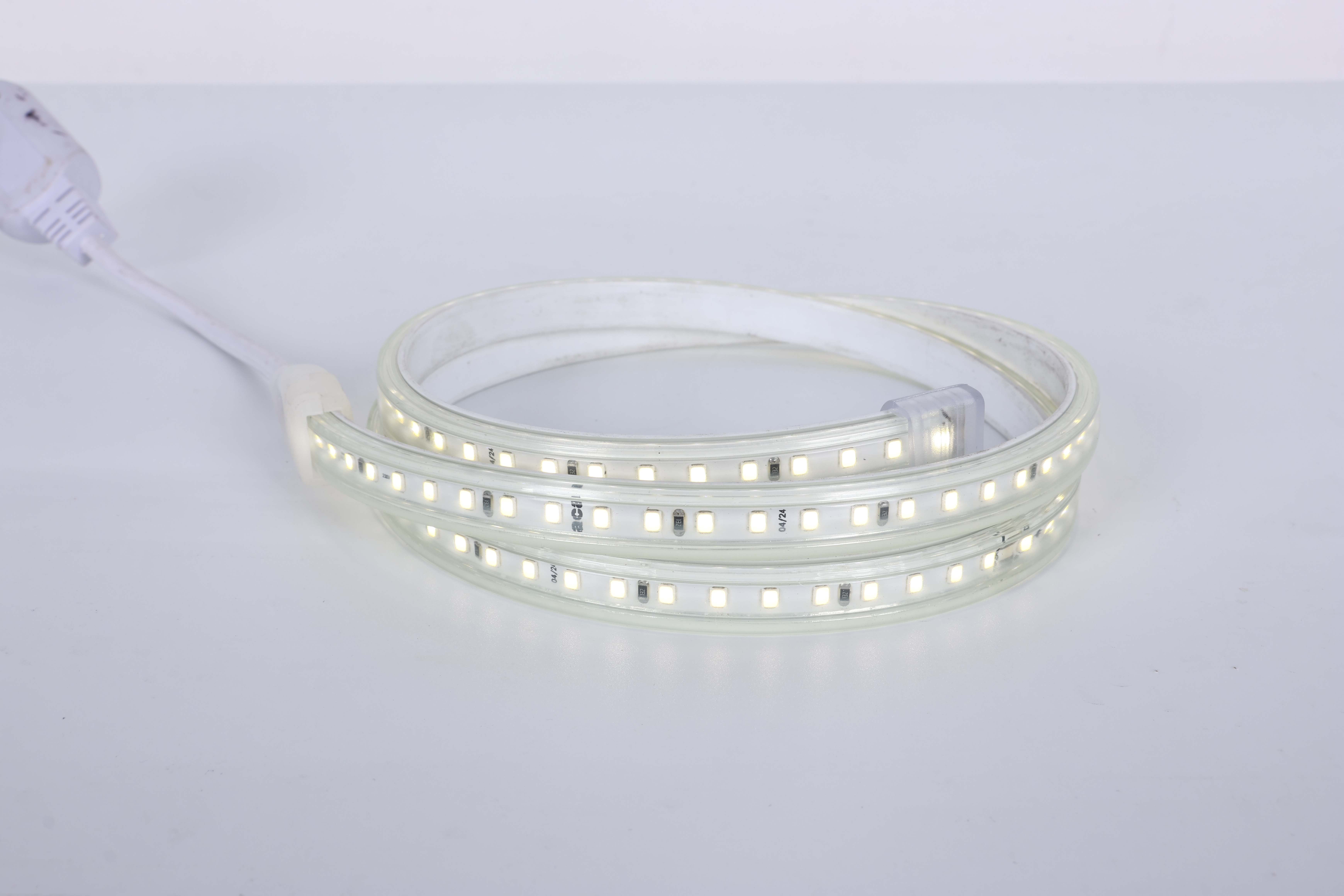

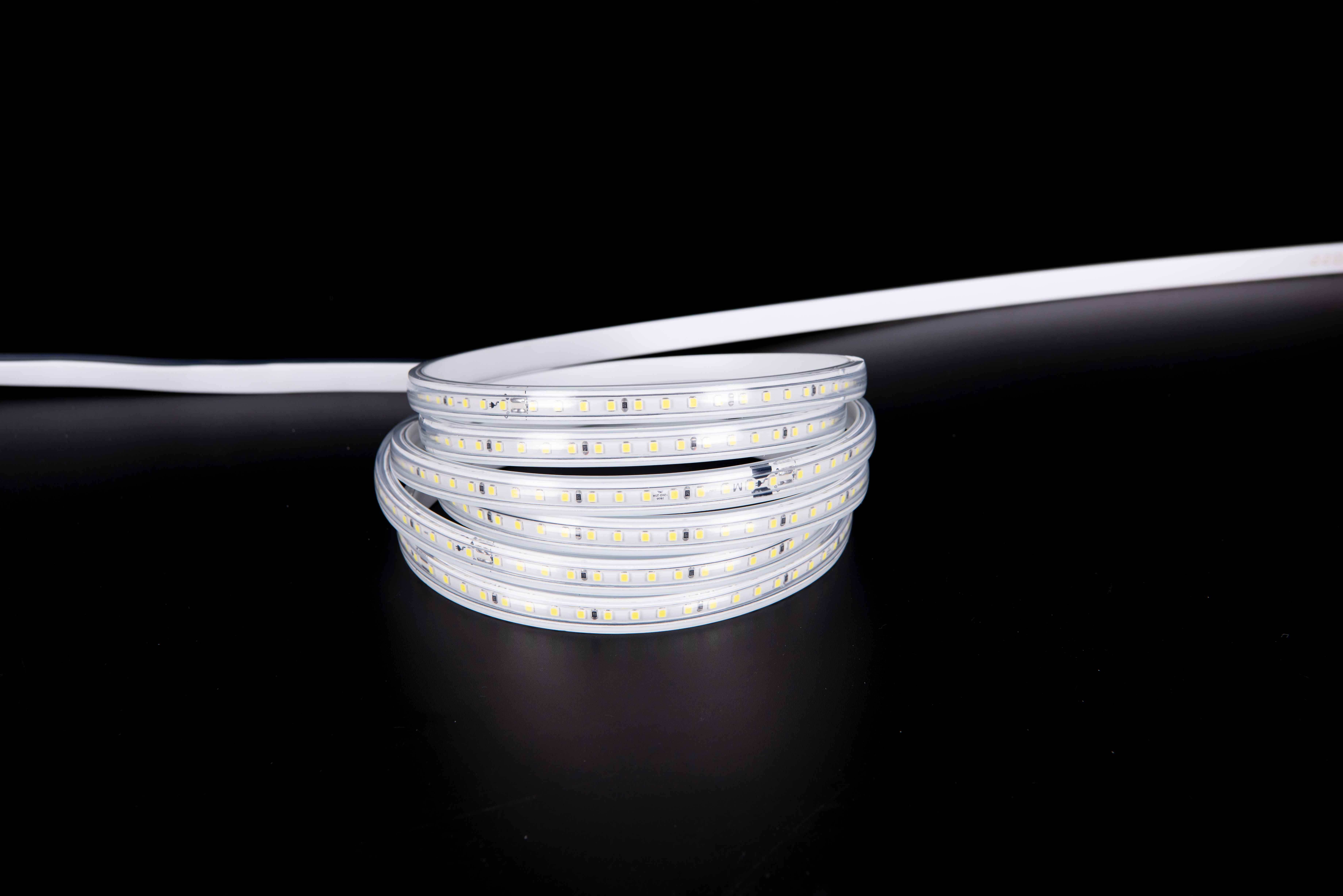

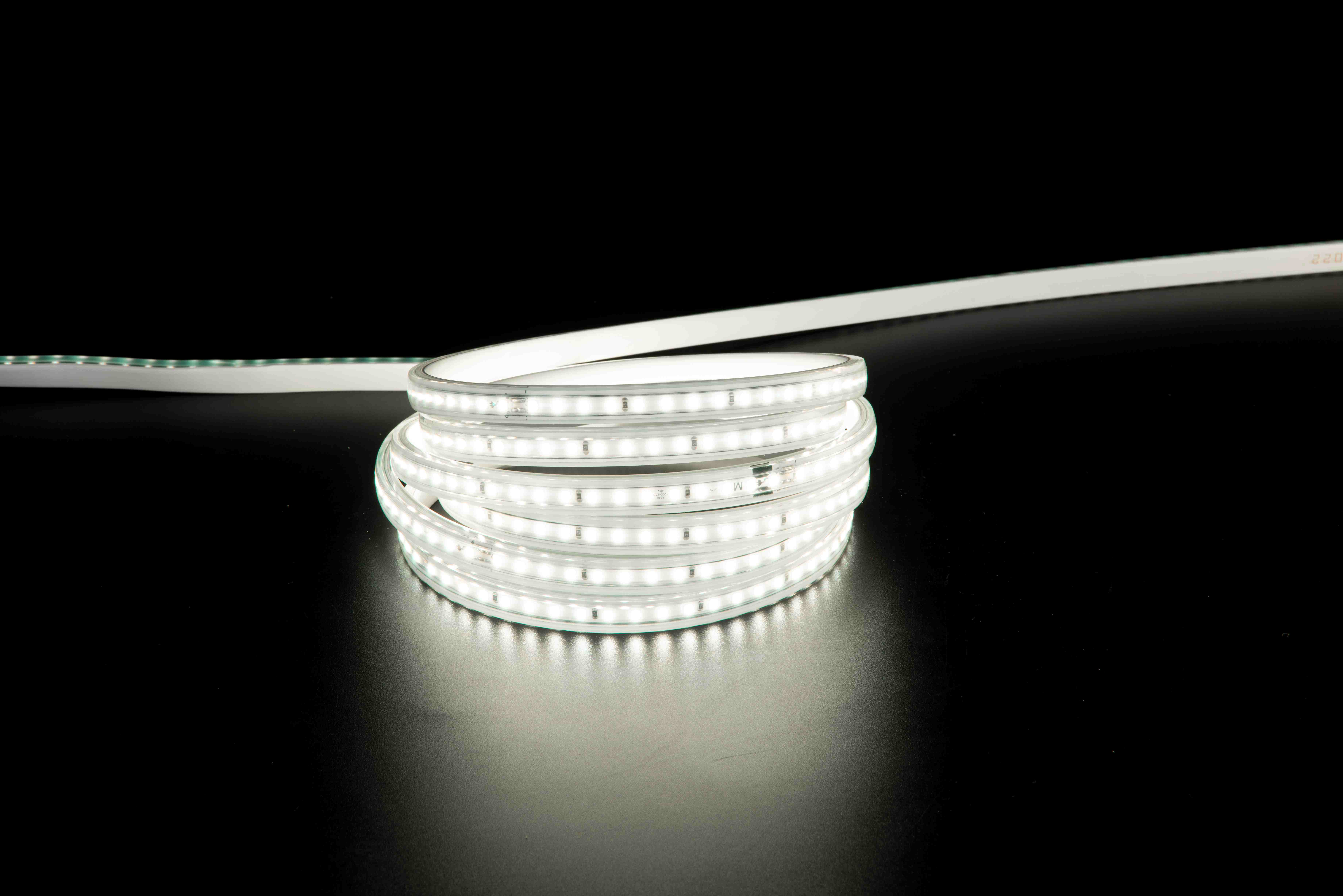

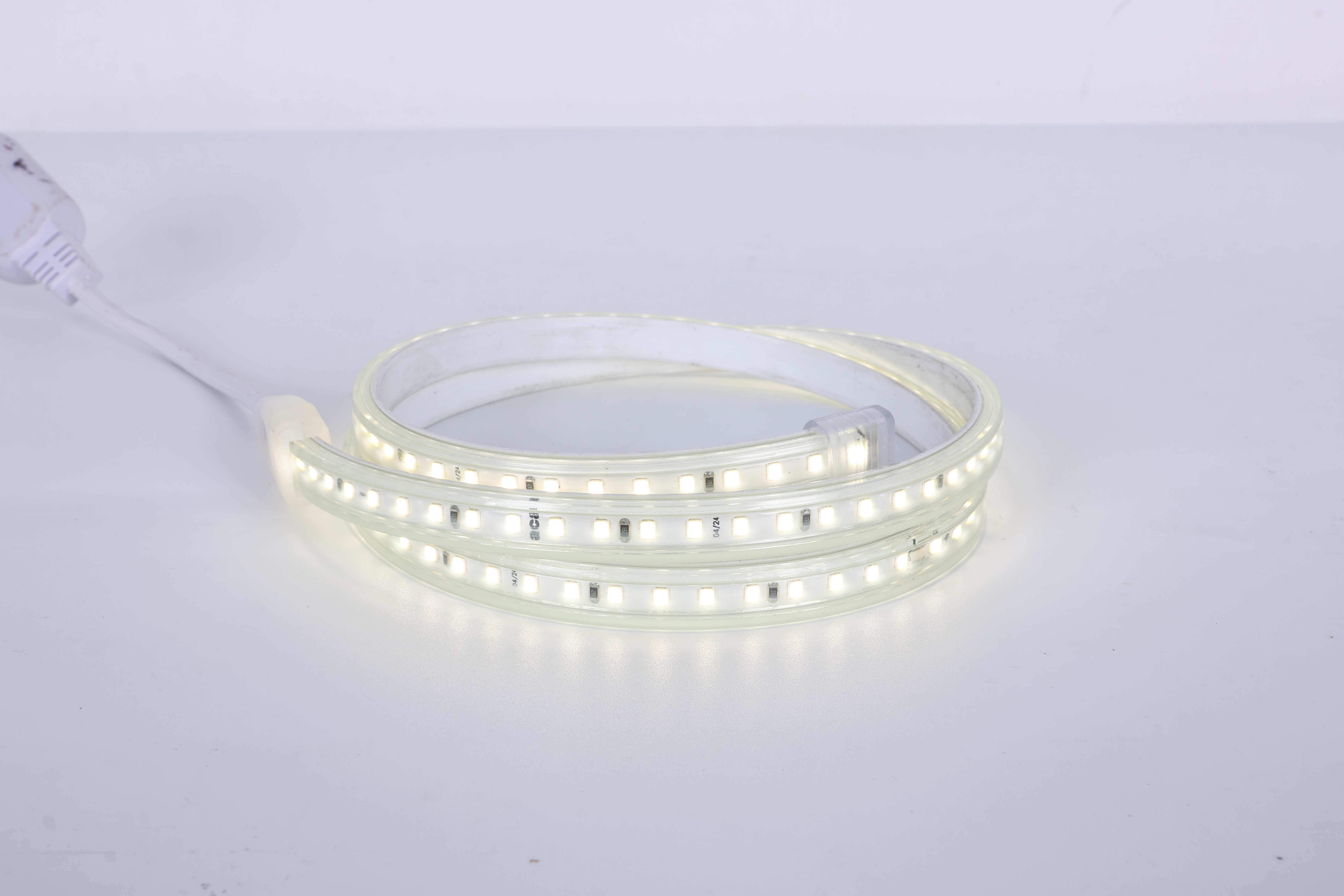

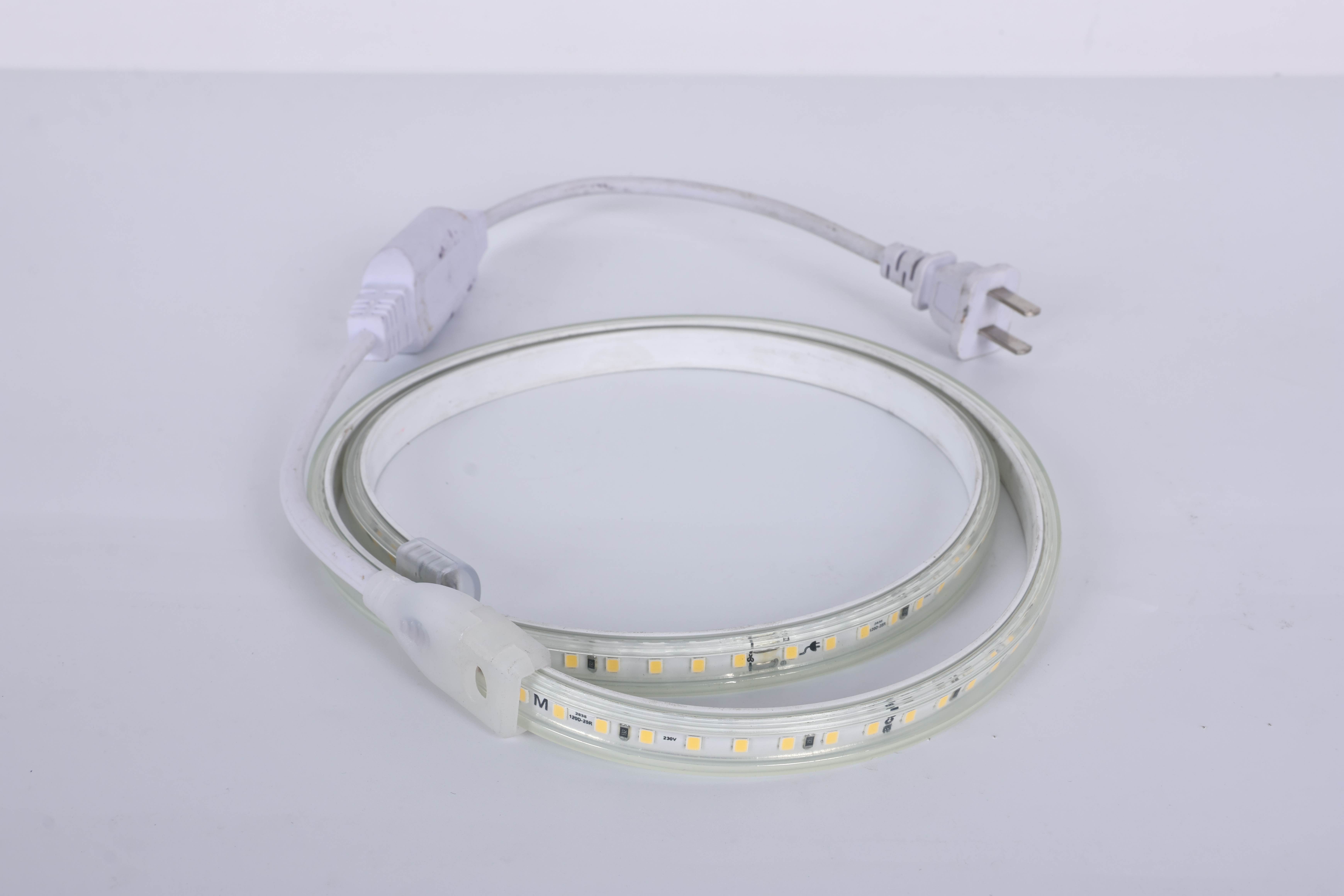

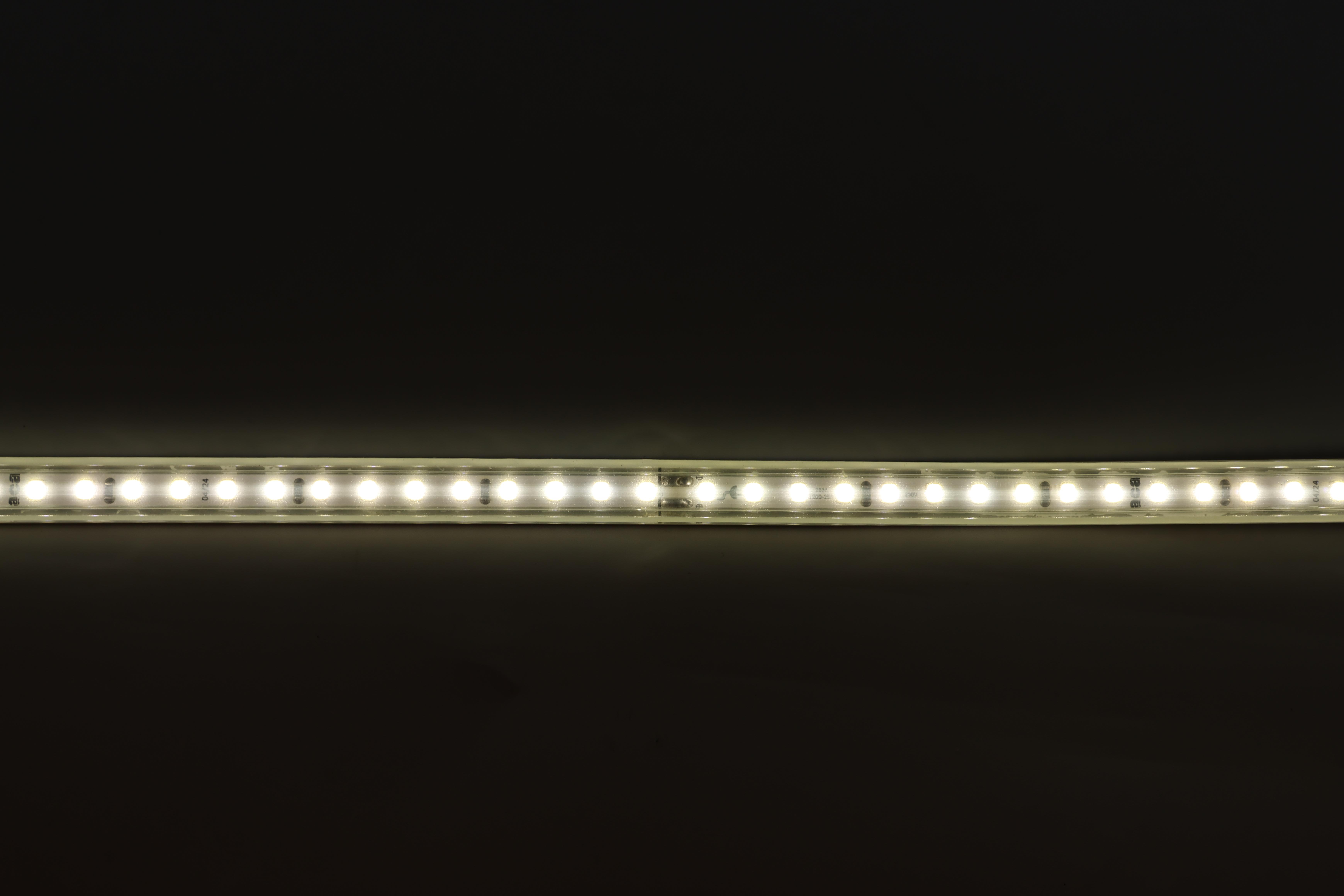

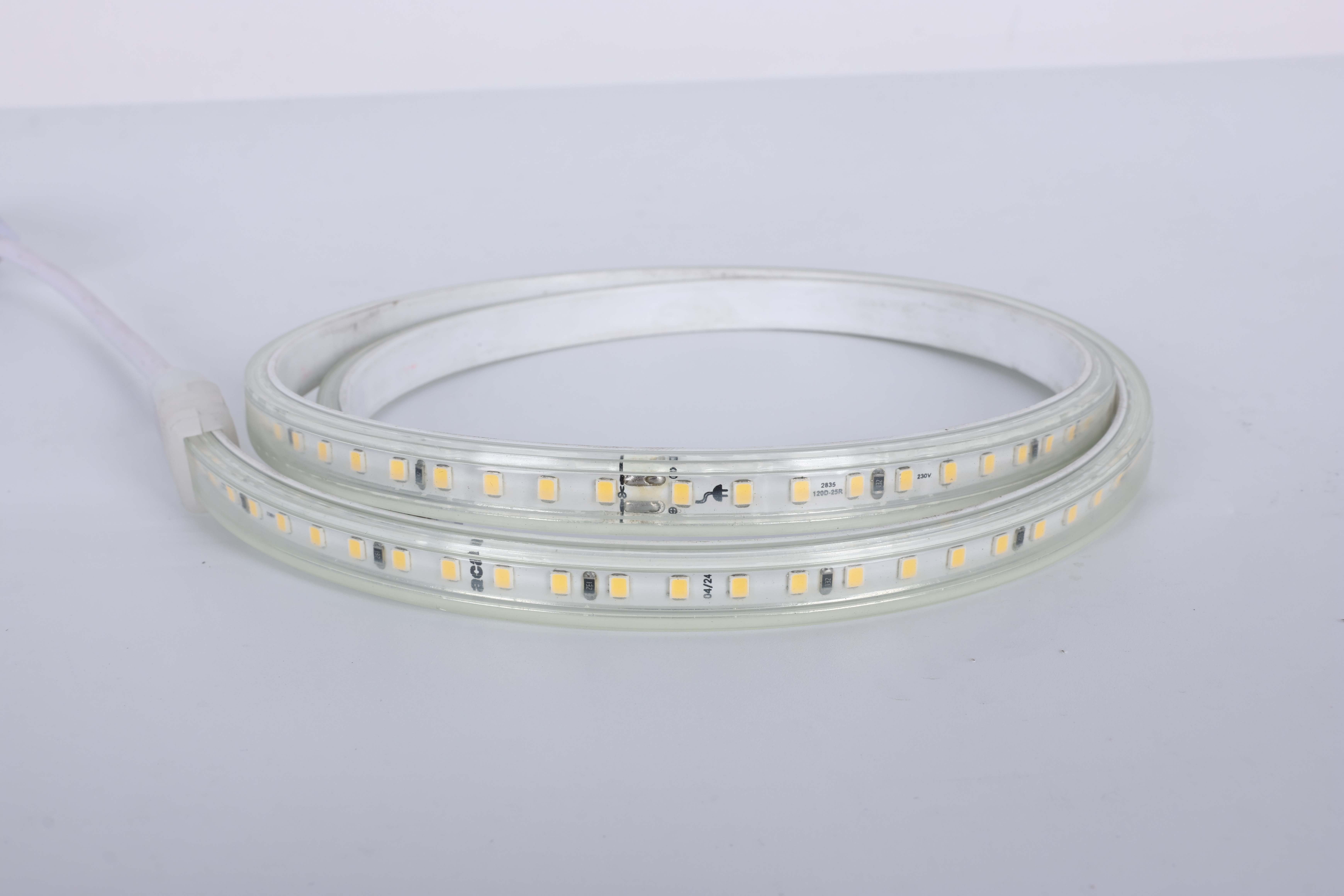

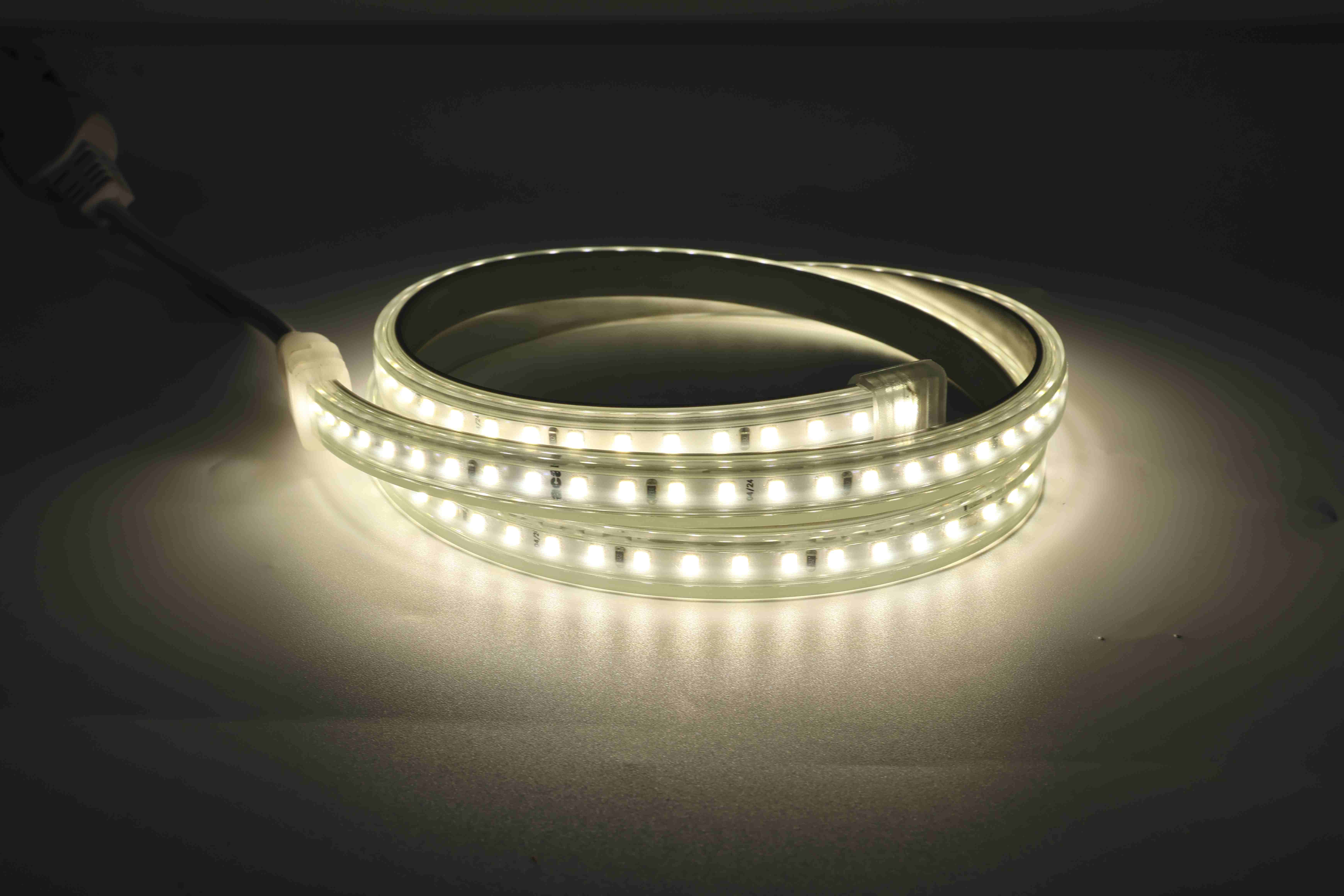

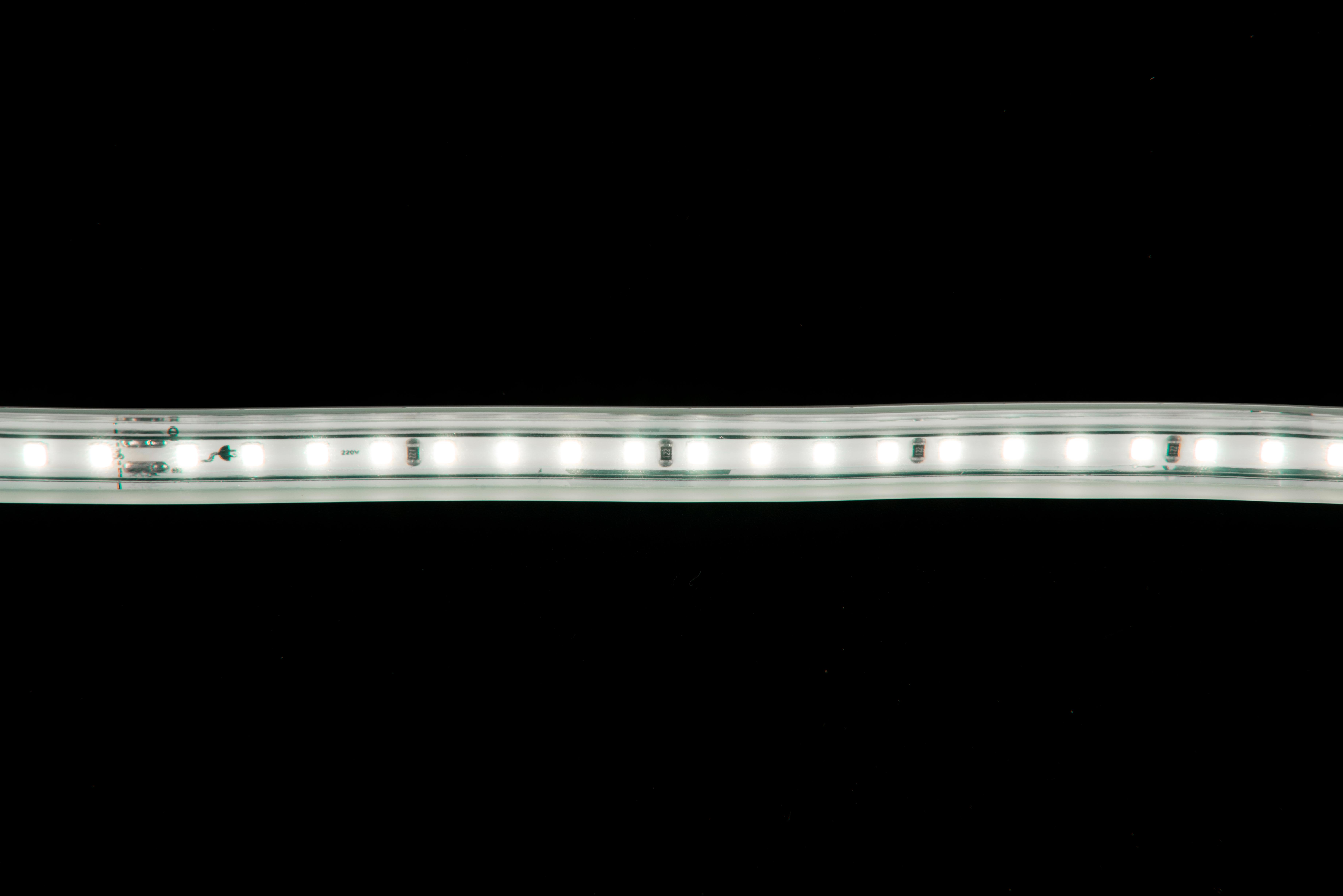

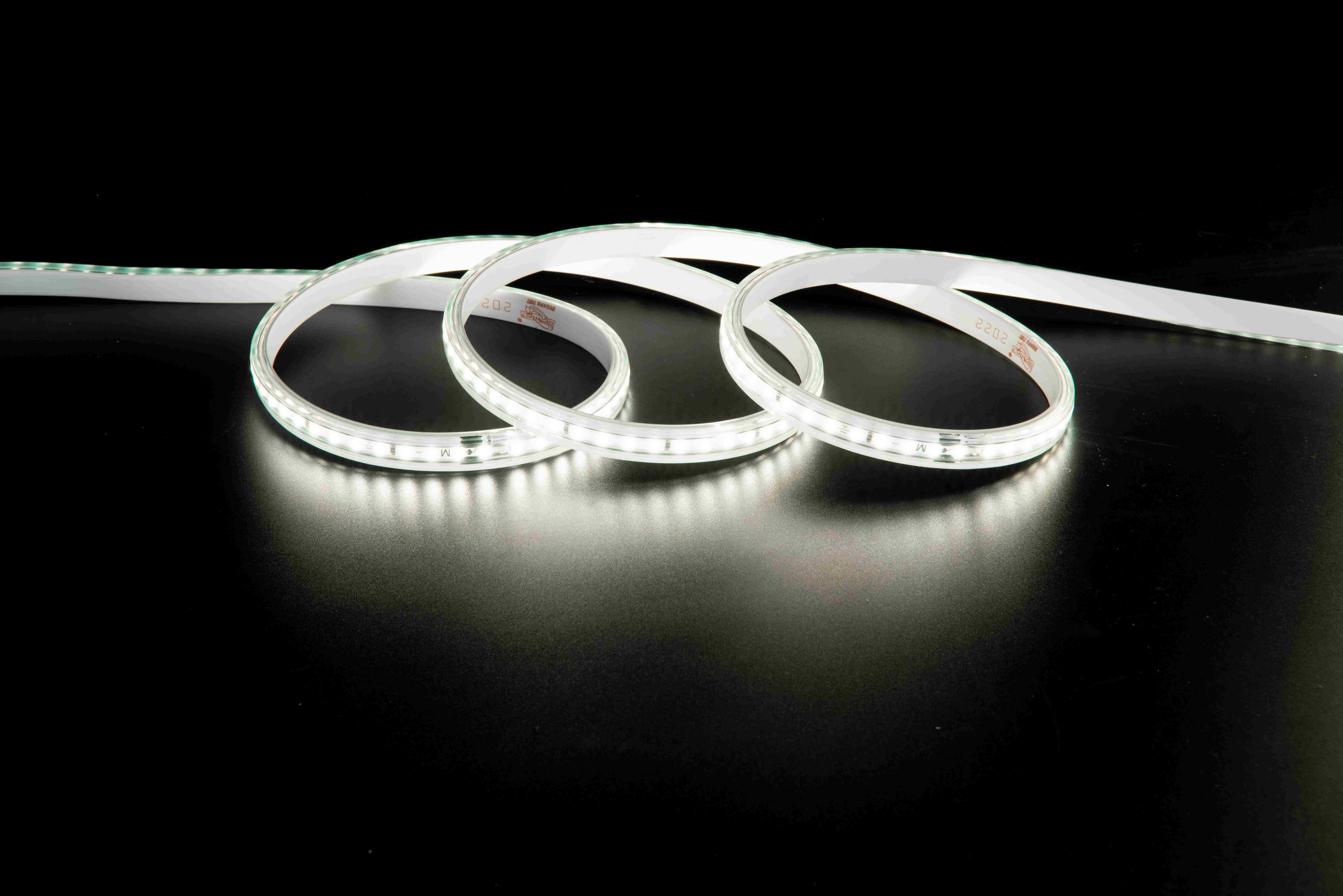

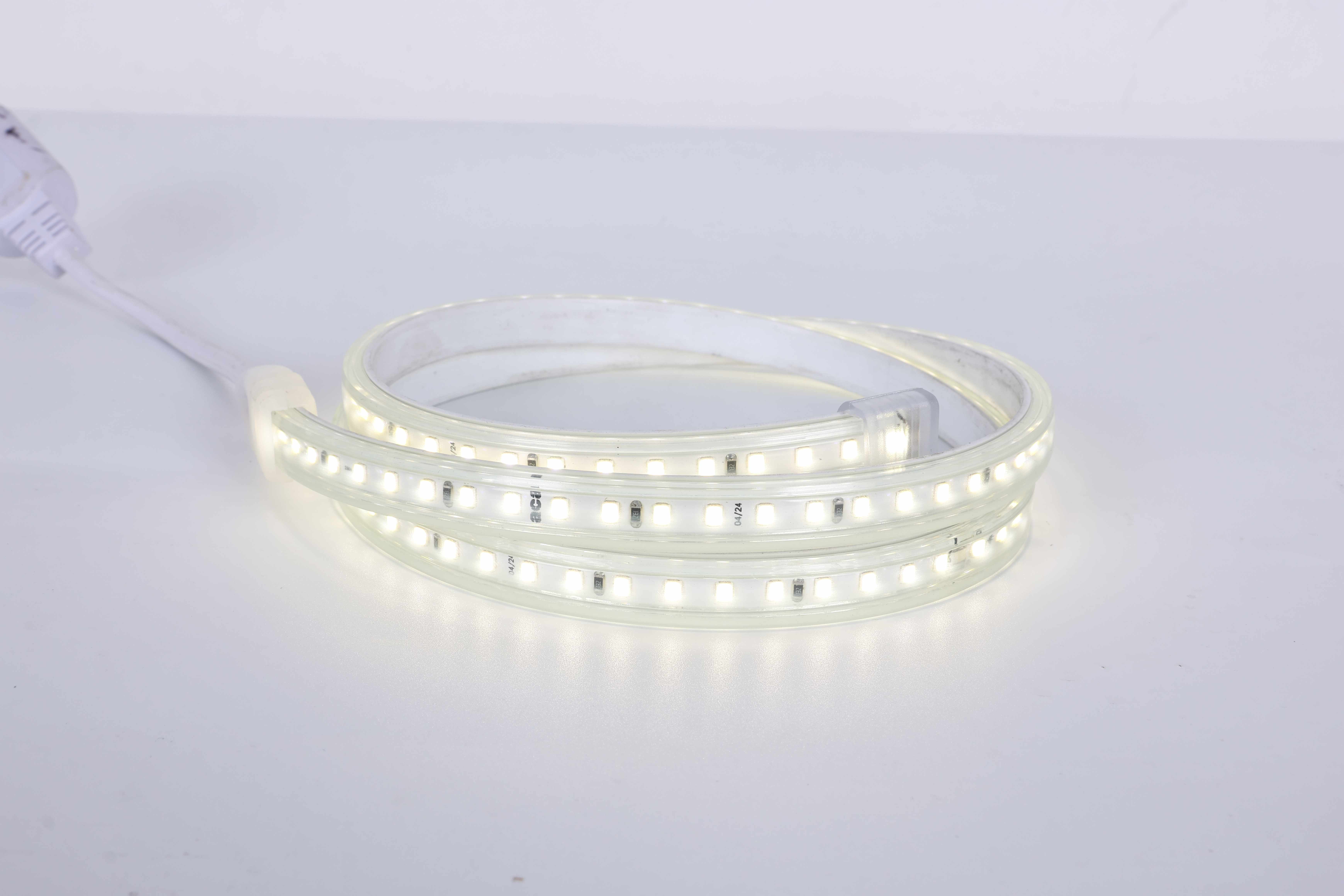

• Two white channels in one body — warm and cool wired separately in a single 11.5 × 6.5 mm profile, so one installed line replaces two and one penetration replaces two.
• 900 lumens per metre at 9 W — materially brighter than the 620 lm/m dual white model on the same body size.
• 200 mm cut interval — five times finer than the one-metre pitch on the 620 lm/m model, so runs can be matched to bay widths and gridlines.
• 100 m per reel — half the joins per metre of installation compared with the 50 m dual white model, which matters on large facades.

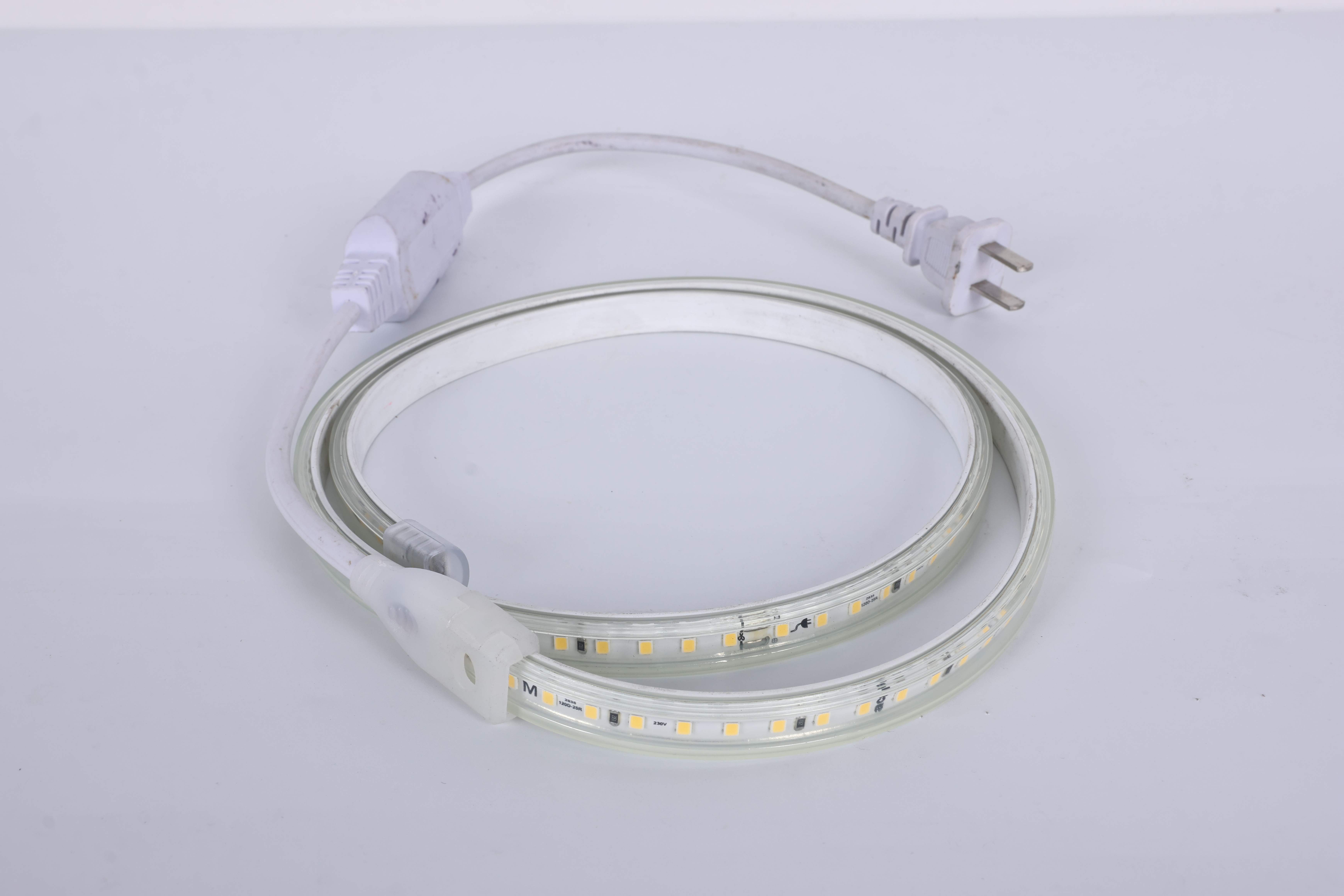

• Operates directly on AC 220–240 V mains — no transformer and no low-voltage distribution, at 0.043 A per metre.
• IP65 PVC body for sheltered outdoor use — sealed against dust and water jets; not for submersion or standing water.
• Six colour temperature options at order — the datasheet field covers 2700K to 6500K; confirm the exact warm/cool pairing with our engineering team when ordering.
• CE / CB / RoHS certified — manufacturer-held certifications supporting European and international B2B procurement.

Application Scenarios

• Hospitality terraces and outdoor dining — the core use case; warm for evening service, cooler for setup and cleanup, from one installed run.
• Retail frontages with day and evening modes — switch the shopfront character between trading hours and after hours without a second fitting.
• Hotel and resort facades — one line serves both the arrival illumination and the late-night ambience.
• Mixed-use building outlines — different colour temperatures for the commercial and residential portions of one elevation.
• Seasonal and event lighting — change the building's character for festivals or campaigns without touching the installation.
• Covered public realm and colonnades — IP65 with dual white suits spaces used differently at different times of day.

Technical Specifications

• Model No. — JNL-W-220V-2835-0120-08-S1XX
• Item No. — 106650028
• LED type — 2835 SMD (18 V, 40–45 lm)

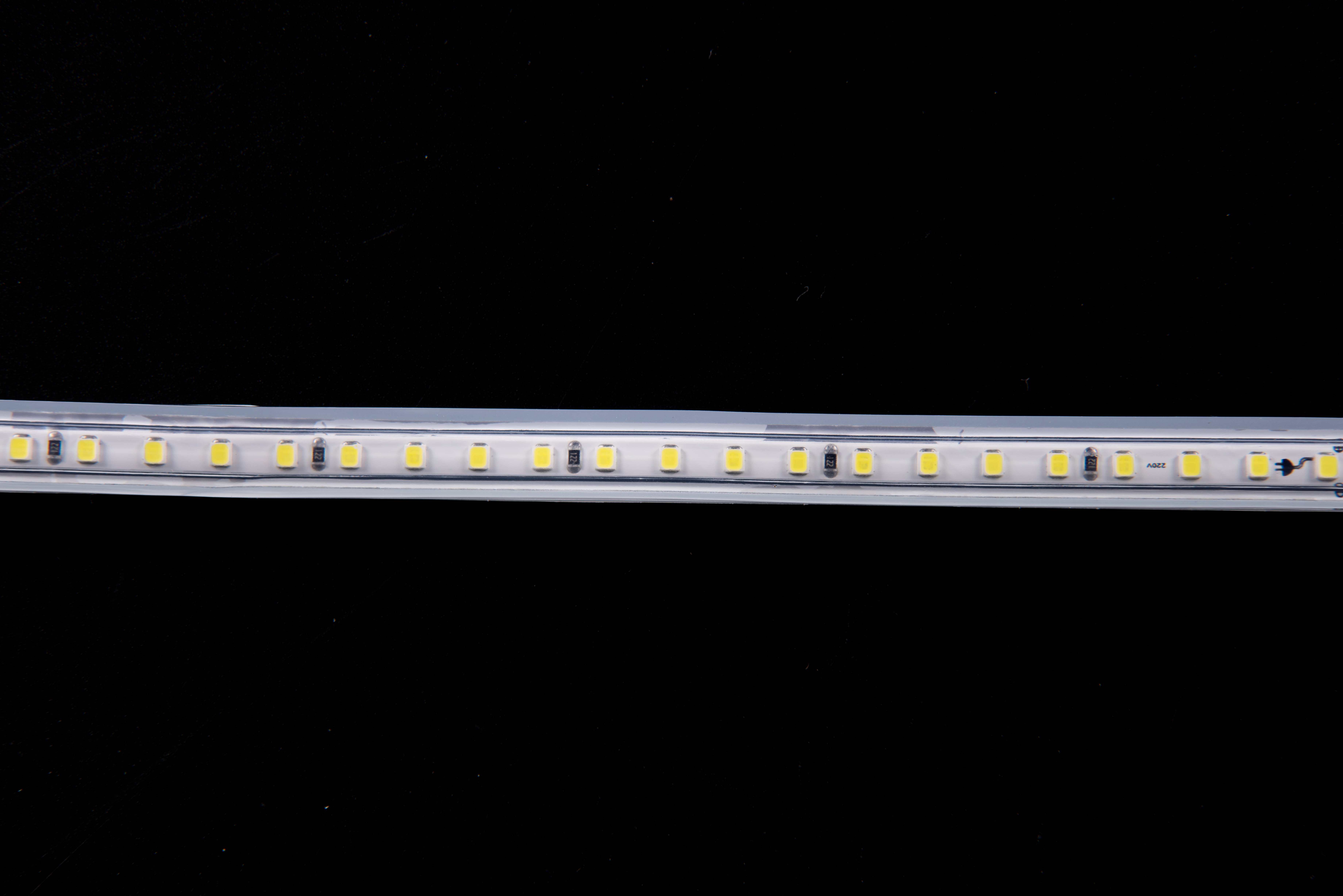

• LED quantity — 120 PCS/m (dual white)
• Rated voltage — AC 220 V
• Input voltage range — AC 200–240 V
• Rated frequency — 50/60 Hz
• Input frequency range — 47–63 Hz
• Rated power — 9 W/m ± 10%
• Input current — 0.043 A @ 1m
• Power factor — > 0.9
• Luminous flux — 900 lm/m
• Colour temperature — Dual white; the datasheet field carries the standard 2700–6500 K template entry, so confirm the exact warm/cool pairing with our engineering team at order
• Colour rendering index — Ra 70
• SDCM — ≤ 7
• Beam angle — 120°
• Lumen maintenance — L80B20 @ 20,000 h
• Energy efficiency class — F
• Ingress protection — IP65 (sheltered outdoor use; not for submersion)

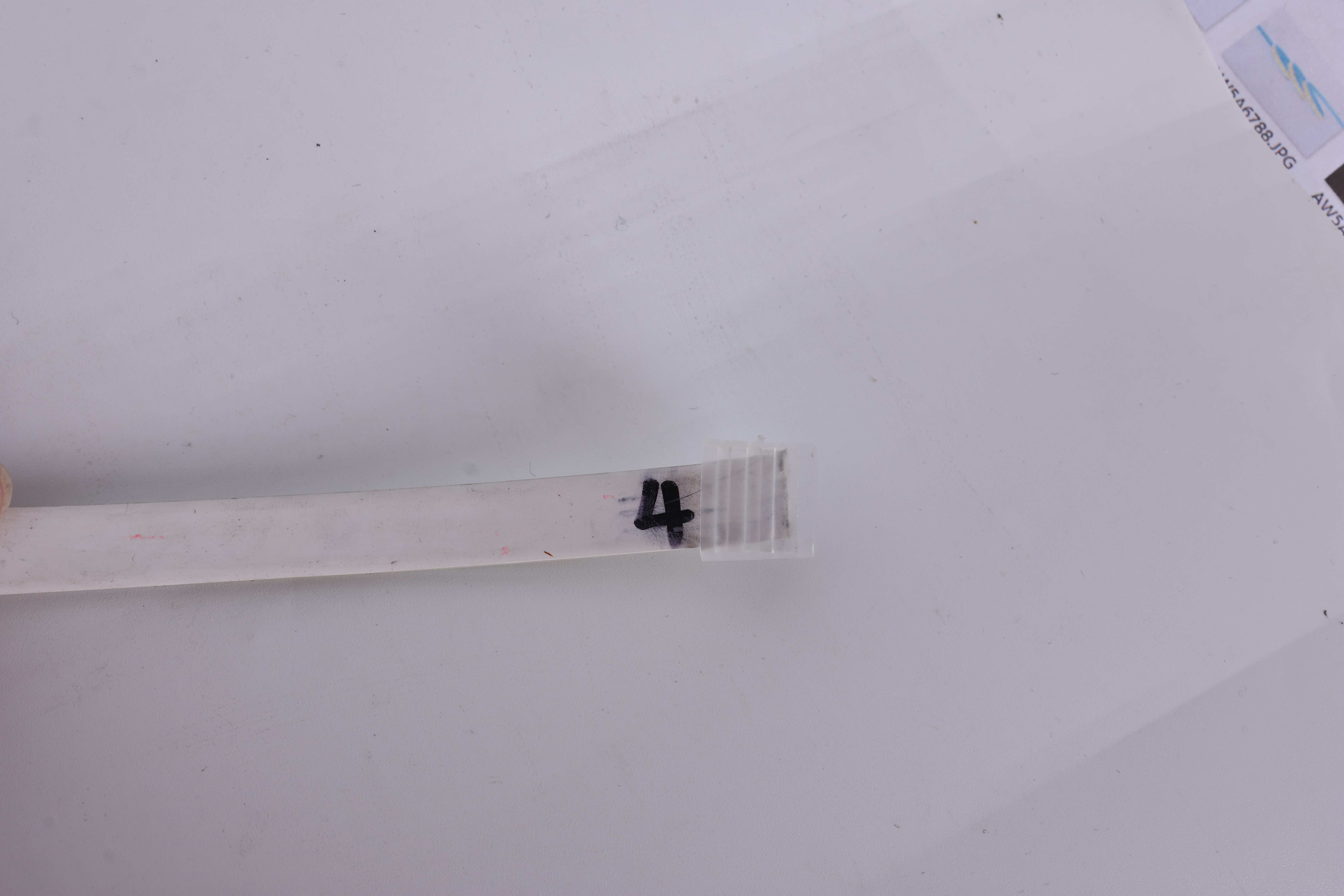

• Outline dimensions — W11.5 × H6.5 ± 0.5 mm
• Surface material — PVC

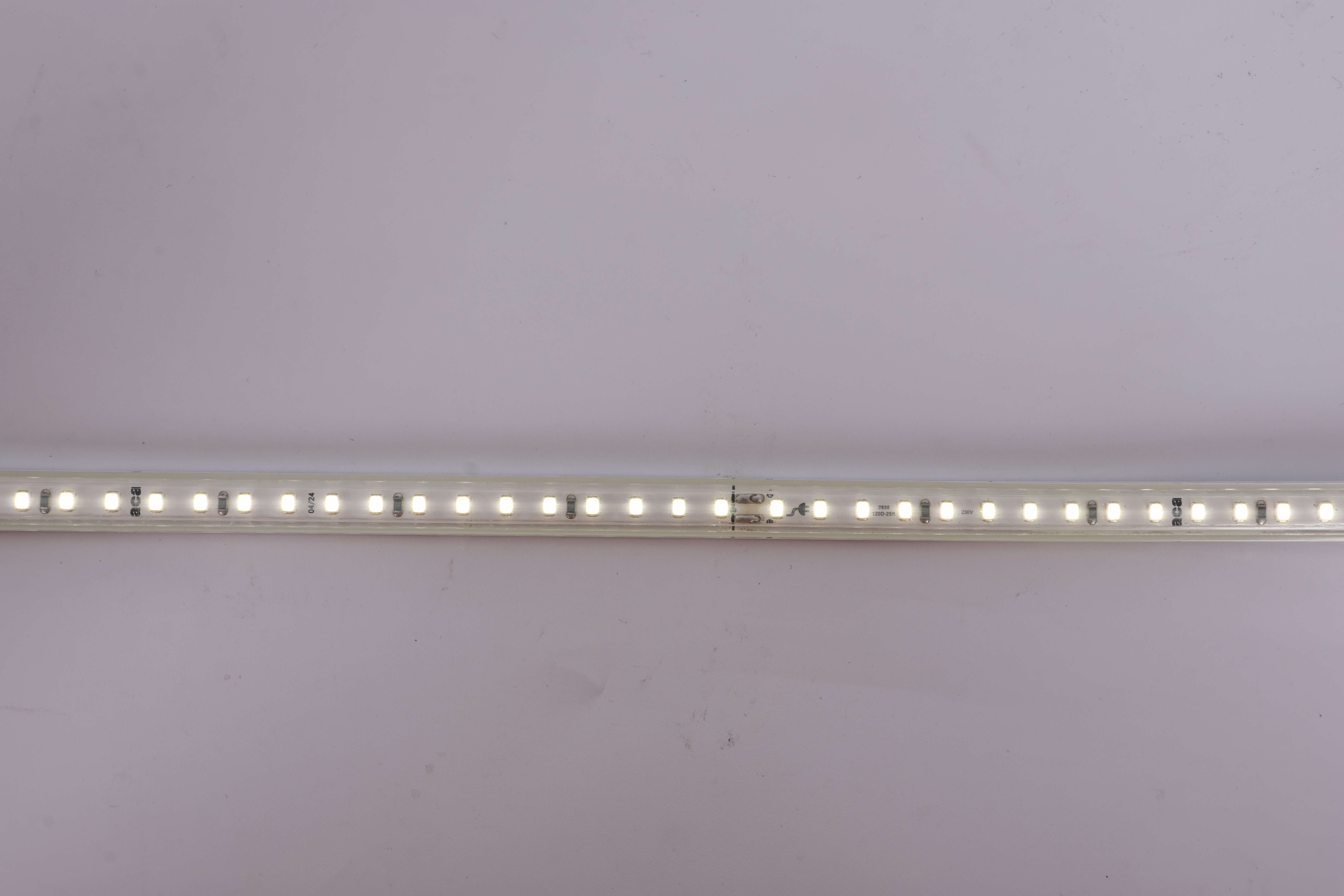

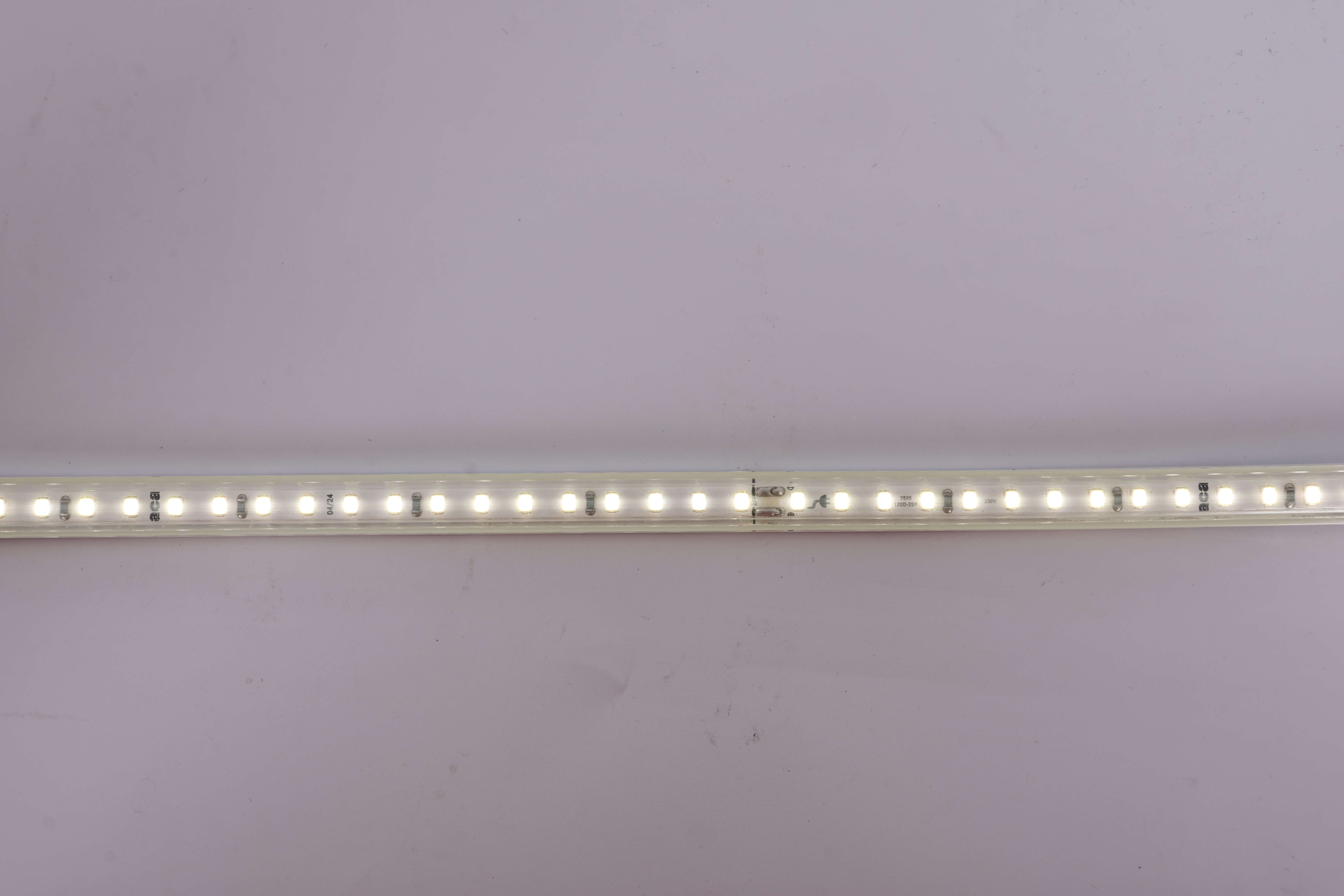

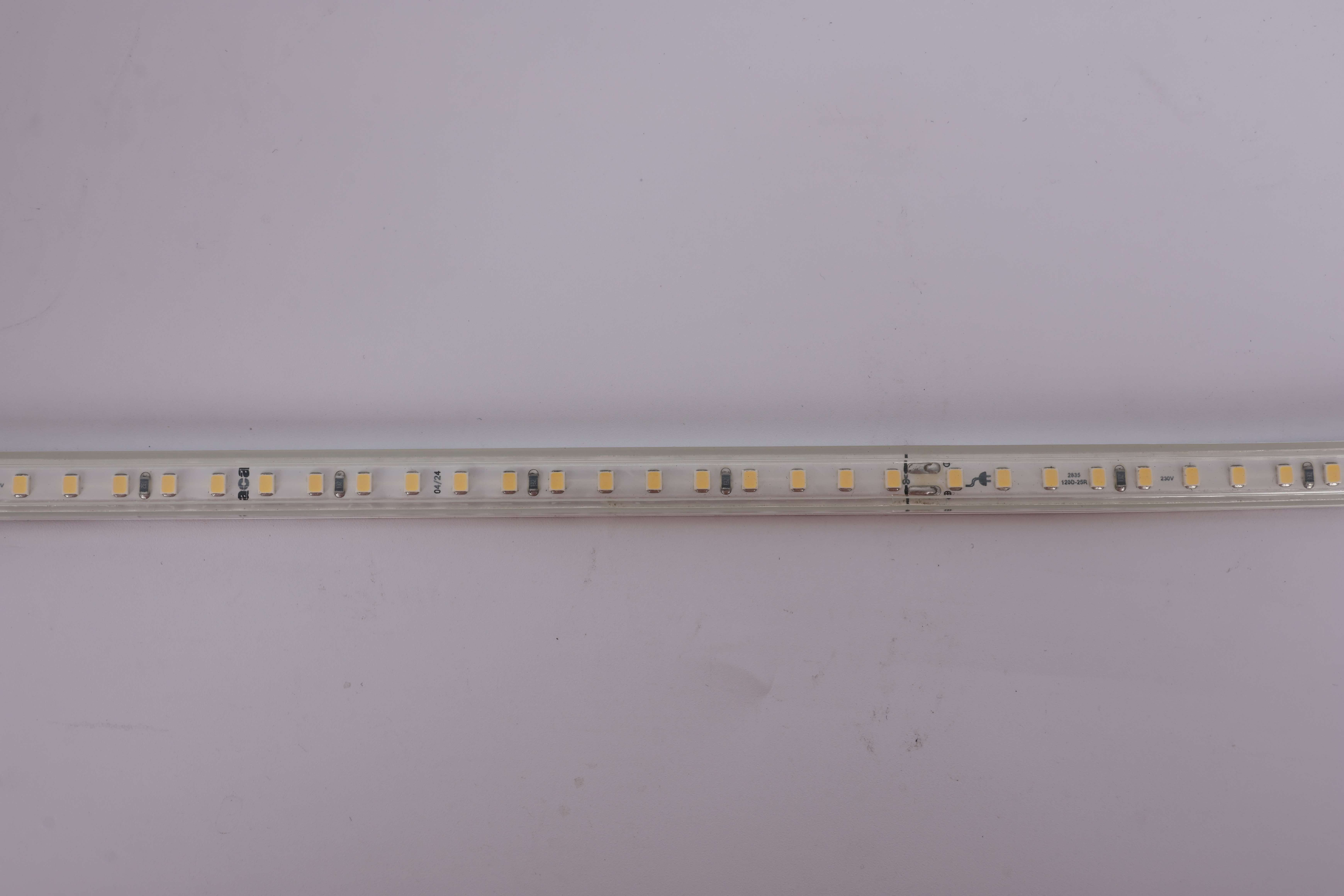

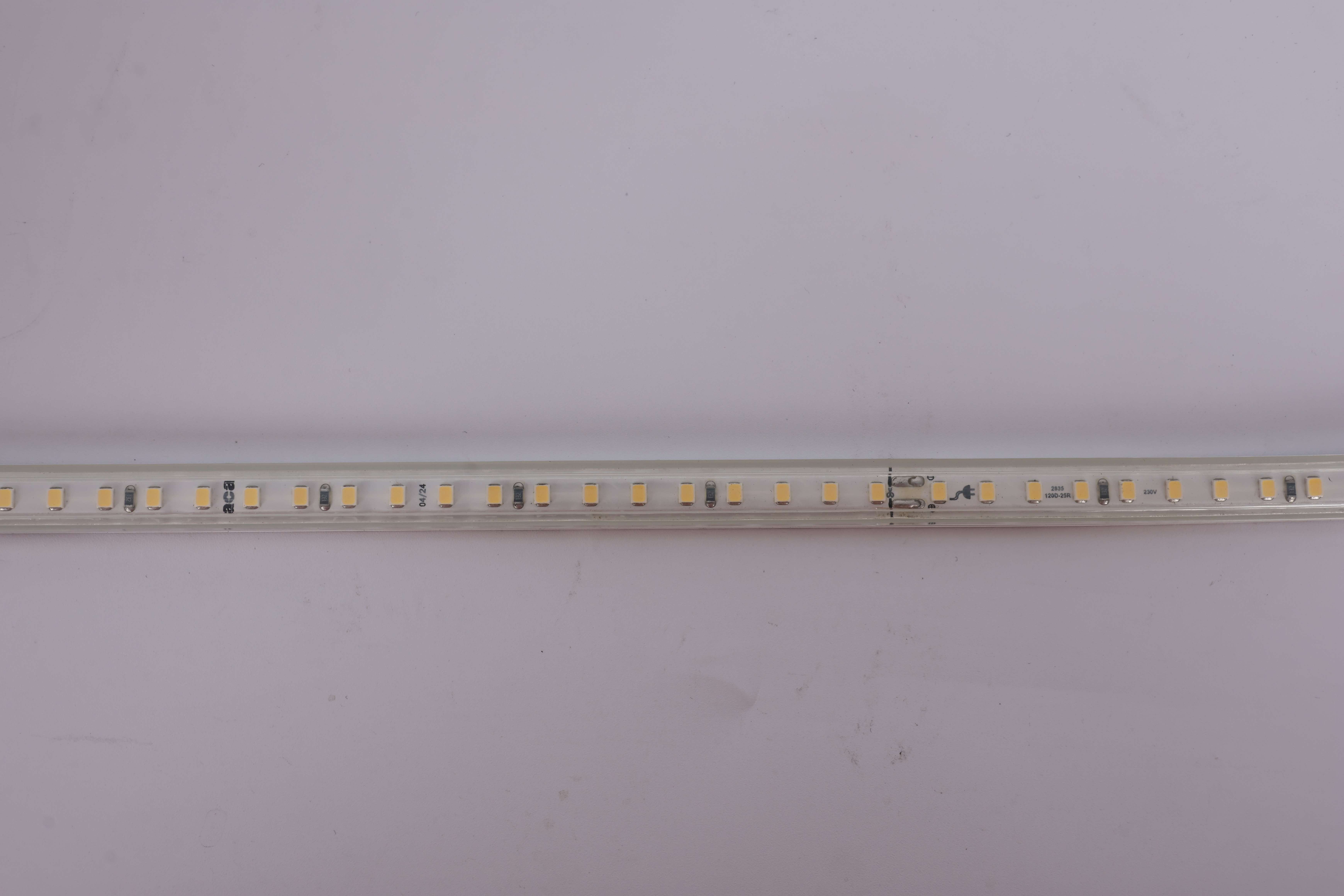

• Cut length — 200 mm
• Mounting method — Fixed with buckle and screws
• Dimming method — Turn on the power and it lights up; warm and cool channels switch independently
• Switching cycles — 15,000 times
• Operating temperature — -25°C to +45°C
• Storage temperature — -40°C to +60°C
• Relative humidity — 10–90%
• MTBF — 20,000 h
• Mains compatibility — AC 200–240 V, 50/60 Hz; not suitable for 120 V residential supply
• Packing — Reel + Carton

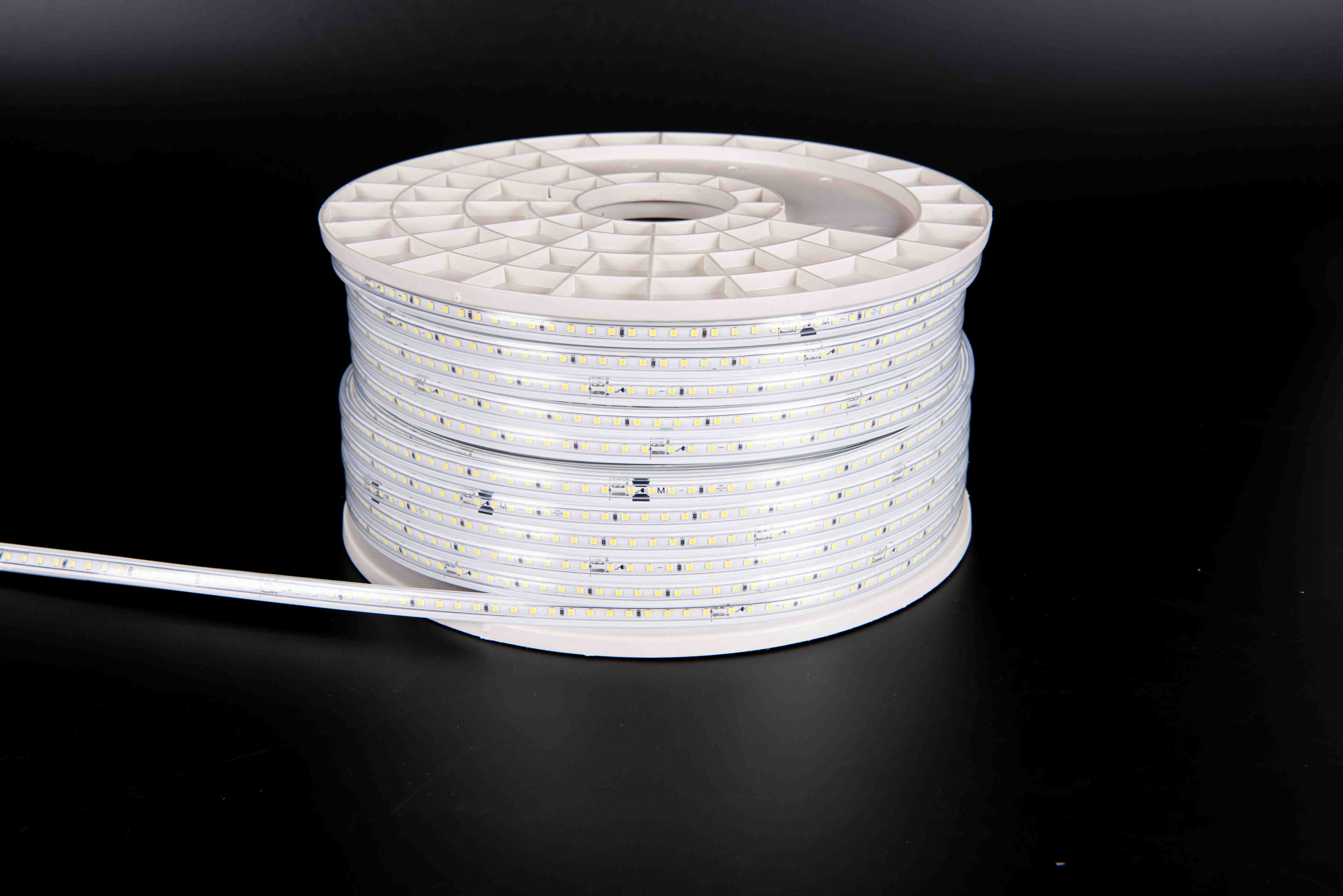

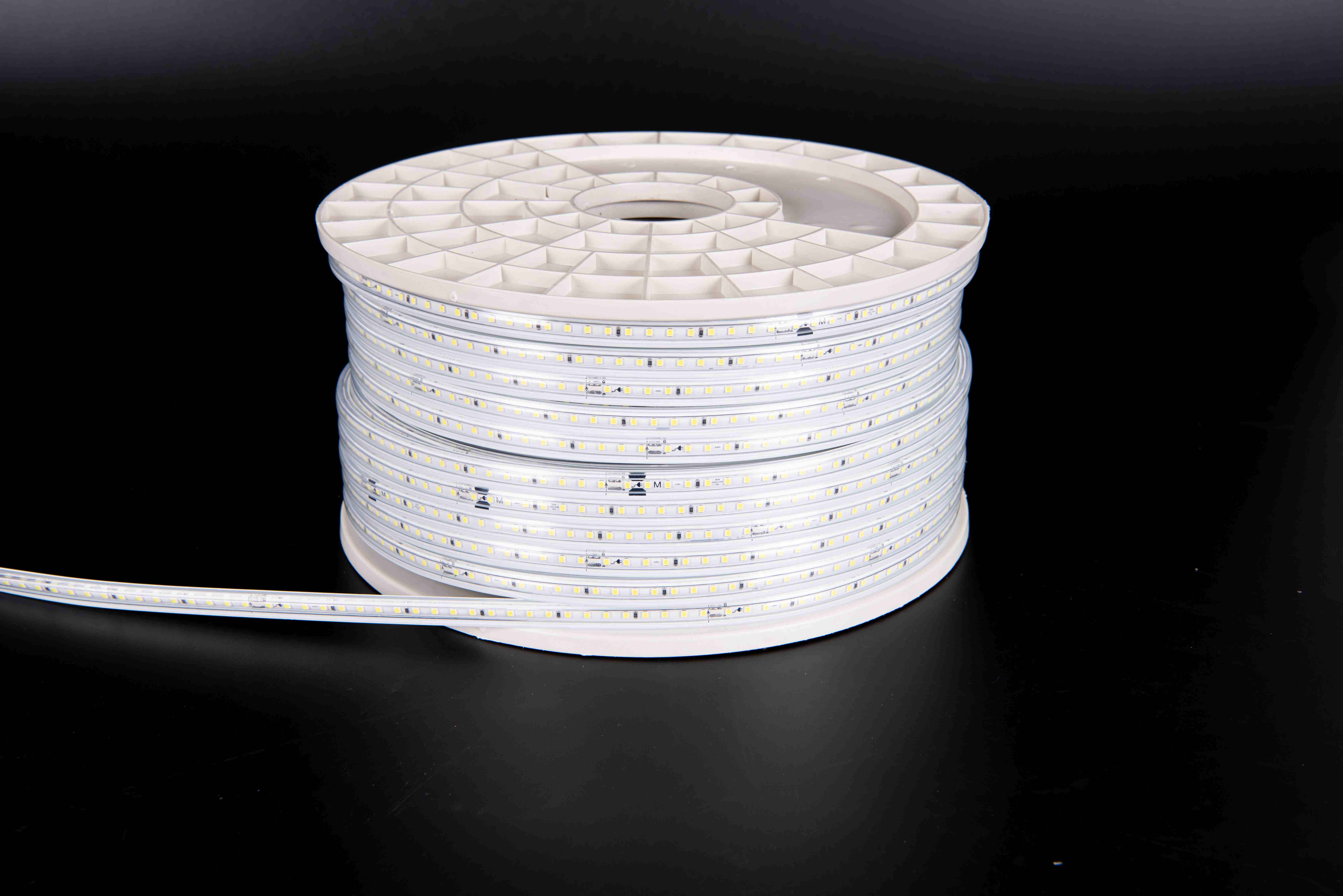

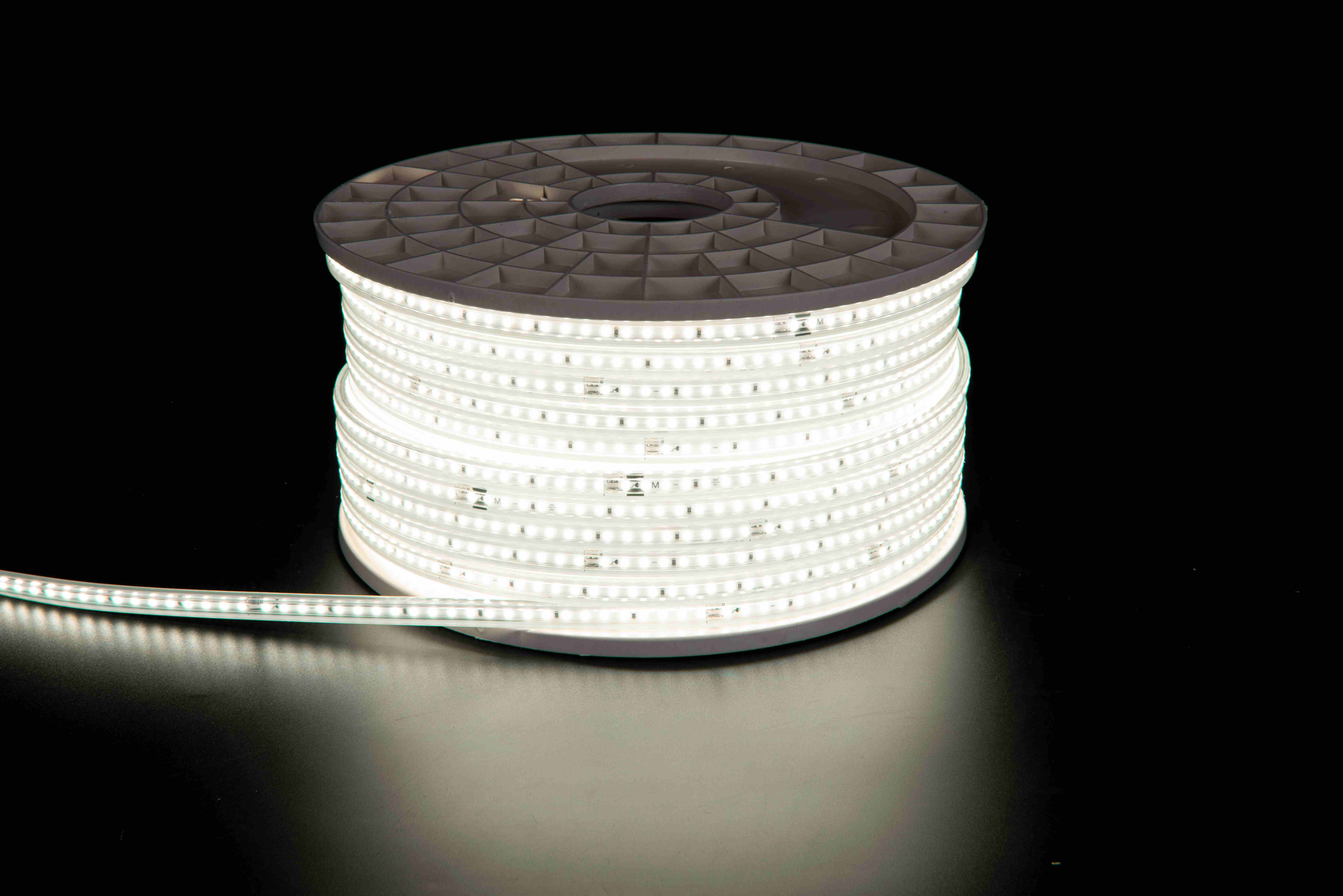

• Packing quantity — 100 m/reel
• Certification — CE / CB / RoHS
