Key Features

• 12.5mm cut interval — the finest in the D series – Enables length matching to a level of precision no other model in the range achieves, suited to very short, tightly measured compartments.
• 640 LEDs per metre — highest density in the D series – The density required to support the 12.5mm cut pitch while maintaining full circuit function at every cut point.
• 1400 lm/m from 13.0 W/m – Output matching the best figures elsewhere in the 8mm family, despite the constrained run length this density implies.

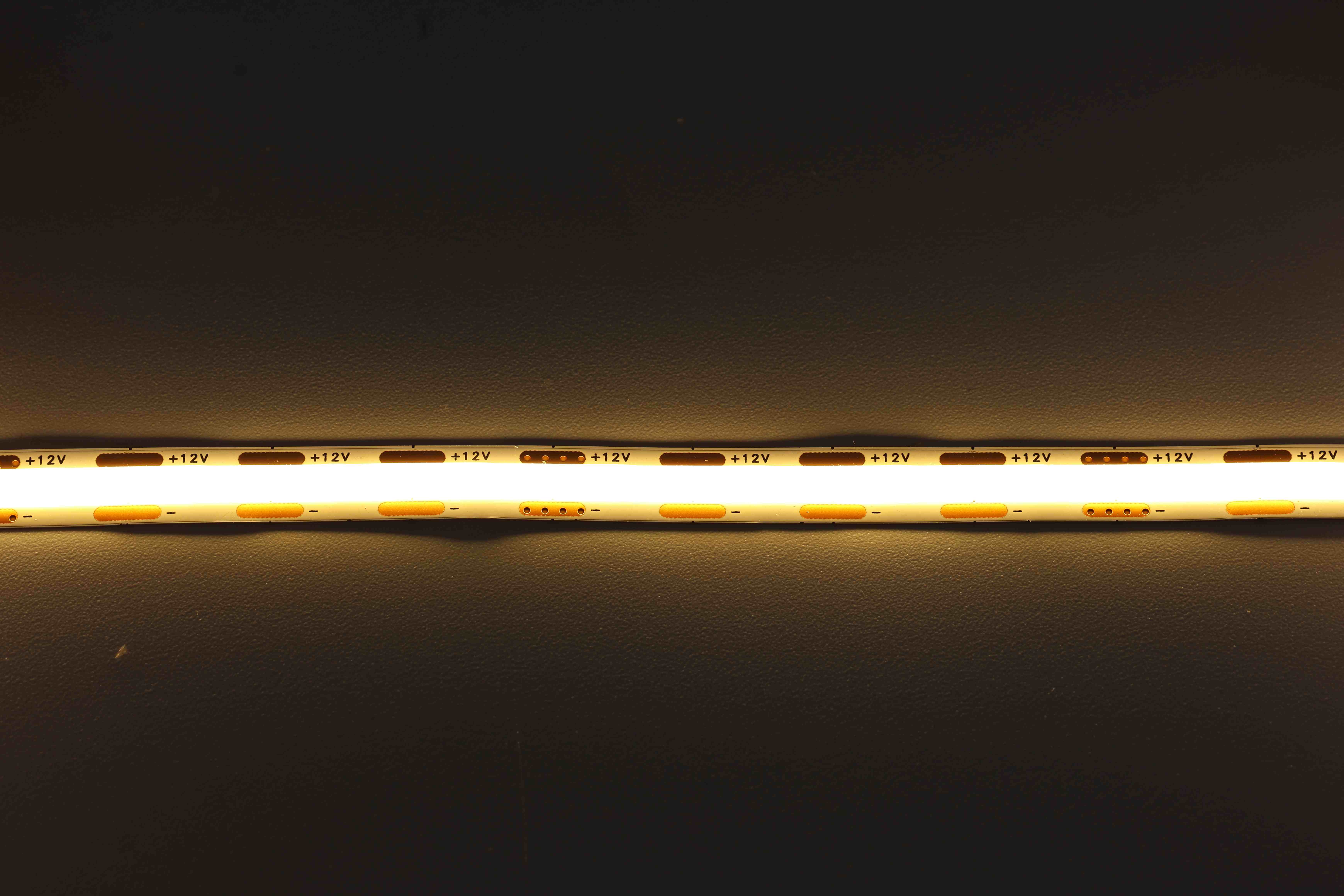

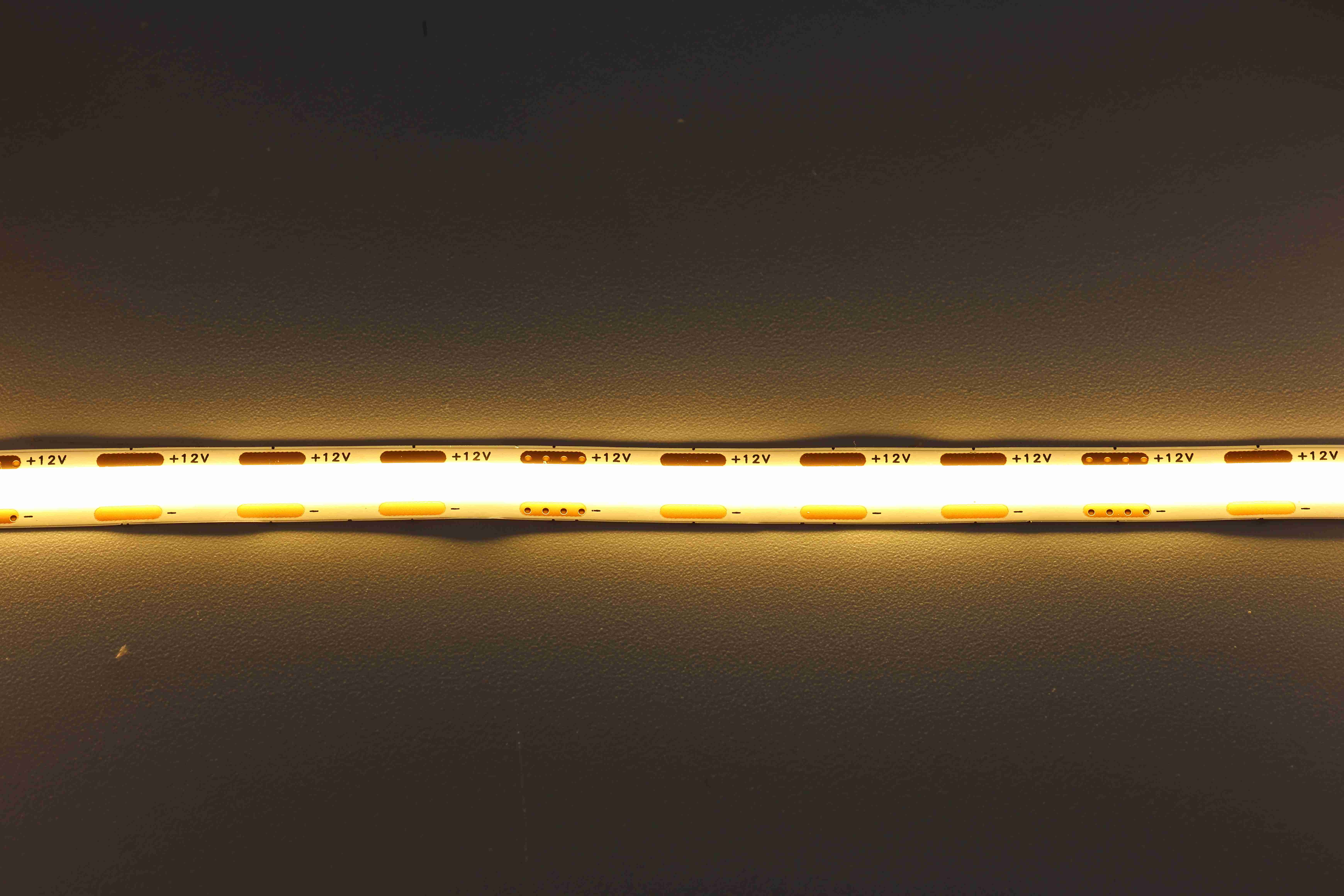

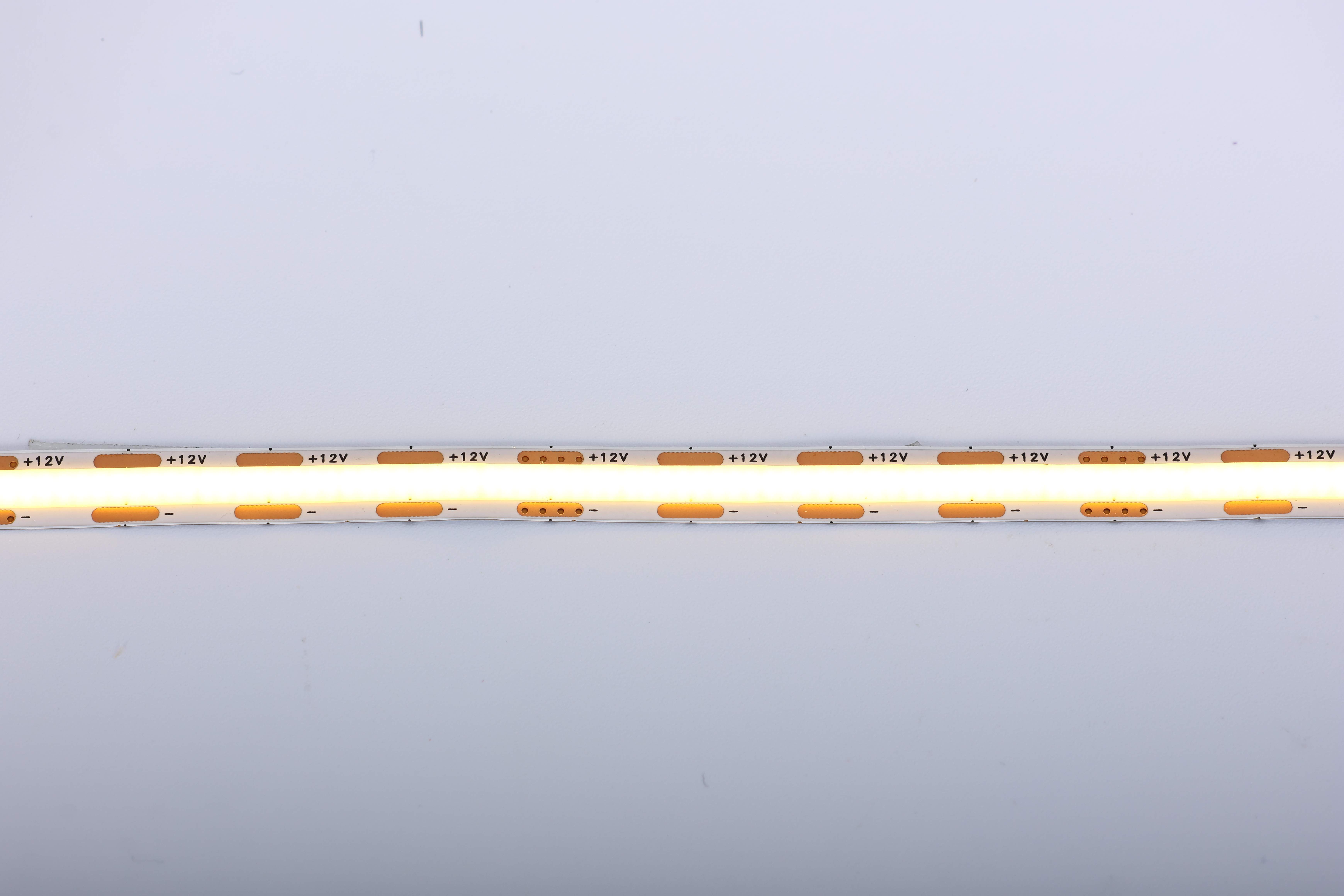

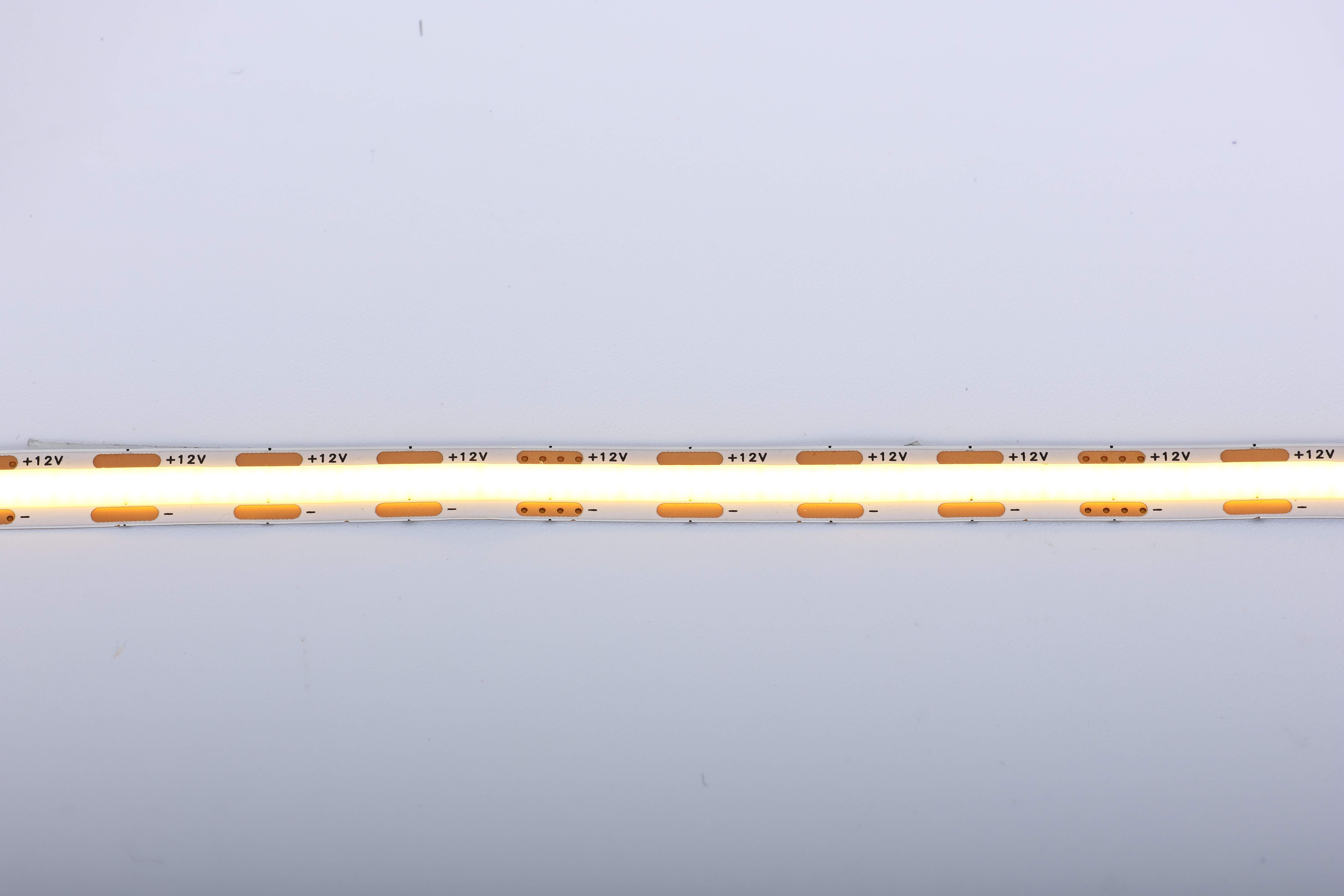

• Continuous, dot-free emitting line – At this density, individual LED gaps are entirely imperceptible even under close inspection.
• Direct 12V DC compatibility – Fits existing 12V systems for retrofit and short-section installations.
• 8mm slim profile – Standard channel compatibility at the series' maximum density.
• Six colour temperatures, SDCM ≤5 – 2700K to 6500K specified at order.
• L80B20 at 20,000 hours – 80% lumen retention with matching MTBF, 15,000 rated switching cycles.

Specifications

Materials & Finish

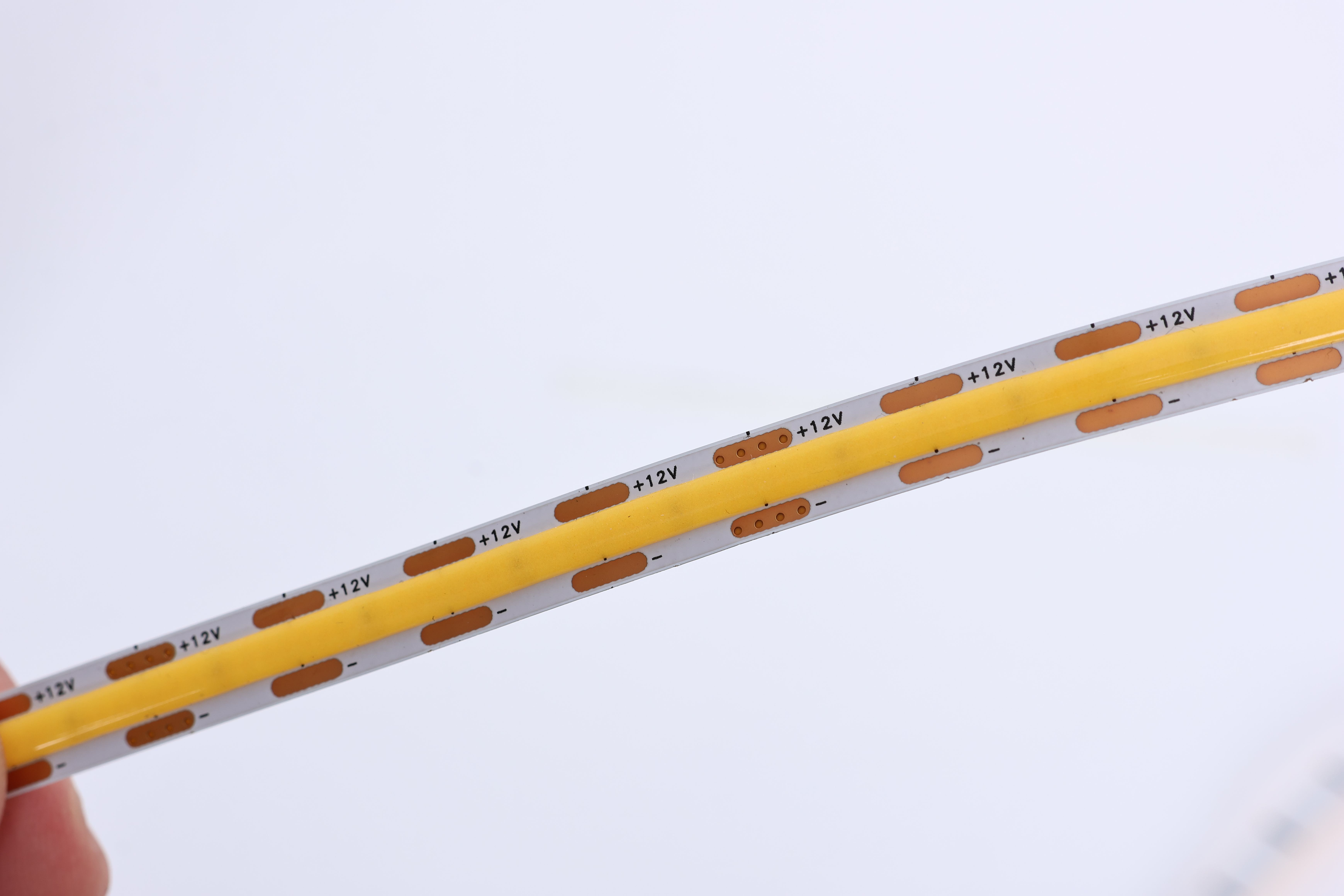

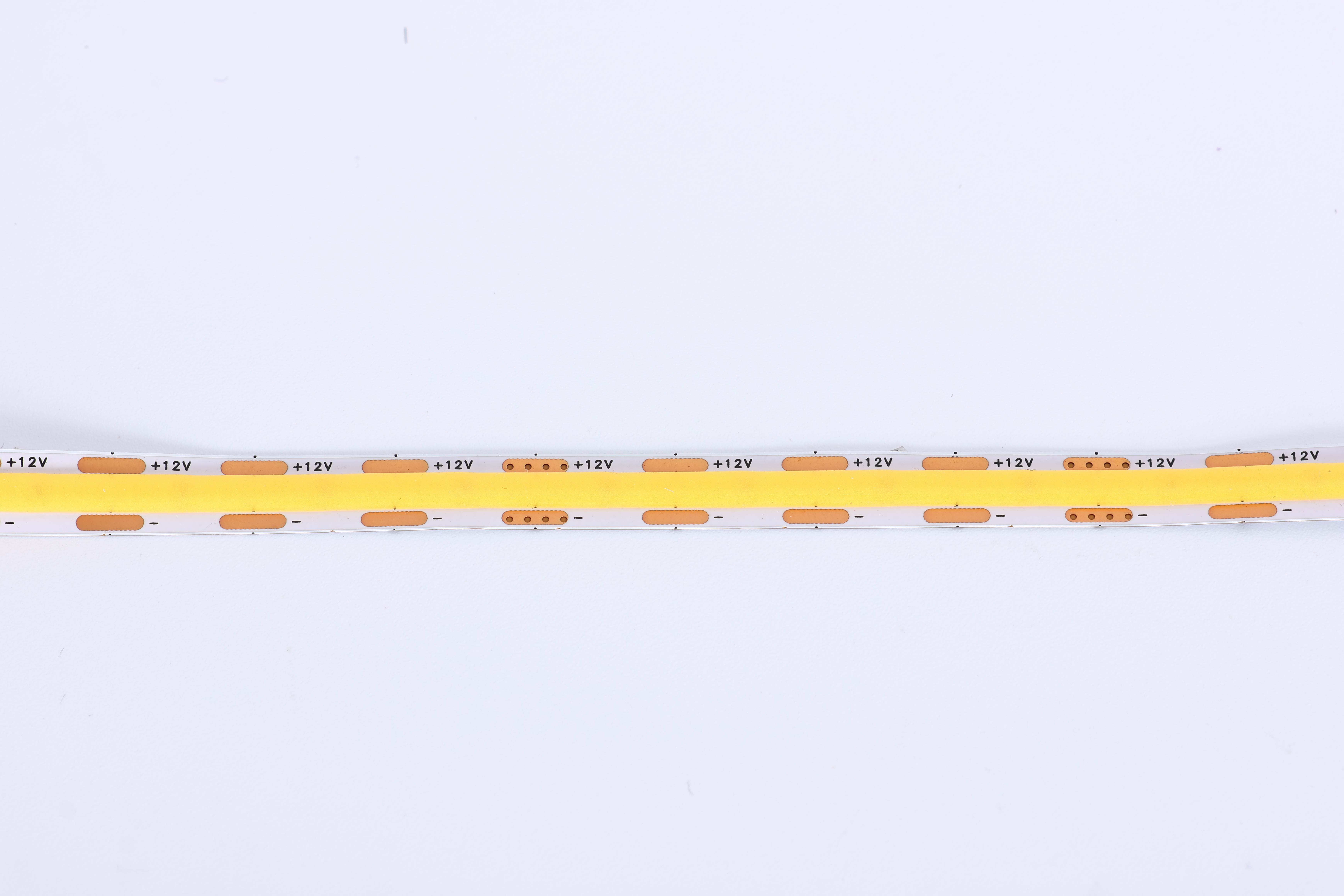

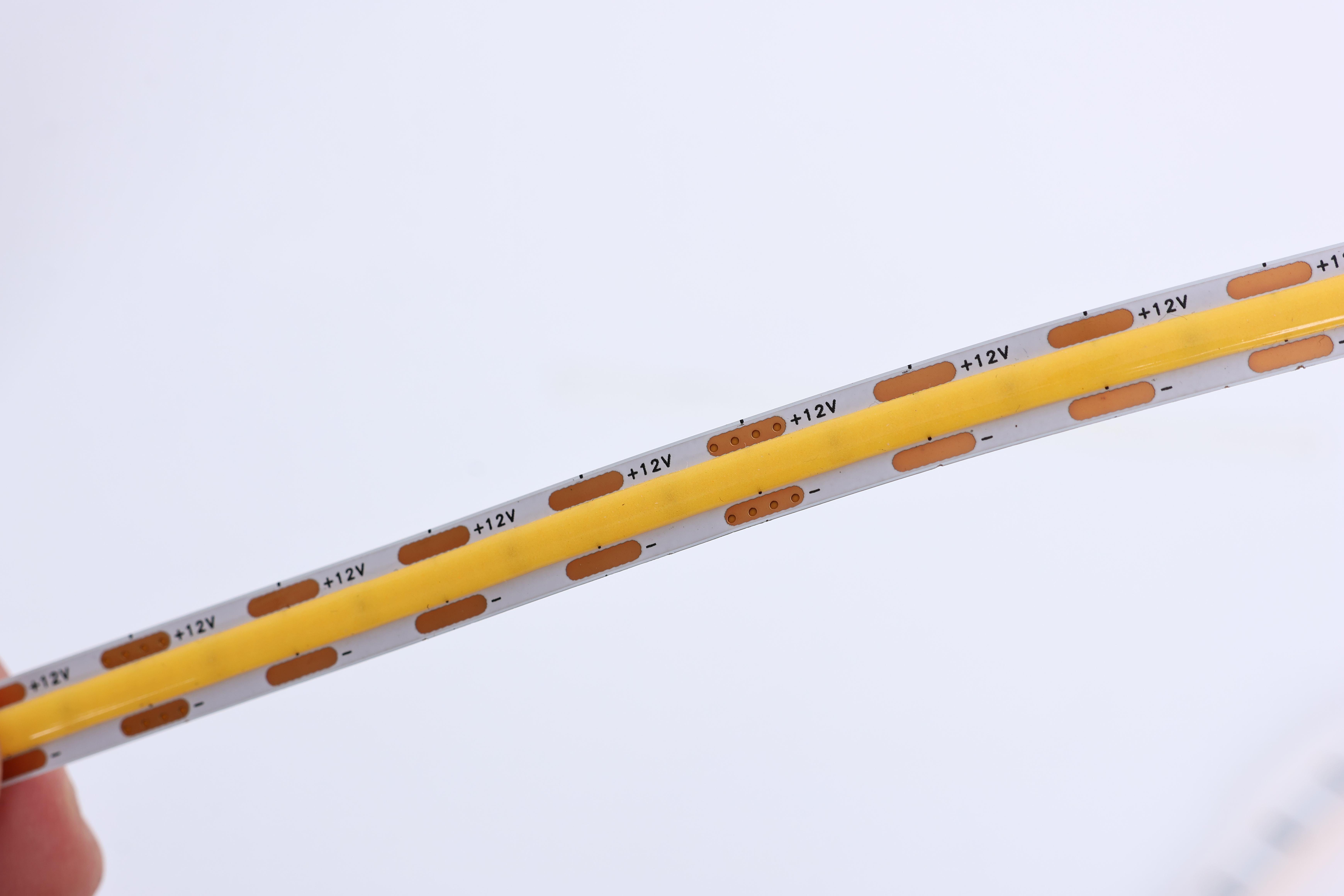

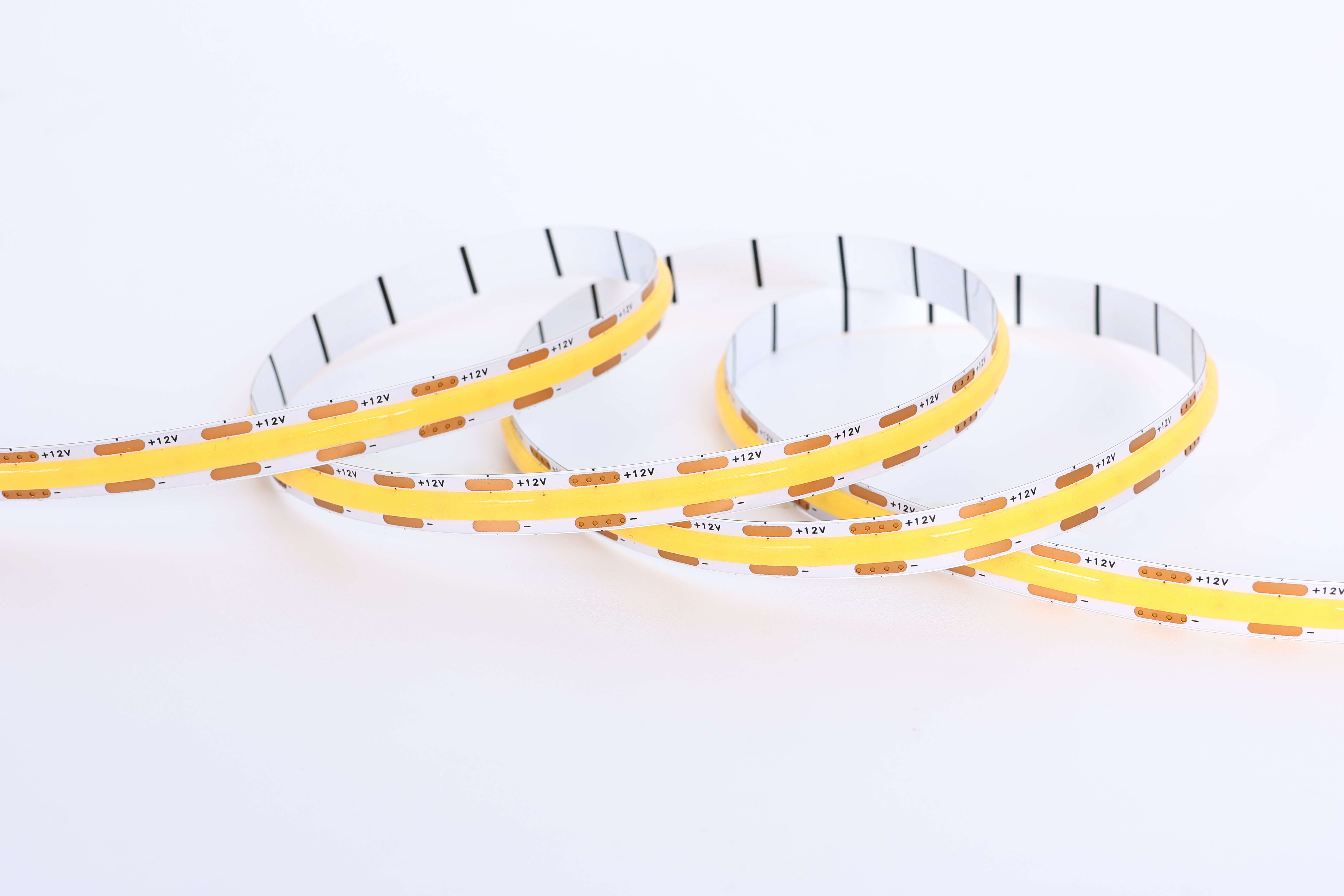

• Construction: flexible COB board with 640 large-die emitters per metre — the maximum density in the D series — beneath a continuous phosphor layer.
• Profile: W8 × H1.65 ± 0.5 mm, matching standard 8mm channel internals.
• Surface treatment: phosphor coating producing a fully continuous emitting line at this density.
• Colour consistency: SDCM ≤5 across six colour temperature options.
• Thermal range: -25 °C to +45 °C operating; -40 °C to +60 °C storage.
• Photometric stability: L80B20 at 20,000 hours.

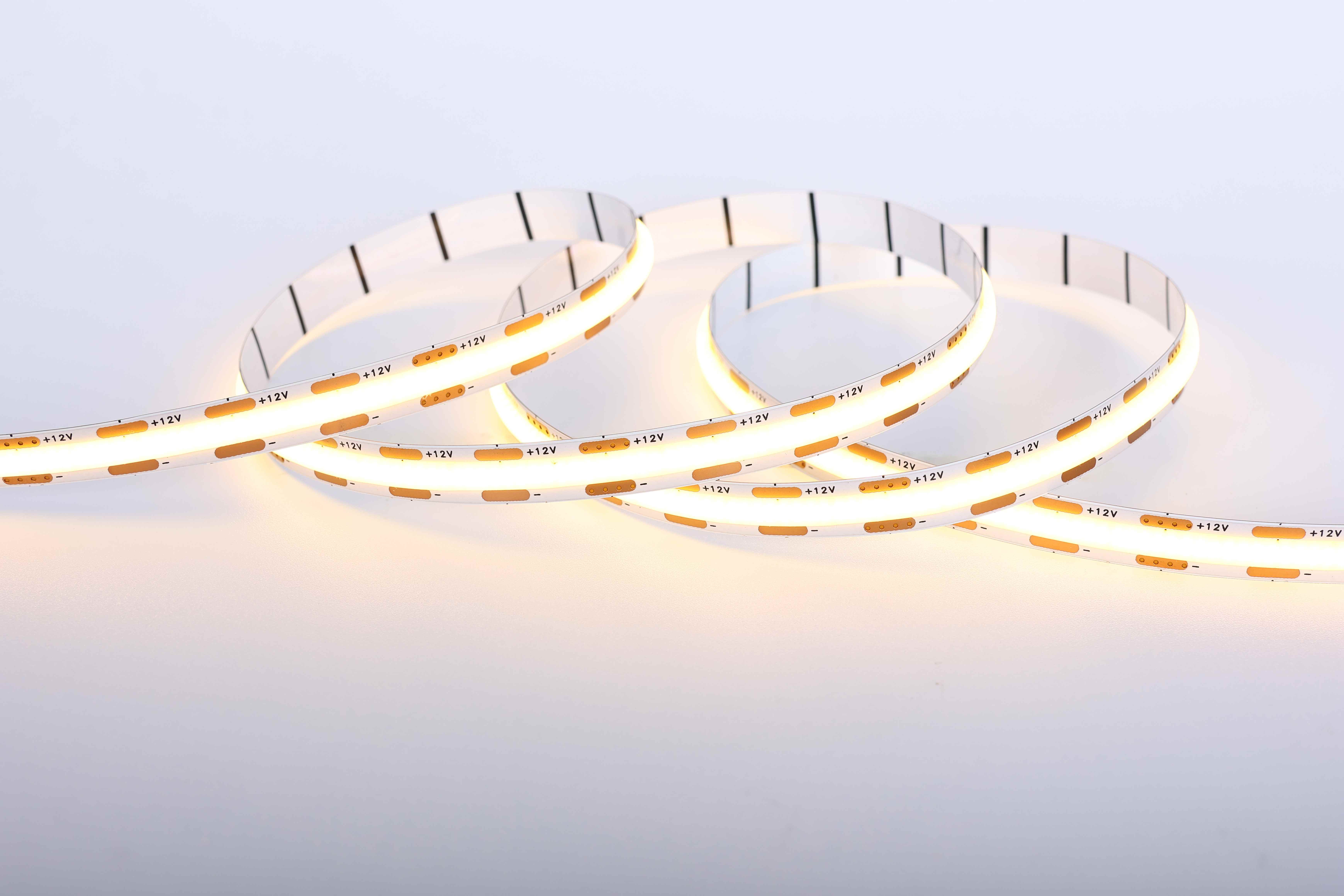

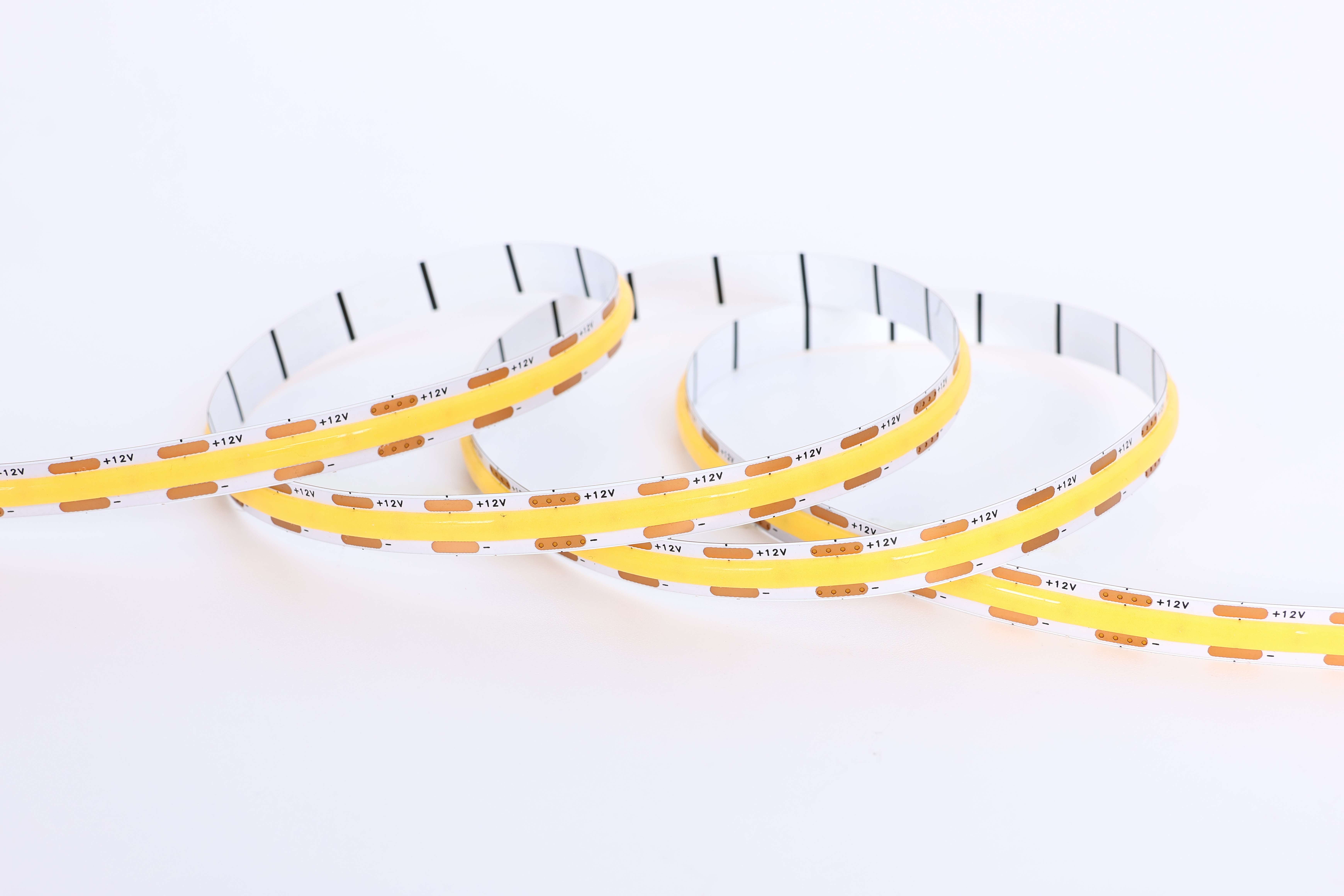

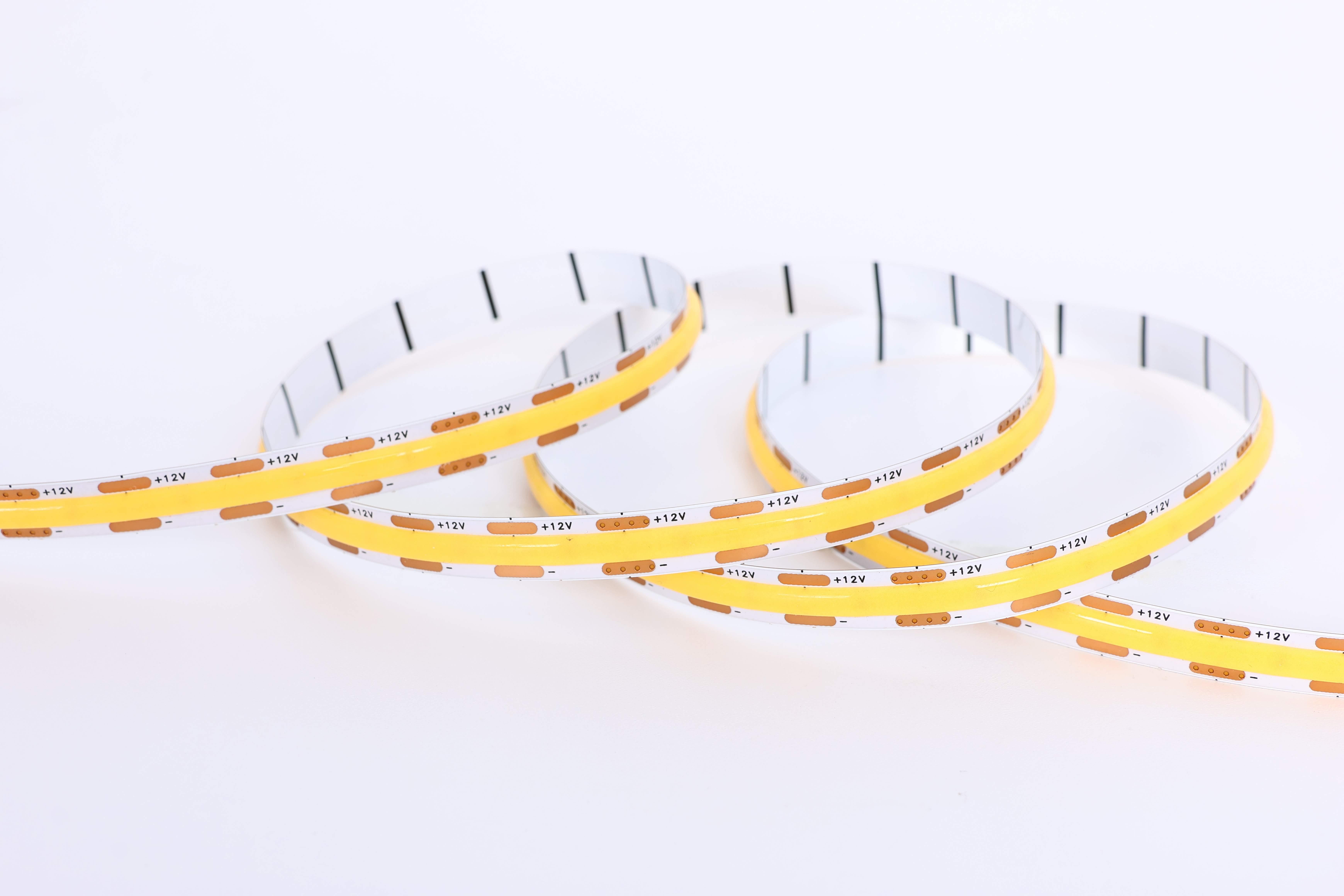

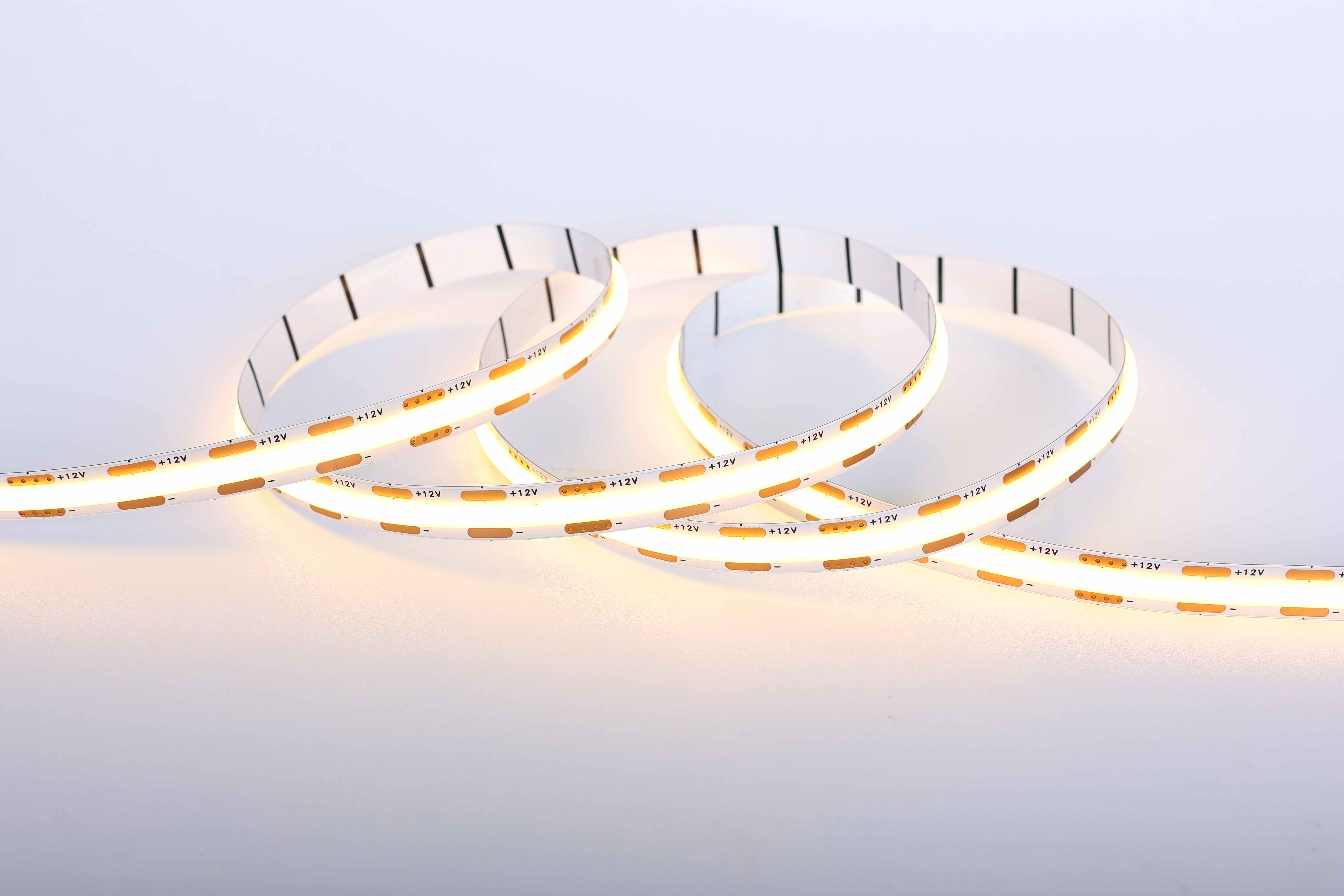

• Mechanical: flexible, bend and twist tolerant; 15,000 switching cycles.

Assembly & Installation

Tools needed: scissors or side cutters, clean dry cloth, precision measuring tape.

Steps:

1. Measure each compartment precisely to the millimetre — this strip's entire purpose is close length matching, so measurement accuracy is the critical step.
2. Confirm the 12V supply capacity against 13W per metre, noting the higher current draw of this specific board.
3. Clean and dry each mounting surface.

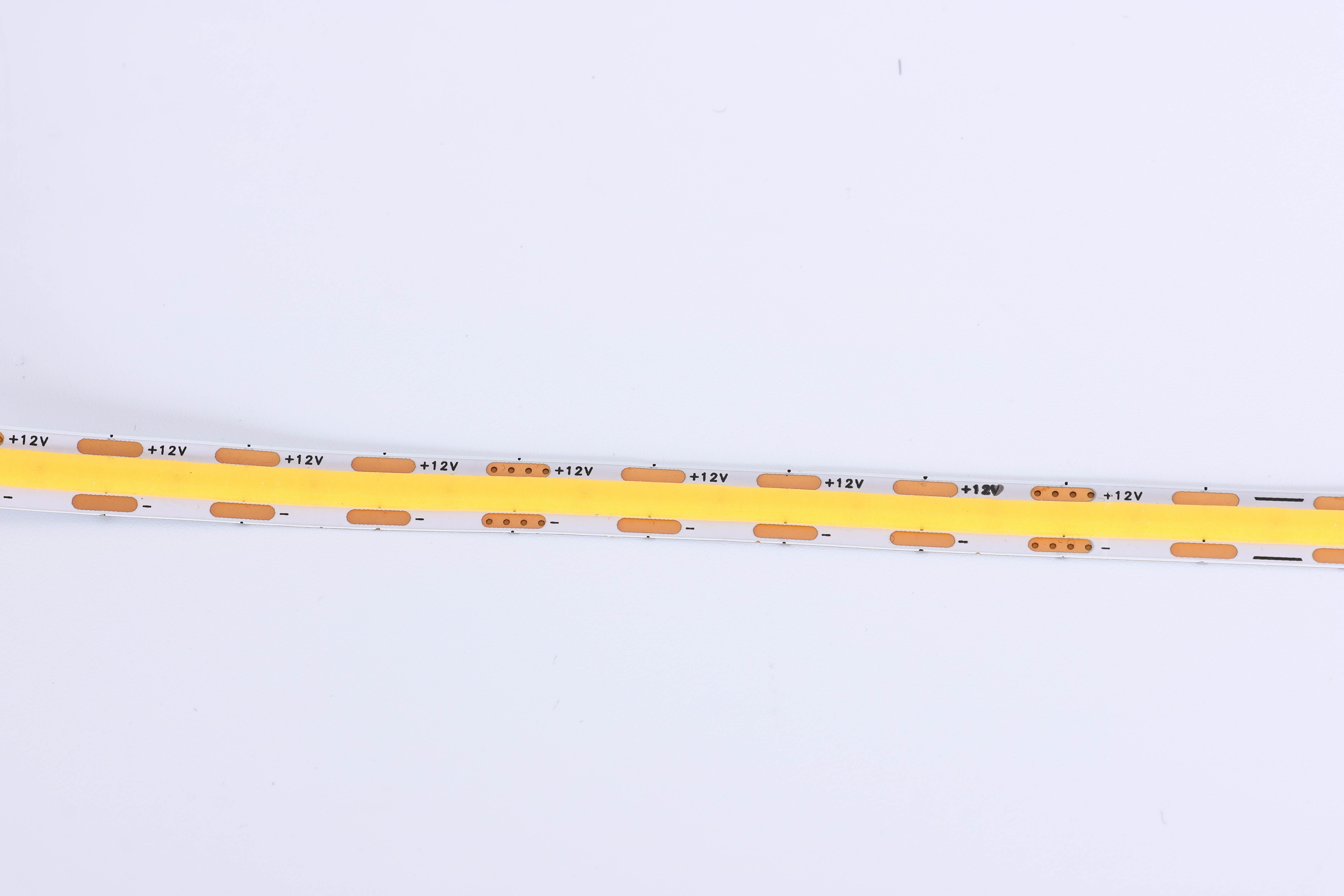

4. Cut only at the marked 12.5mm intervals.
5. Peel the backing film and press each section firmly along its length.
6. Connect using the 2P-8 accessory range; each short section functions independently once powered.

Run length limitation: at 1.08A per metre, this is the highest current draw in the low-voltage D series. Keep individual runs short — this board is designed for precisely matched short sections, not long continuous perimeters. For longer runs, specify a lower-density, lower-current model such as the 320 or 480-LED boards.

Applications

• Jewellery drawers and small display niches – 12.5mm precision matches compartments too small for any other model in the range.
• Narrow shelf dividers and cabinet inserts – Exact length matching across multiple short, similarly sized sections.
• Watch and small accessory display cases – Fine cut precision for compact presentation fixtures.
• Museum and collectible display cases – Continuous dot-free light for very short viewing sections.
• Model and hobby display cabinets – Precise fit within small, custom-built display compartments.
• High-end retail fixture manufacturing – Where multiple short strip sections must match in length across a production run.

Customization

Certifications

• CE
• CB
• RoHS
• Test reports available on request

Packing & Logistics

• Packing type: reel + ESD bag + carton
• Packing quantity: 5 m per roll, 100 rolls per carton, 500 m total
• MOQ: 50 sets
• Lead time: 15–21 days
• Port of loading: Guangzhou / Shenzhen

Service

• Warranty: 2 years
• Samples: free samples on standard items; freight collect
• Response time: within 2 hours
• After-sales: technical support by email or phone throughout the warranty period. Report quality issues with photographs, video, and the item number; verified defects are resolved by replacement parts or replacement units shipped with your next order, or by credit where no follow-up order is scheduled. Faults caused by physical damage, unauthorised modification, or use outside the rated environmental conditions fall outside warranty cover.
• Contact: tel: +86 18933392222 | email: [email protected] | global.joineonlux.com

FAQ

Q: When should this 640-LED strip be specified over the 512-LED board?
A: When compartments are shorter than the 512-LED board's cut interval can accommodate precisely. At 12.5mm, this board halves the granularity of the 25mm-cutting 480-LED strip, making it the choice for very small, tightly measured sections rather than general cabinet runs.

Q: Why is the current draw so much higher than other 12V boards?
A: 640 LEDs per metre is the highest density in the D series, and density drives current draw at a given voltage. At 1.08A per metre, practical run length is shorter than lower-density boards. This model is not intended for long continuous runs — use it for short, precisely matched sections only.

Q: Is there a 24V version at this density?
A: Yes, the 24V 640-LED board offers the same density with lower current draw and a wider 25mm cut interval at higher output (1800 lm/m). Choose 24V for longer runs at this density; choose this 12V version specifically for the finer 12.5mm cut precision.

Q: What is the maximum recommended run length for this strip?
A: Given the 1.08A per metre draw, keep individual sections short — a few metres at most from a single feed point. This board is engineered for cut precision on short sections, not extended perimeter runs.

Q: Does the fine cut interval affect light output per section?
A: No. Each cut section functions as a complete circuit segment at full rated brightness; the cut interval only determines the minimum incremental length adjustment available.

Q: What are the MOQ and lead time?
A: MOQ is 50 sets, lead time 15–21 days. Supplied on 5m reels, 100 reels per carton totalling 500m, shipped from Guangzhou or Shenzhen.
