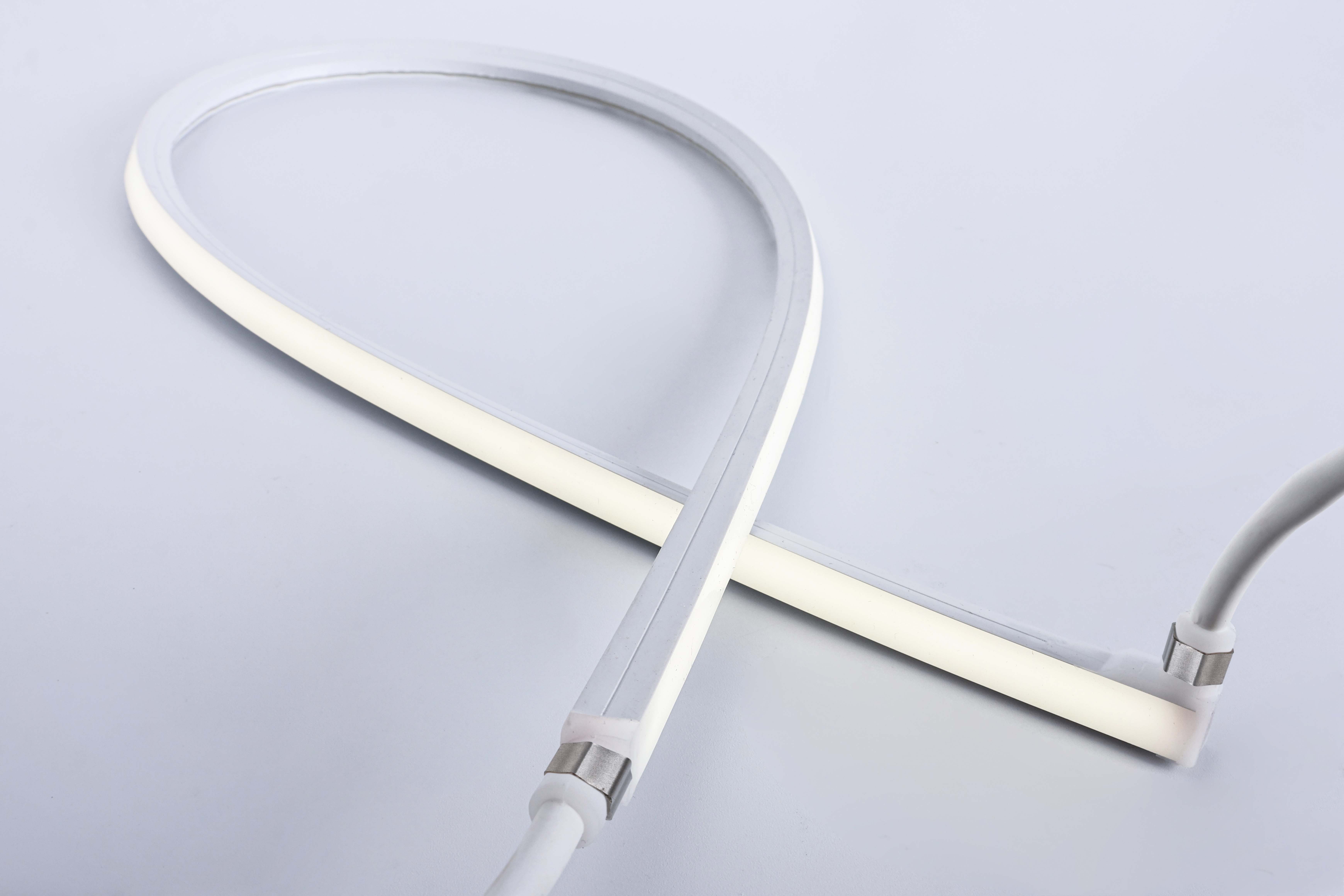

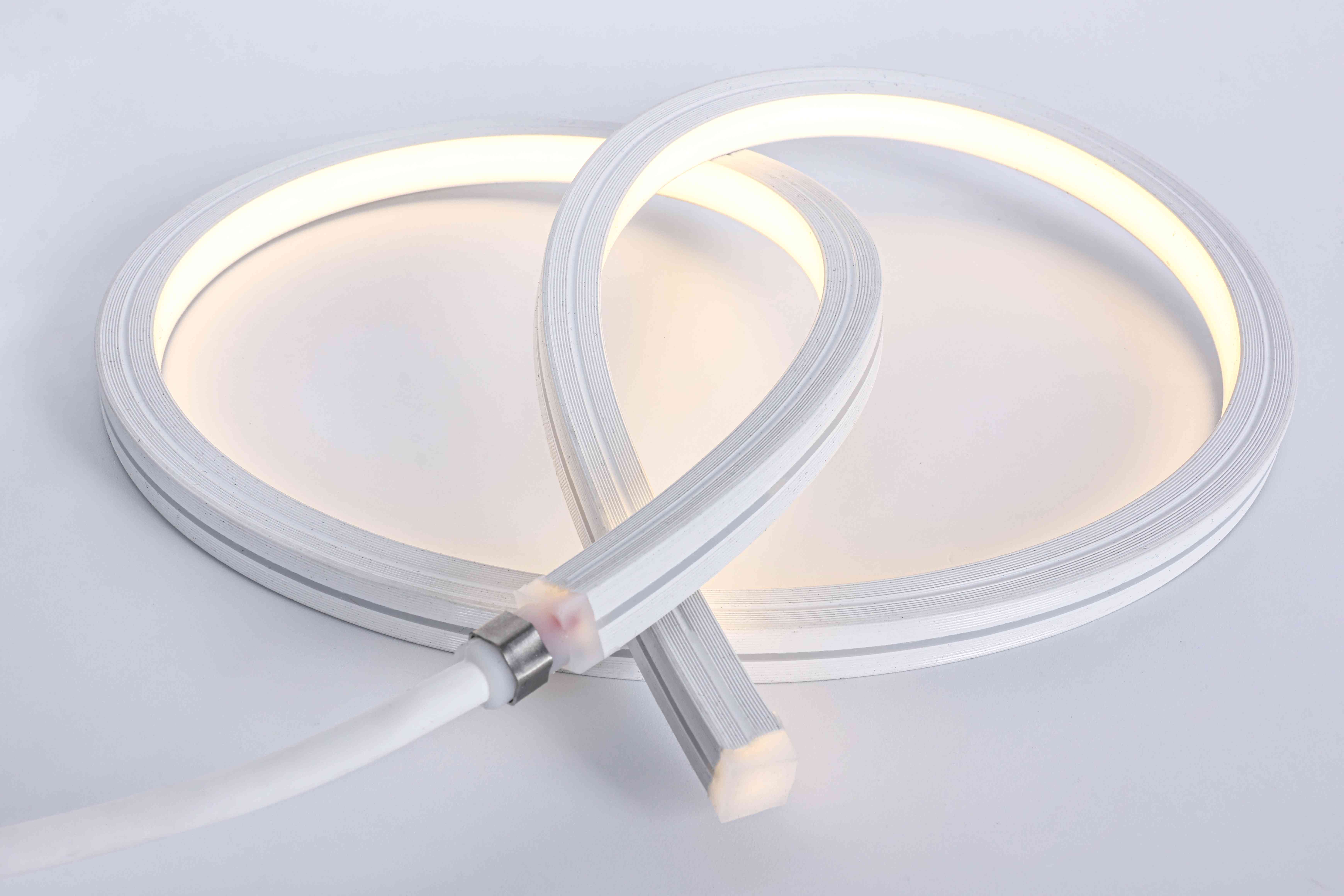

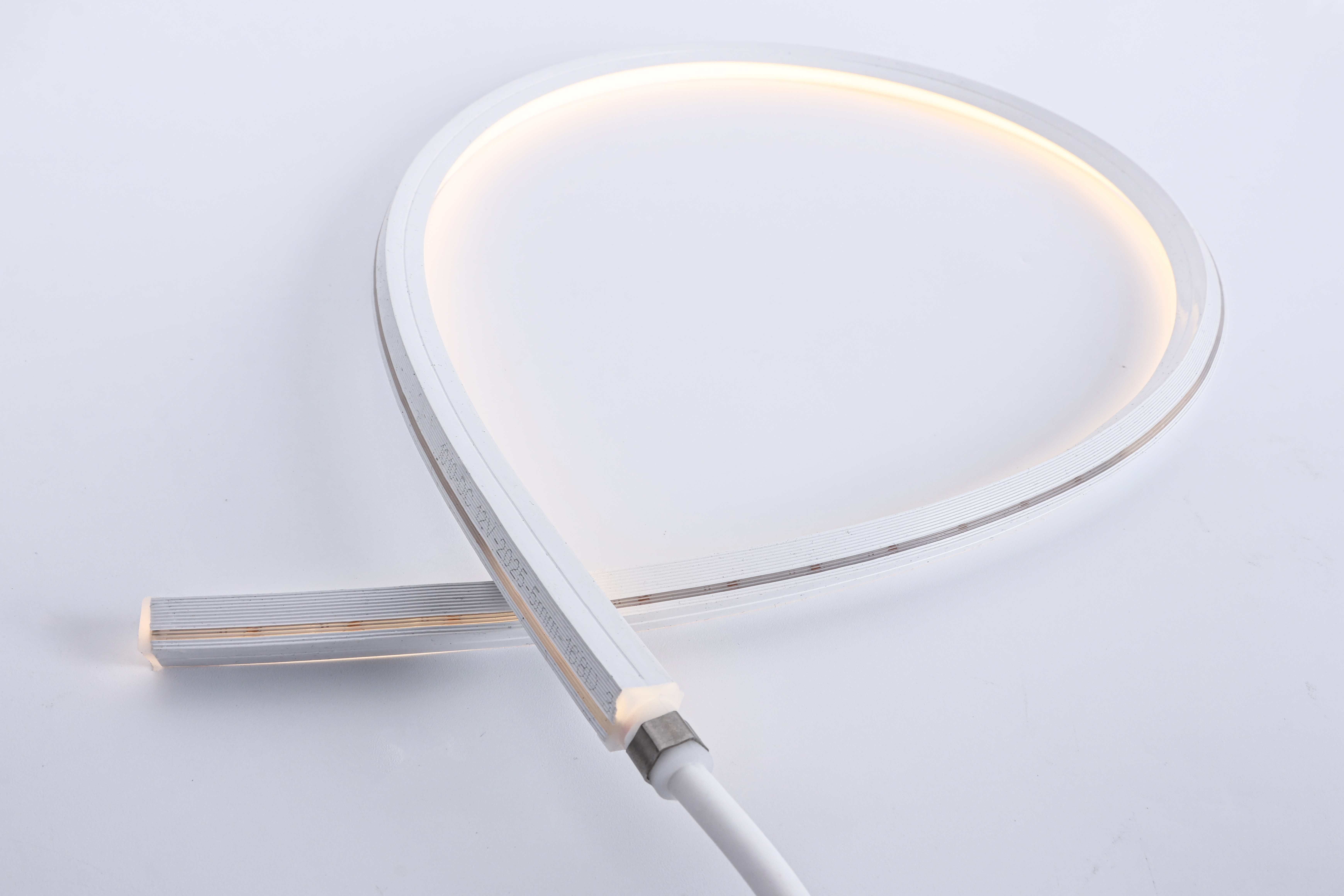

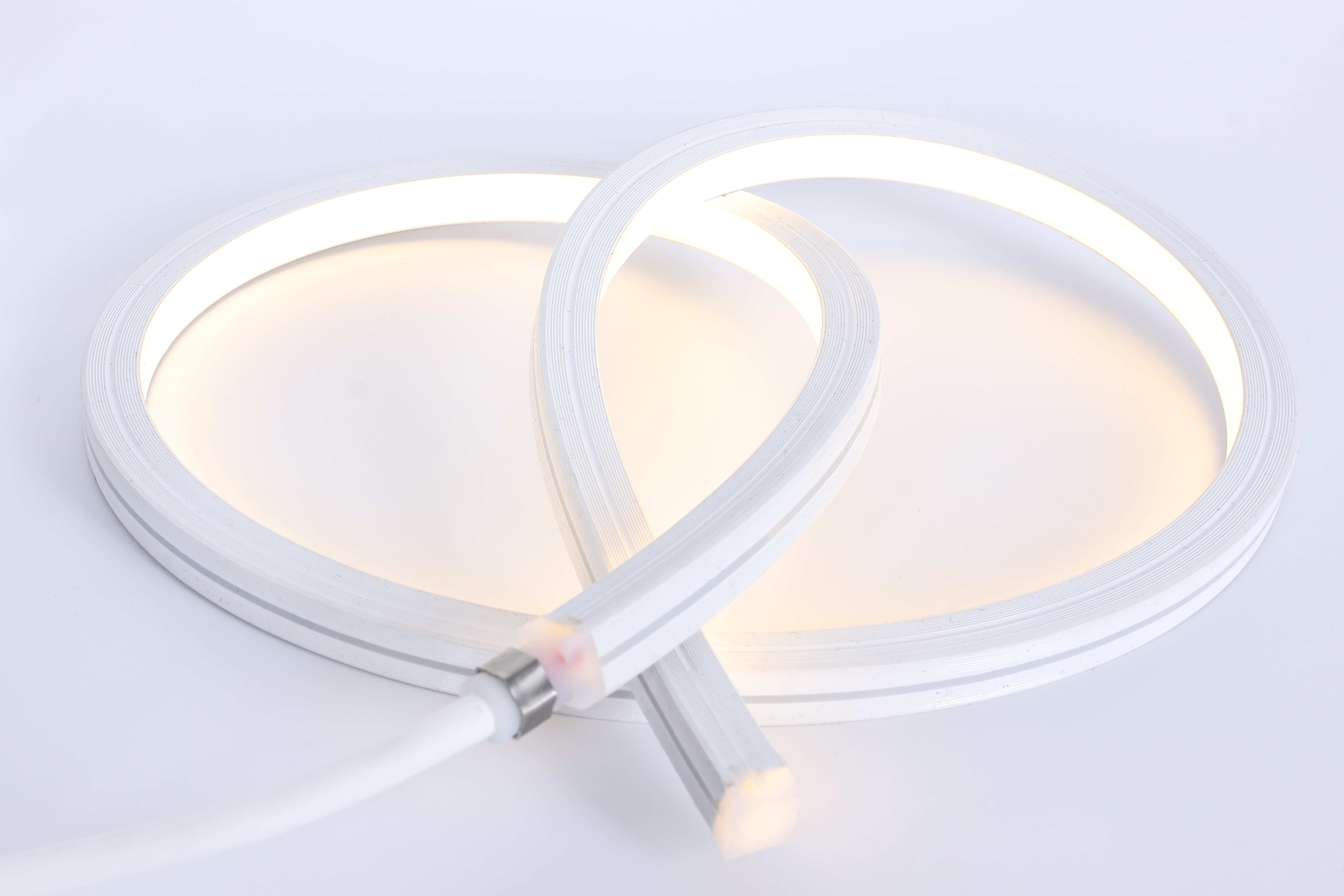

Channel letter signage and edge-lit lettering need light directed out through the side profile of the strip, not straight up through the top face — a requirement standard front-emitting neon strips do not meet. This side-emitting silicone LED neon strip is built specifically for that geometry, directing its output through the side of the silicone jacket rather than the top.

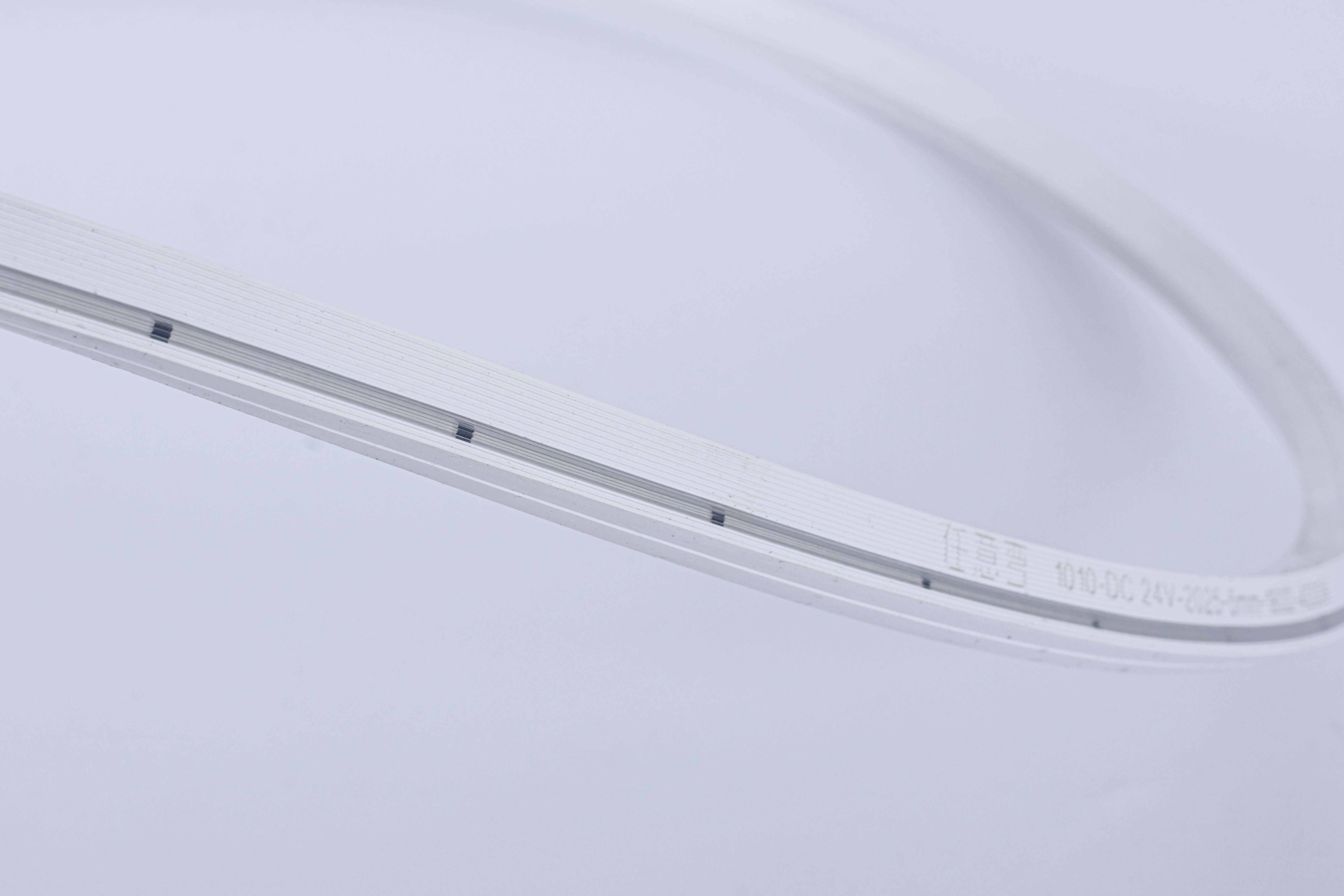

It combines that side-emitting optic with the same Ruyi cut (6mm, cuttable at every LED) and 360° free bending construction used across the flexible G series range — meaning it can follow curved letterforms and terminate at a precisely measured length in the same product. At 168 2025-type LEDs per metre and 24V DC, output is 320 lm/m from 8W, a lower luminous flux figure than the front-emitting equivalents, reflecting the different optical path side-emission requires.
Construction remains gas-phase silicone, IP68 rated, with a -25°C to +45°C operating range and Tri-CCT 3-in-1 colour temperature specified at order from 3000K, 4000K, or 6500K.
| Parameter | Details |
|---|---|
| Model No. | JNL-G-024V-2025-0168-05-S1XX-005-YYYY-08-68 |
| Item No. | 103650006 |
| Rated power | 8.0 W/m ± 10% |
| Rated voltage | 24 V DC |
| Input current | 0.33 A |
| LED type | 2025 |
| LED quantity | 168 PCS/m |
| Luminous flux | 320 lm/m |
| Colour temperature | Tri-CCT 3000 / 4000 / 6500 K (3-in-1, specified at order) |
| Colour rendering index | Ra 80 |
| SDCM | < 5 |
| Beam angle | 120° |
| Lumen maintenance | L80B20 @ 50,000 h |
| Energy efficiency class | G |
| Ingress protection | IP68 |
| Outline dimensions | W10 × H10 ± 0.5 mm |
| Surface material | Silicone |
| Cut length | 6 mm (cuttable at every LED / Ruyi cut) |
| Mounting | Fixed Clamp |
| Dimming method | Turn on the power and it lights up |
| Switching cycles | 15,000 times |
| Operating temperature | -25 °C to +45 °C |
| Relative humidity | 10–90% |
| Storage temperature | -40 °C to +60 °C |
| MTBF | 50,000 h |
| Packing | Box + carton |
| Packing quantity | 5 m/roll × 10 rolls = 50 m per carton |
Tools needed: scissors or side cutters, clean dry cloth, fixed clamp accessories.
Steps:
Orientation check before final fixing: because this is a side-emitting strip, confirm the emitting face is correctly oriented toward the viewer before permanently fixing the strip inside a channel letter or sign housing — reversed orientation is the most common installation error with side-emitting product.
| Option | Details |
|---|---|
| Colour temperature | Tri-CCT 3000 / 4000 / 6500 K, specified at order |
| CRI | Customisable on request |
| Luminous flux | Customisable on request |
| Length | 5 m per roll standard; cuttable every 6 mm |
| Packaging | Box + carton standard; neutral or branded packaging available |
| OEM / ODM | Private label and custom packaging supported |
| MOQ | 50 sets |
| Accessory | Description |
|---|---|
| Fixed Clamp | Supplied 5 pcs per roll for mounting |

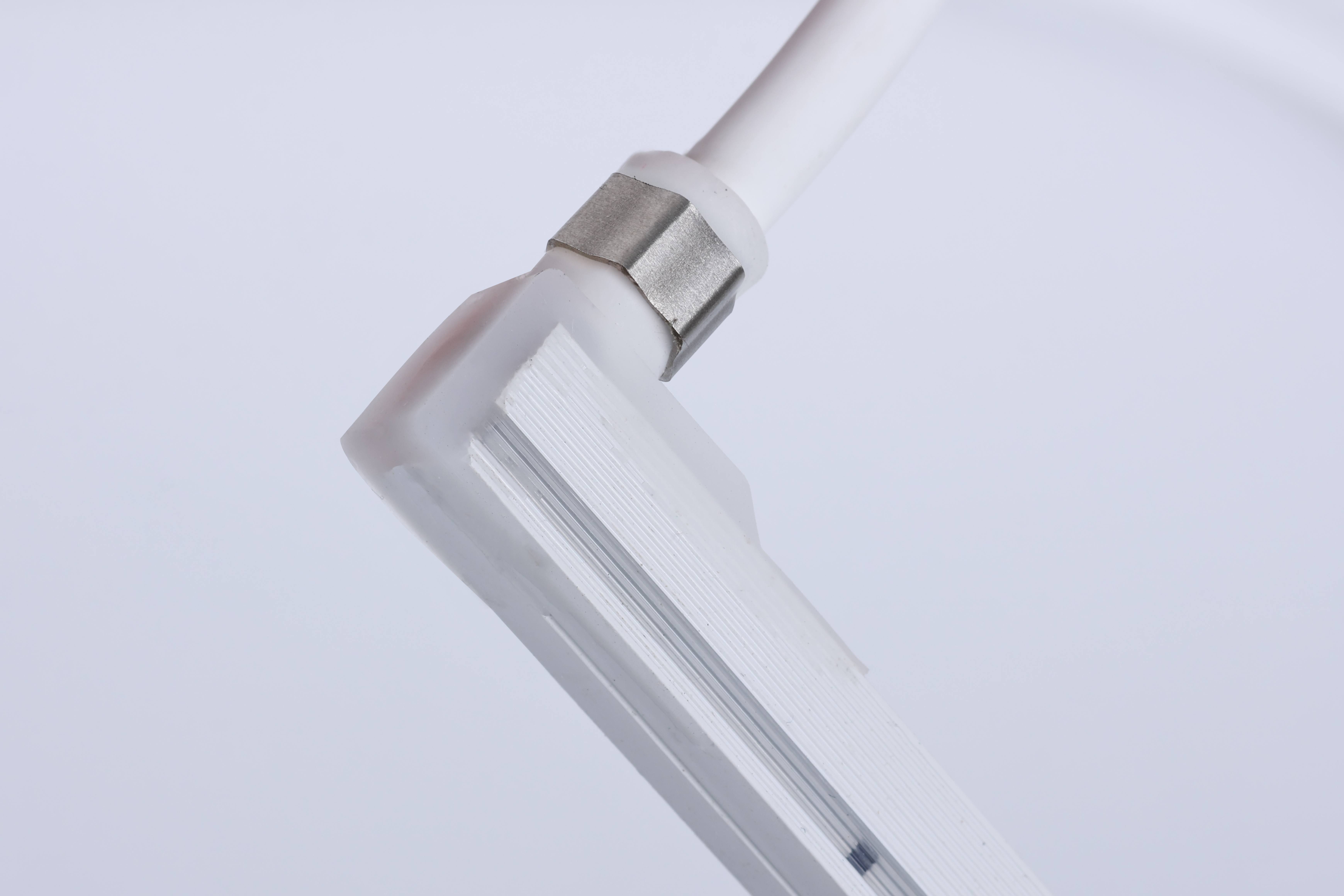

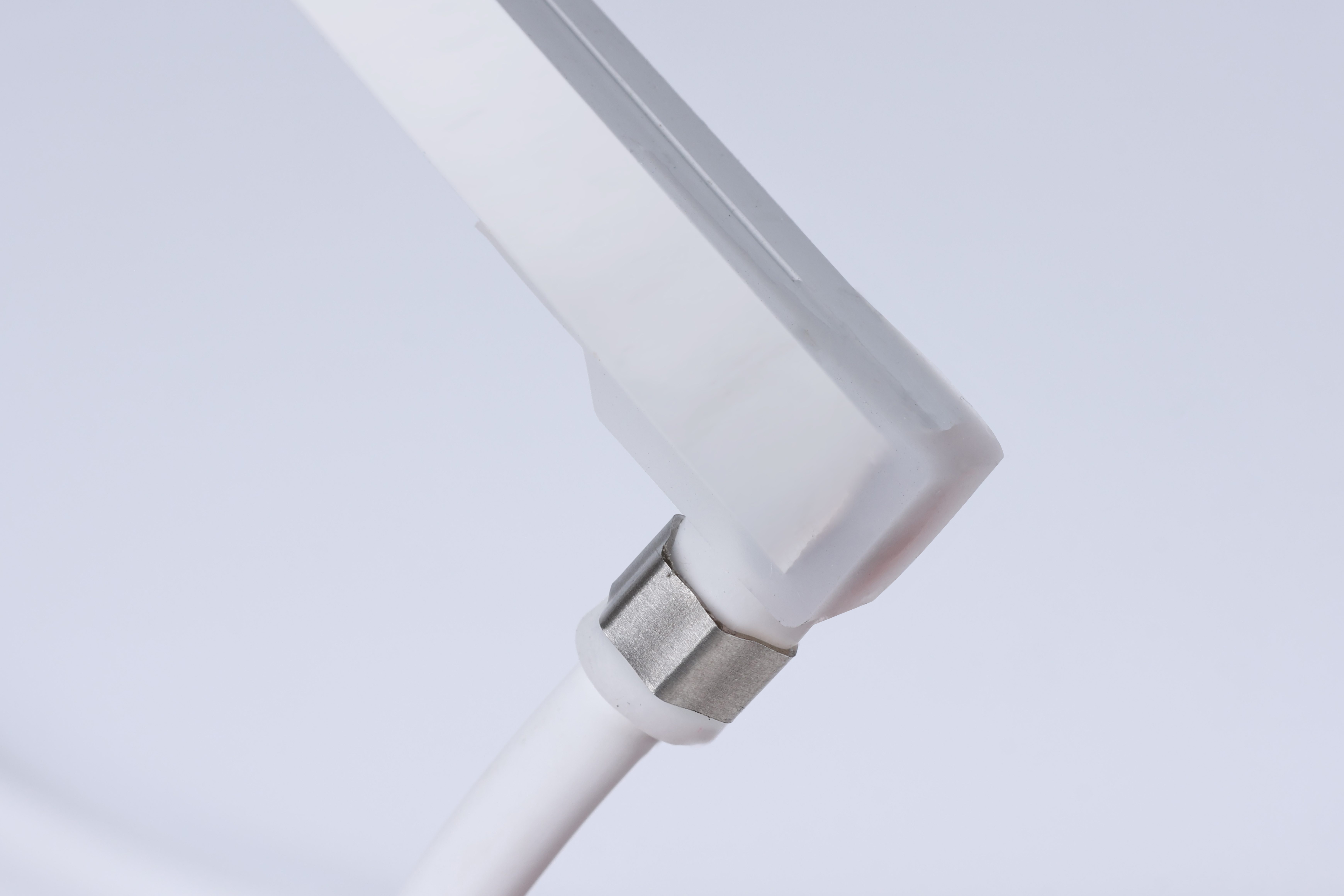

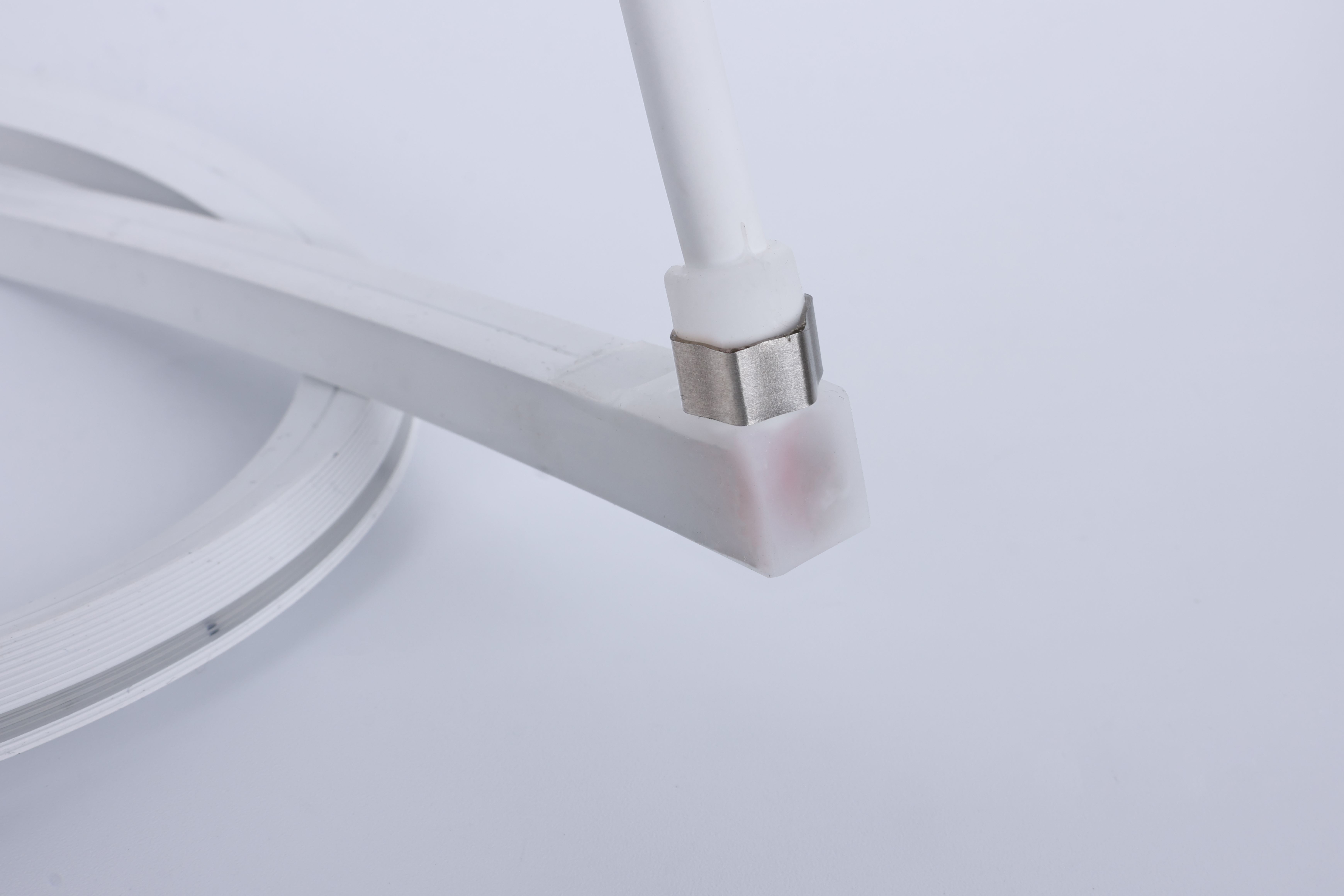

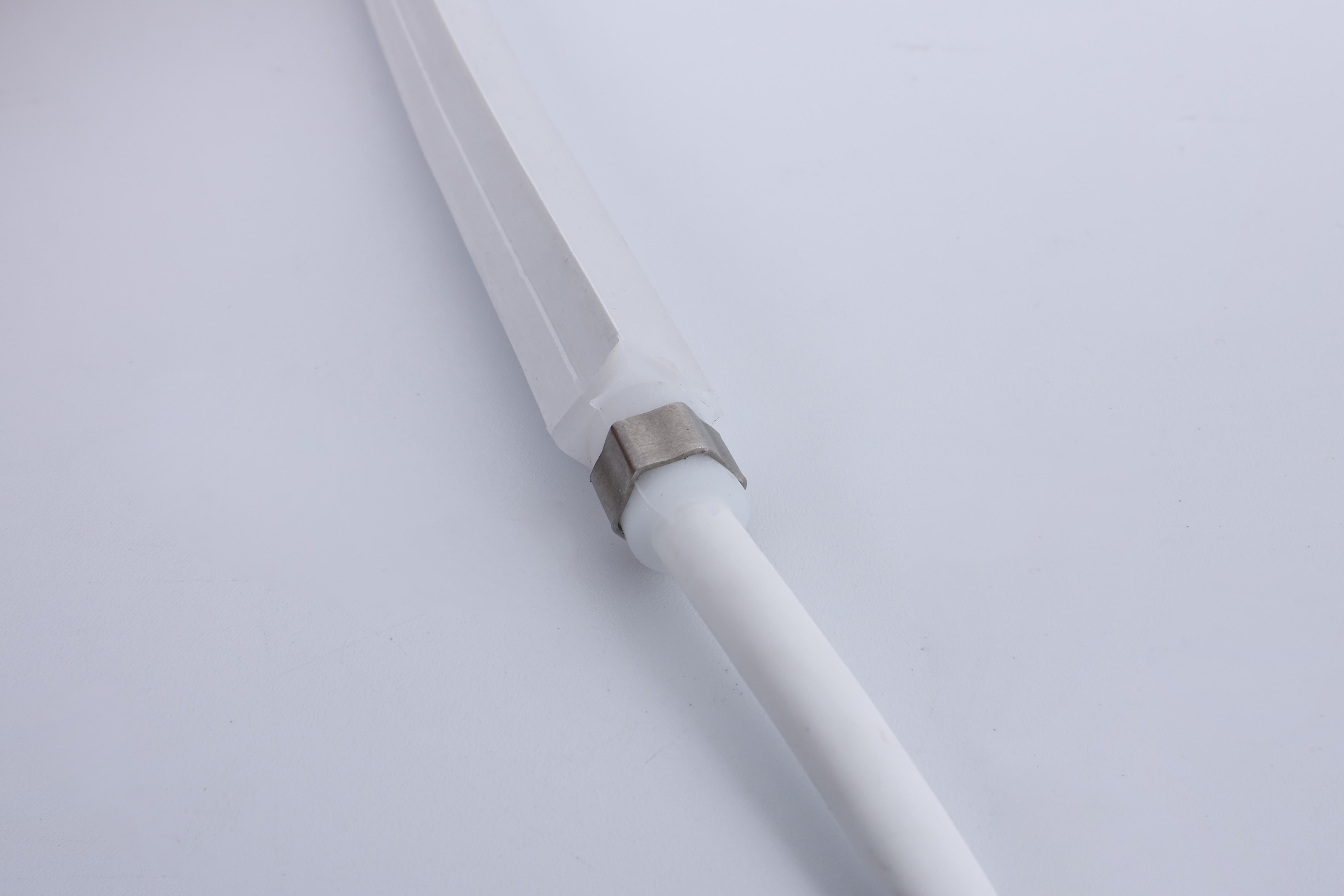

| Metal terminal connection wire | For durable, low-resistance feed connections |
| PVC terminal connection wire | Alternative flexible connection option |

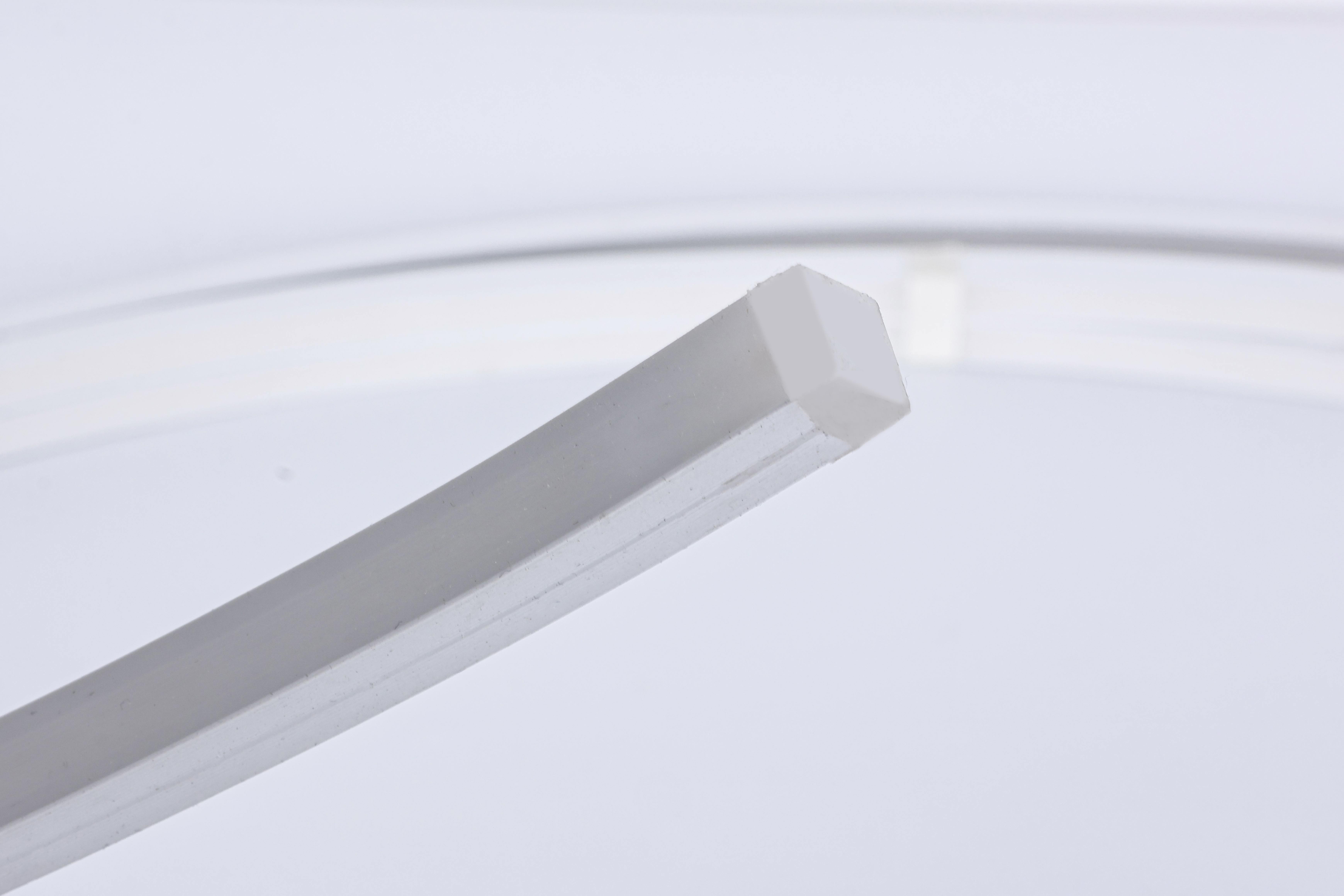

| End plug | Seals the open end of a cut strip section |
Q: What is the difference between side-emitting and front-emitting neon strip?
A: Front-emitting strips direct light straight up through the top face — suited to cabinet and cove lighting viewed from above or in front. Side-emitting strips like this one direct light out through the side profile, matching the geometry channel letter signage and edge-lit lettering require.
Q: Why is the output lower than a front-emitting strip with a similar LED count?
A: Side-emission uses a different optical path through the silicone jacket than front-emission, which typically produces a lower luminous flux figure for the same LED count and power. This is standard behaviour for side-emitting neon product, not a fault.
Q: Can this strip be used for cabinet lighting instead of signage?
A: It can, but the side-emission optic is specifically optimised for letter and sign applications. For general cabinet lighting, a front-emitting model in the range will produce more usable light for the same specification.
Q: What does Ruyi cut combined with 360° bend offer for sign work?
A: Together they allow the strip to follow curved letterforms and still terminate at an exact length — useful for scripted or curved logo lettering where standard cut intervals would not match the design precisely.
Q: Is IP68 sufficient for outdoor signage?
A: Yes, IP68 supports full outdoor exposure including rain and washdown conditions, appropriate for exterior signage and shop front installations.
Q: What is the MOQ and lead time?
A: MOQ is 50 sets, lead time 15–21 days. Supplied on 5m reels, 10 reels per carton totalling 50m, shipped from Guangzhou or Shenzhen.
