Core Features

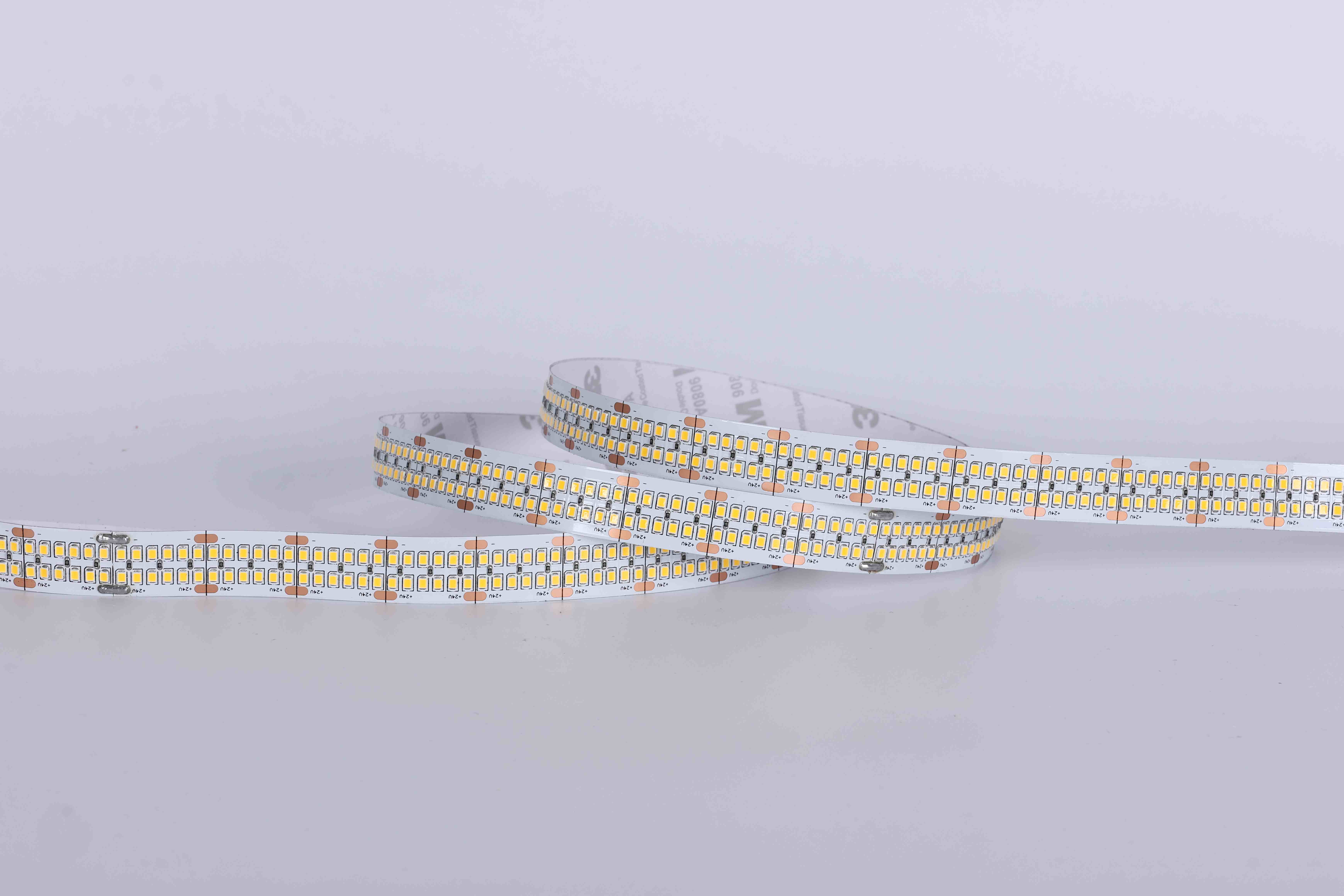

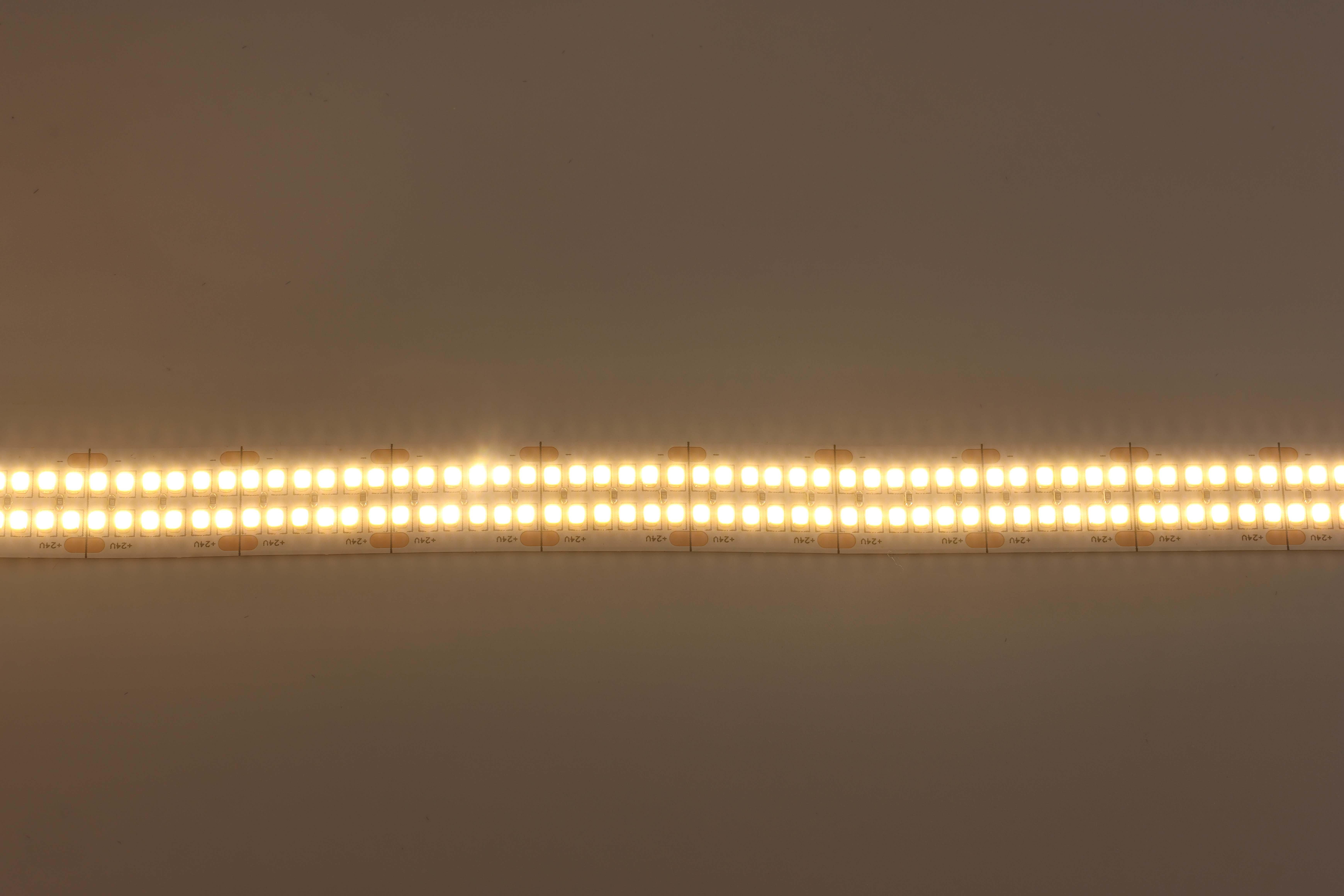

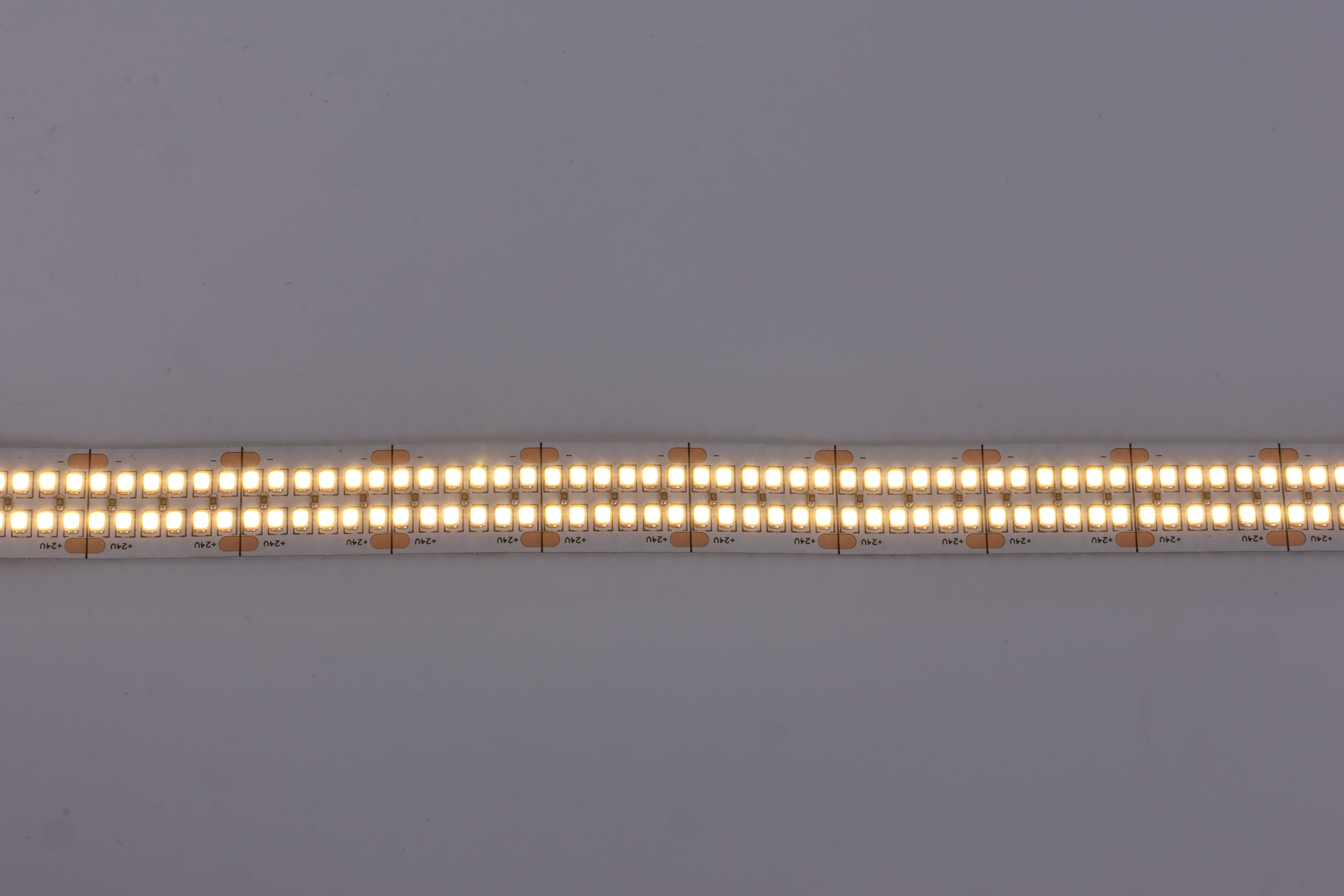

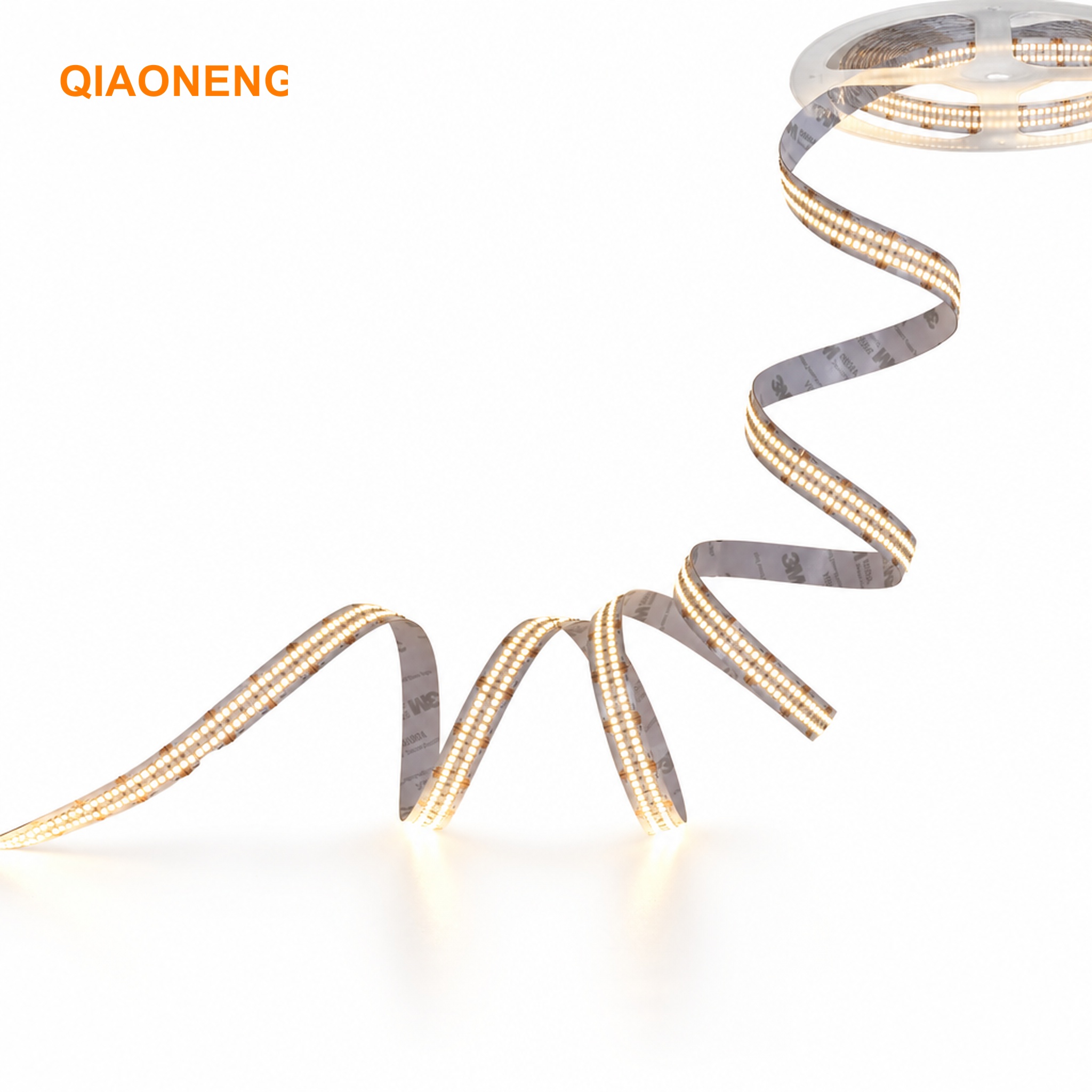

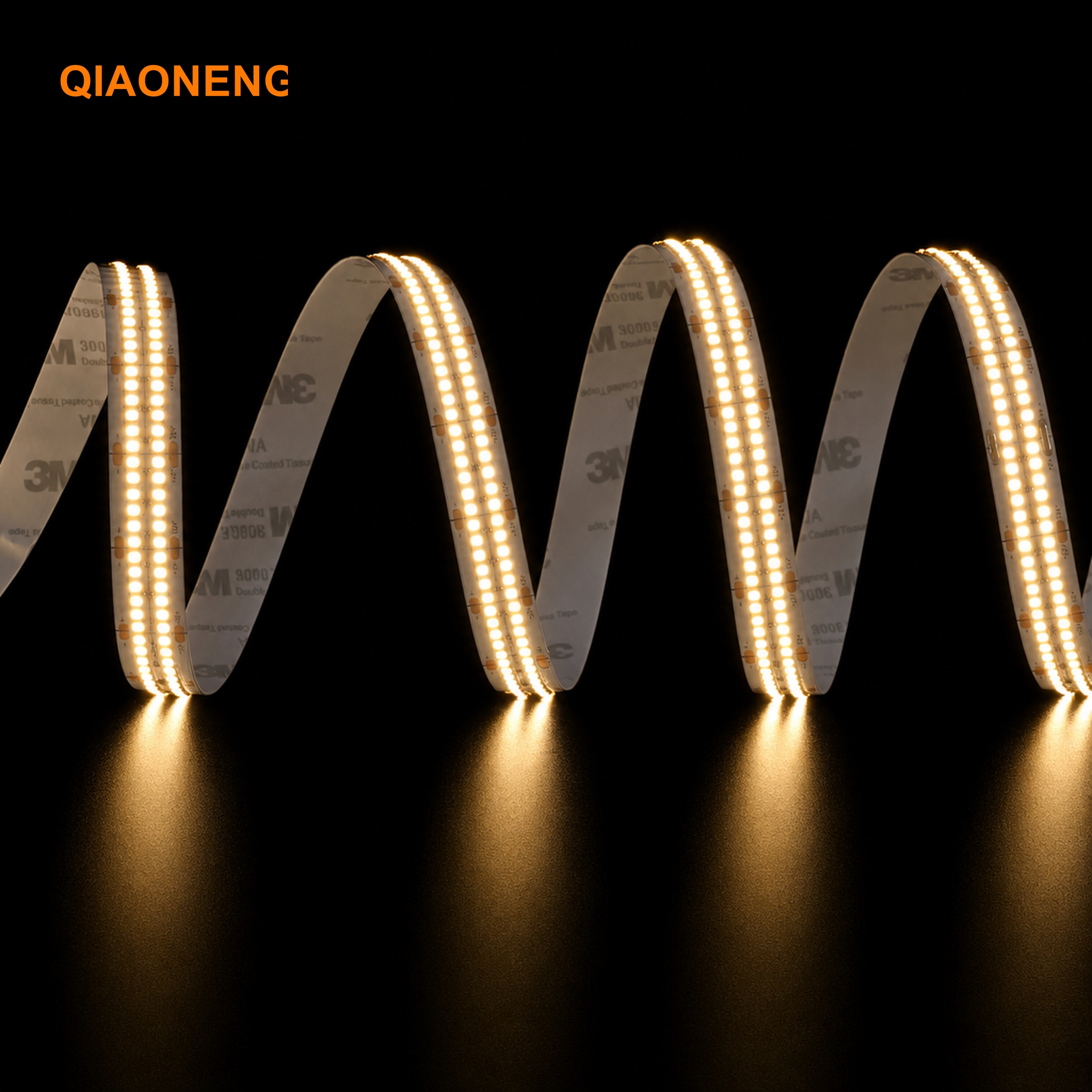

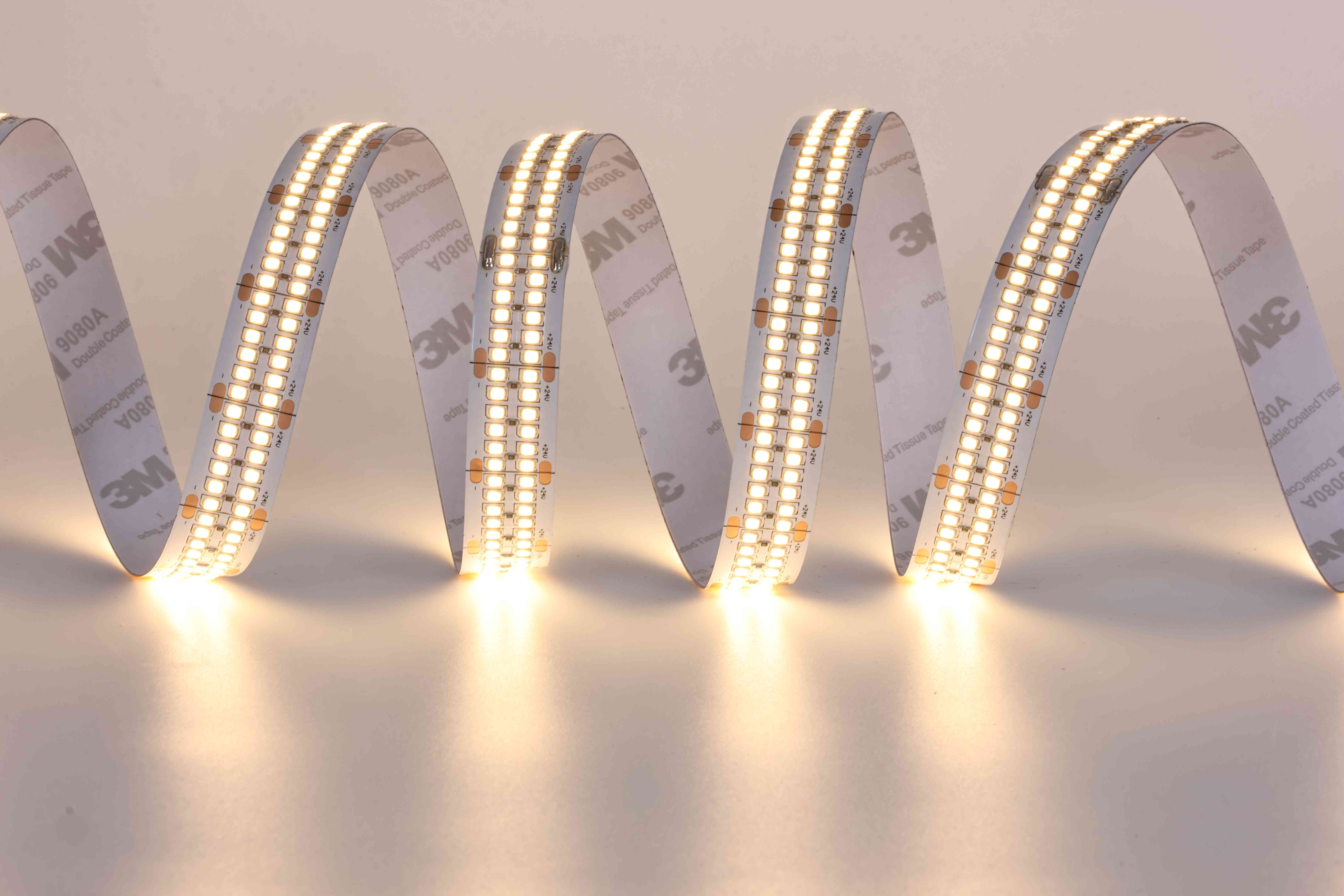

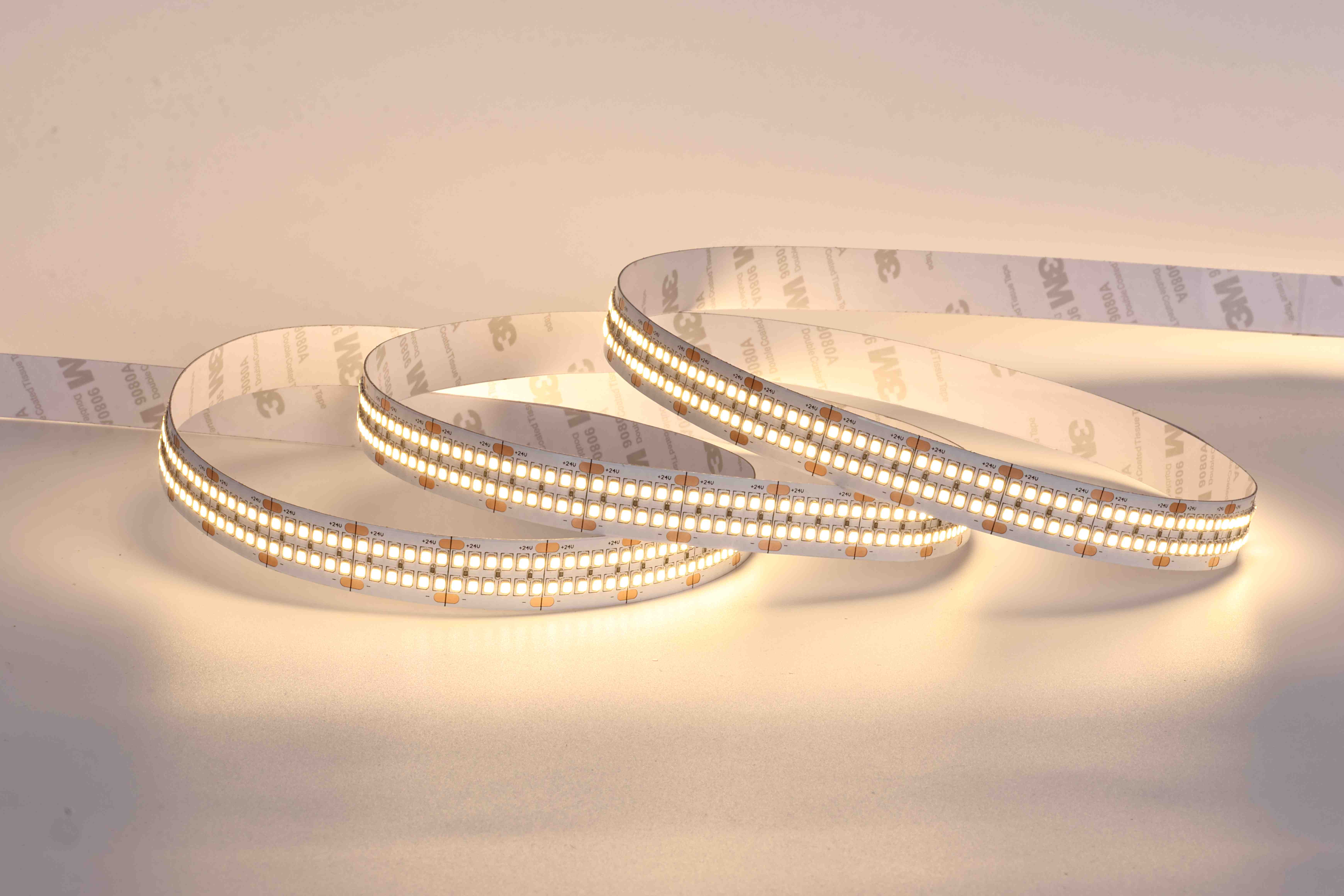

• 624 LEDs/M high-density output — 3300 lumens per metre, more than double the 1300 lm/m of the 420-LED model in the same series, with a continuous emitting surface rather than visible LED points.

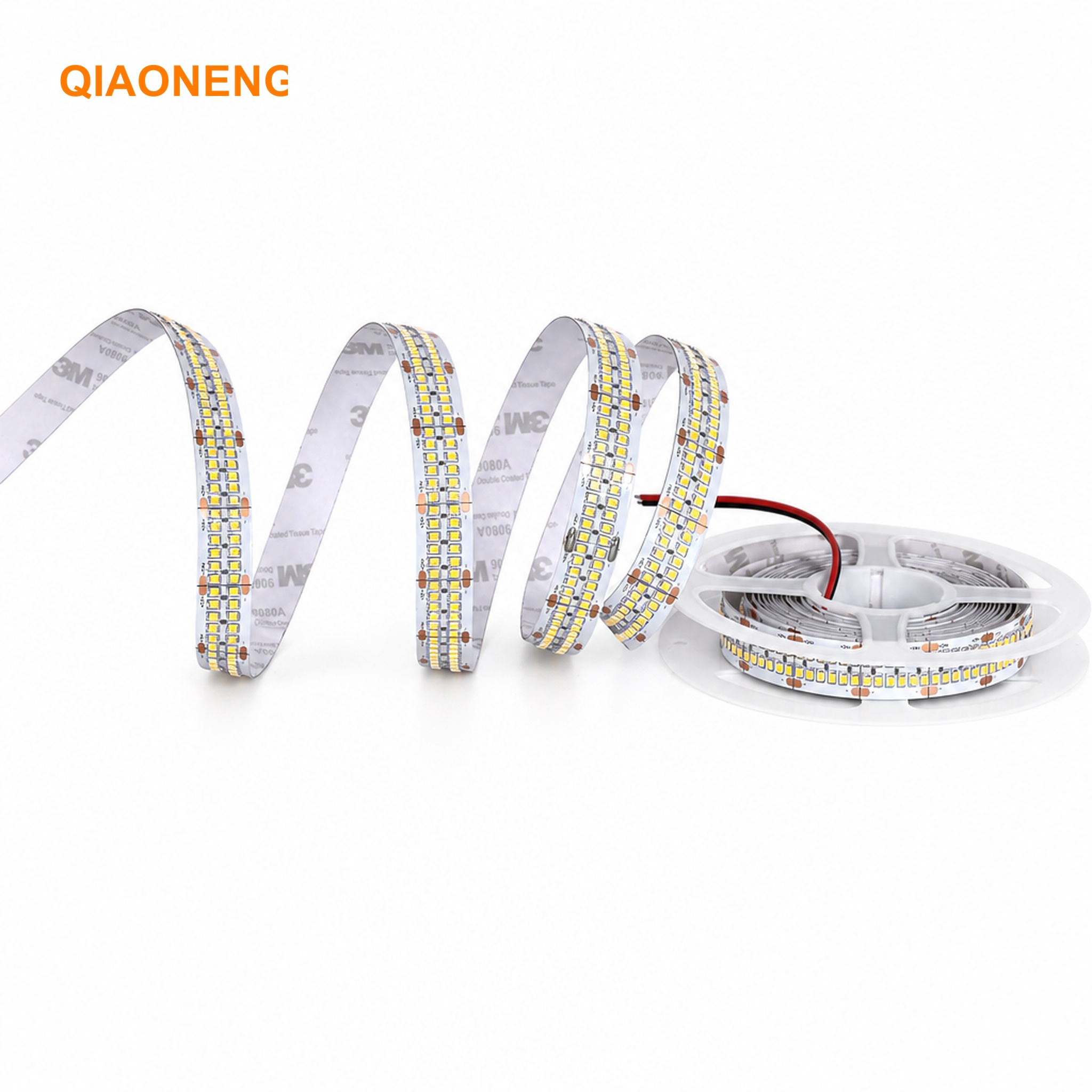

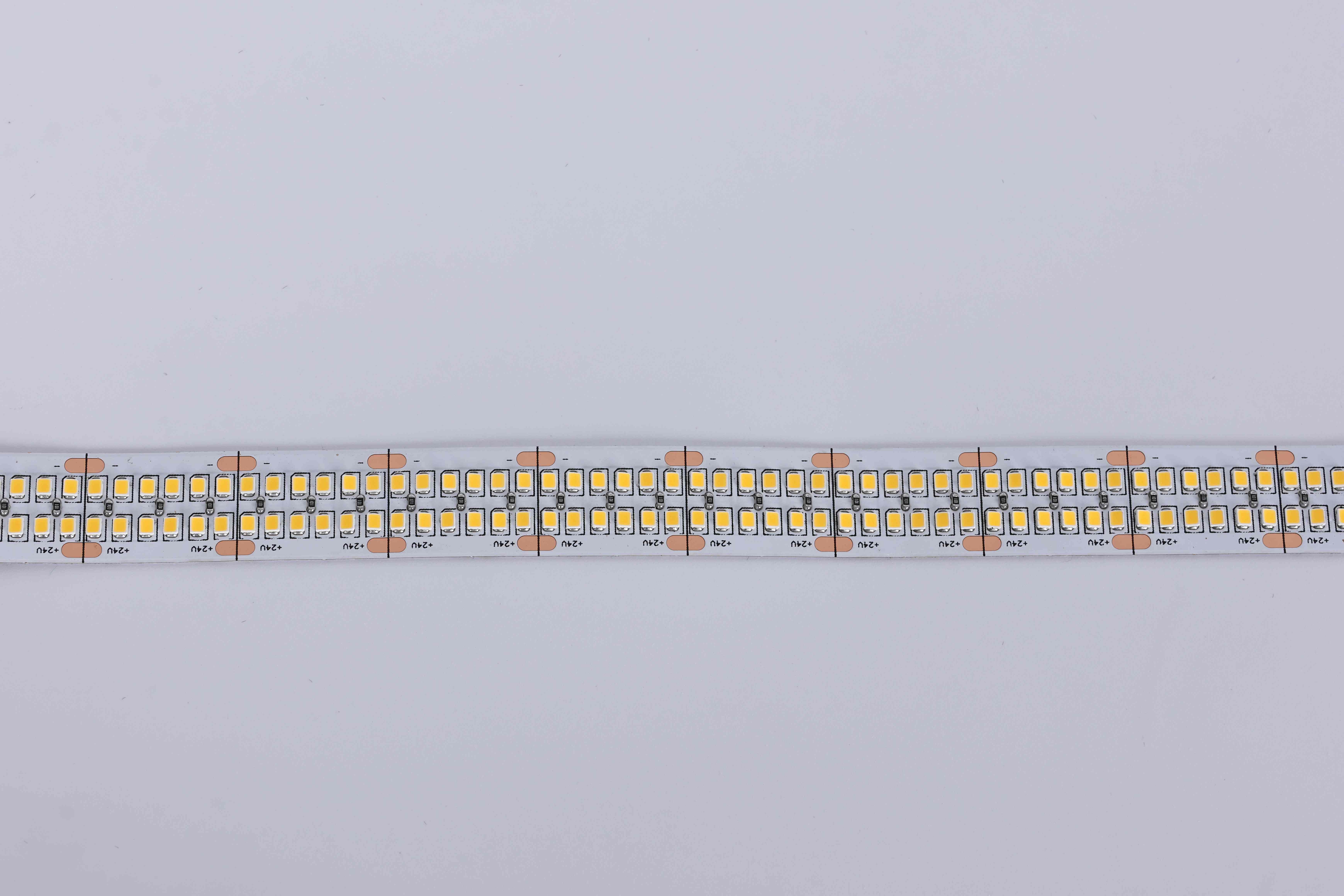

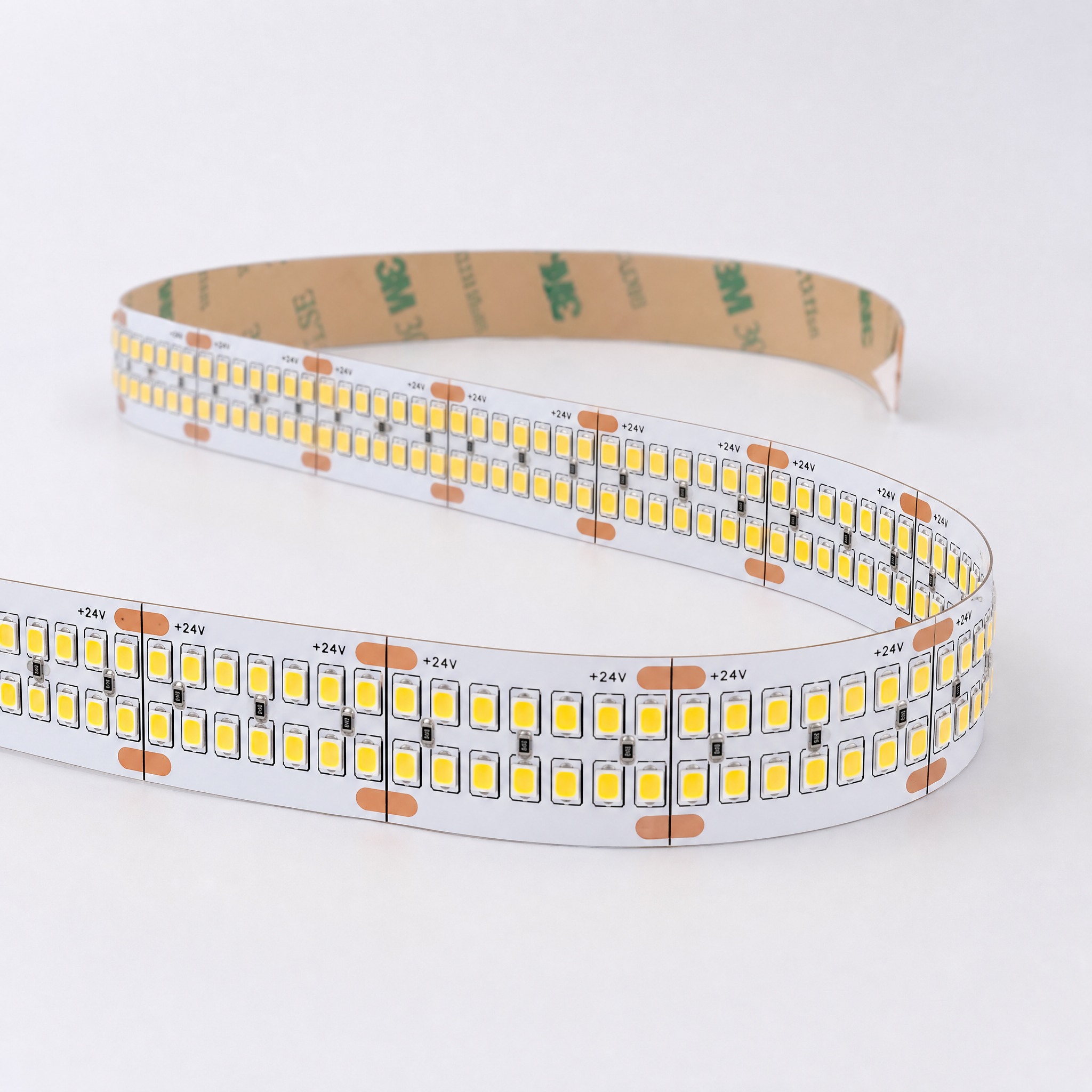

• 15mm board for thermal capacity — 5mm wider than the 10mm models in the range, carrying 624 chips and dissipating heat from 30W/m; confirm channel width accepts a 15mm board before ordering.
• Supplied with fixing clips — accessory set includes strip fixing clips, 2P connectors, and adhesive backing, supporting installations where adhesive alone is insufficient.
• Six colour temperature options at order — 2700K, 3000K, 3500K, 4000K, 5000K, 6500K specified when ordering; the strip is manufactured to a fixed colour temperature and is not field-switchable.
• 19.2mm cut interval — reasonably fine adjustment granularity for a board at this chip density, allowing length matching in fitted joinery.
• 24V operation — 1.25A per metre keeps current draw modest for the output, reducing voltage drop versus 12V high-output equivalents.
• L80B20 at 20,000 hours — retains 80% of initial output at 20,000 hours with MTBF rated at the same figure.
• CE / CB / RoHS certified — manufacturer-held certifications supporting European and international B2B procurement.

Application Scenarios

• Primary cove lighting in commercial spaces — 3300 lm/m provides genuine ambient illumination rather than decorative accent in hotel lobbies, restaurants, and retail units.
• Task lighting in workshops and studios — high output with continuous light face suits bench and worktop illumination where shadowing is a problem.

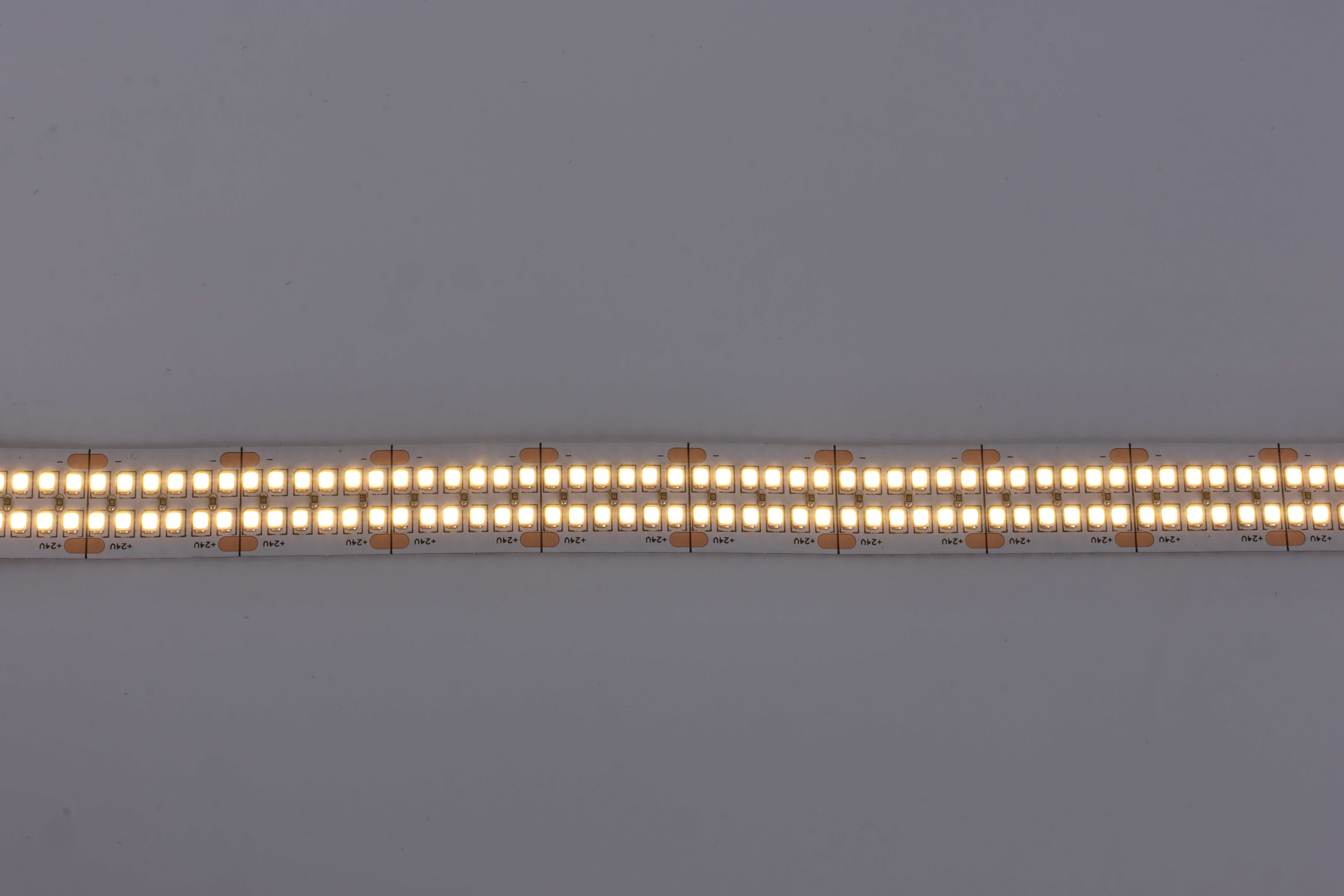

• Display and showcase lighting — dense 624 LEDs/M chip pitch renders merchandise without hotspot banding at close viewing distance.
• High-ceiling residential cove runs — output sufficient to wash tall coves where lower-lumen strips lose intensity before reaching the ceiling plane.
• Architectural feature reveals — continuous light line in wide reveals and recesses; confirm the 15mm board fits the intended profile.
• Reception and conference room perimeters — six colour temperature options allow matching to 4000K corporate standards or warmer hospitality schemes.

Technical Specifications

• Model No. — JNL-L-024V-2025-0624-15-S1XX
• Item No. — 101300228
• LED type — 2025 SMD
• LED quantity — 624 PCS/m
• Rated voltage — 24 V DC
• Rated power — 30 W/m ± 10%
• Input current — 1.25 A @ 1m
• Luminous flux — 3300 lm/m
• Colour temperature — 2700 / 3000 / 3500 / 4000 / 5000 / 6500 K (specified at order)
• Colour rendering index — Ra 80
• SDCM — ≤ 5
• Beam angle — 120°
• Lumen maintenance — L80B20 @ 20,000 h
• Energy efficiency class — F
• Ingress protection — IP20 (indoor dry location only)
• Outline dimensions — W15 × H1.2 ± 0.5 mm
• Surface material — Bare PCB (no silicone sleeve)
• Cut length — 19.2 mm

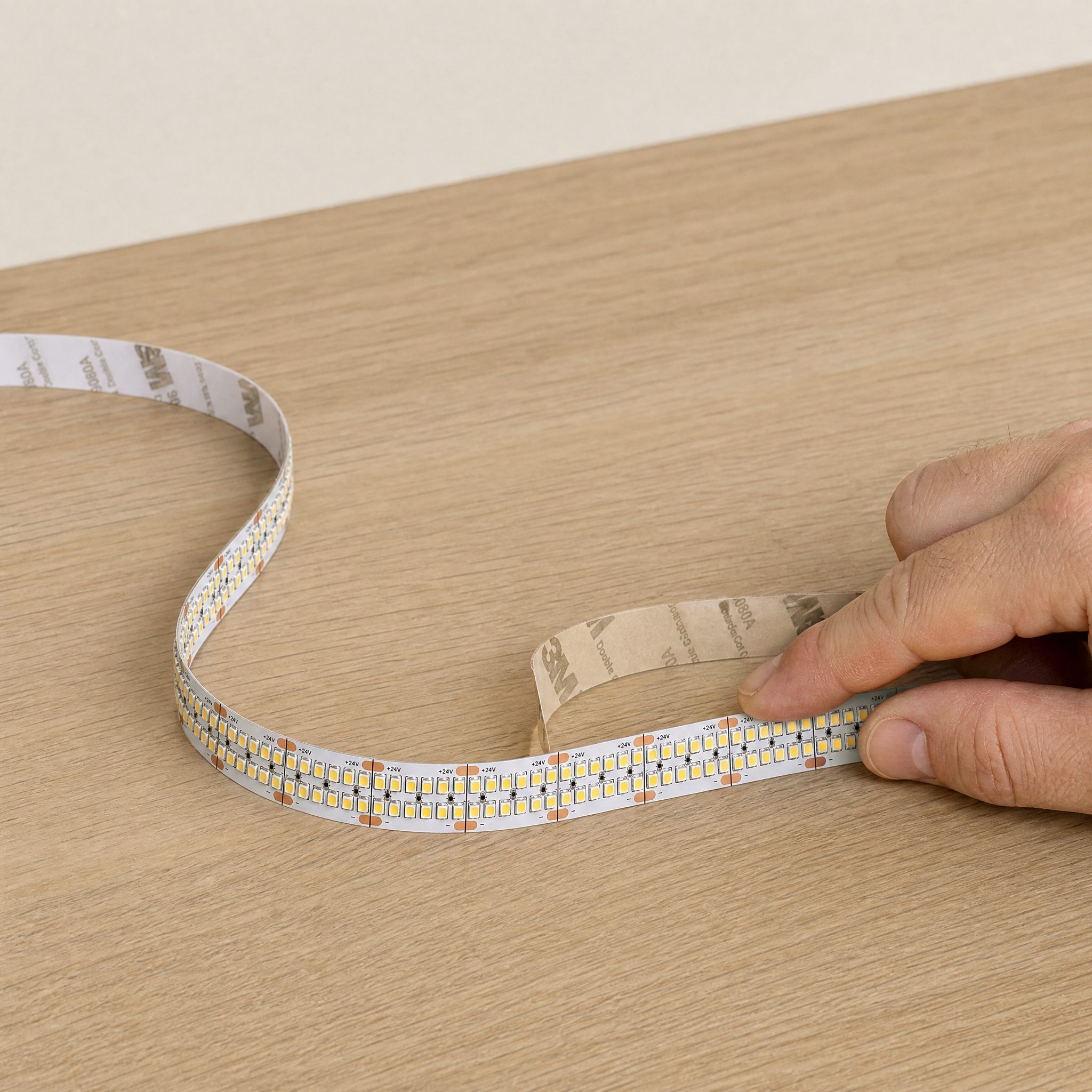

• Mounting method — Double-sided adhesive tape film
• Dimming method — Turn on the power and it lights up
• Switching cycles — 15,000 times
• Operating temperature — -25°C to +45°C
• Storage temperature — -40°C to +60°C
• Relative humidity — 10–90%
• MTBF — 20,000 h
• Accessories — Strip fixing clips, 2P connectors, double-sided adhesive tape

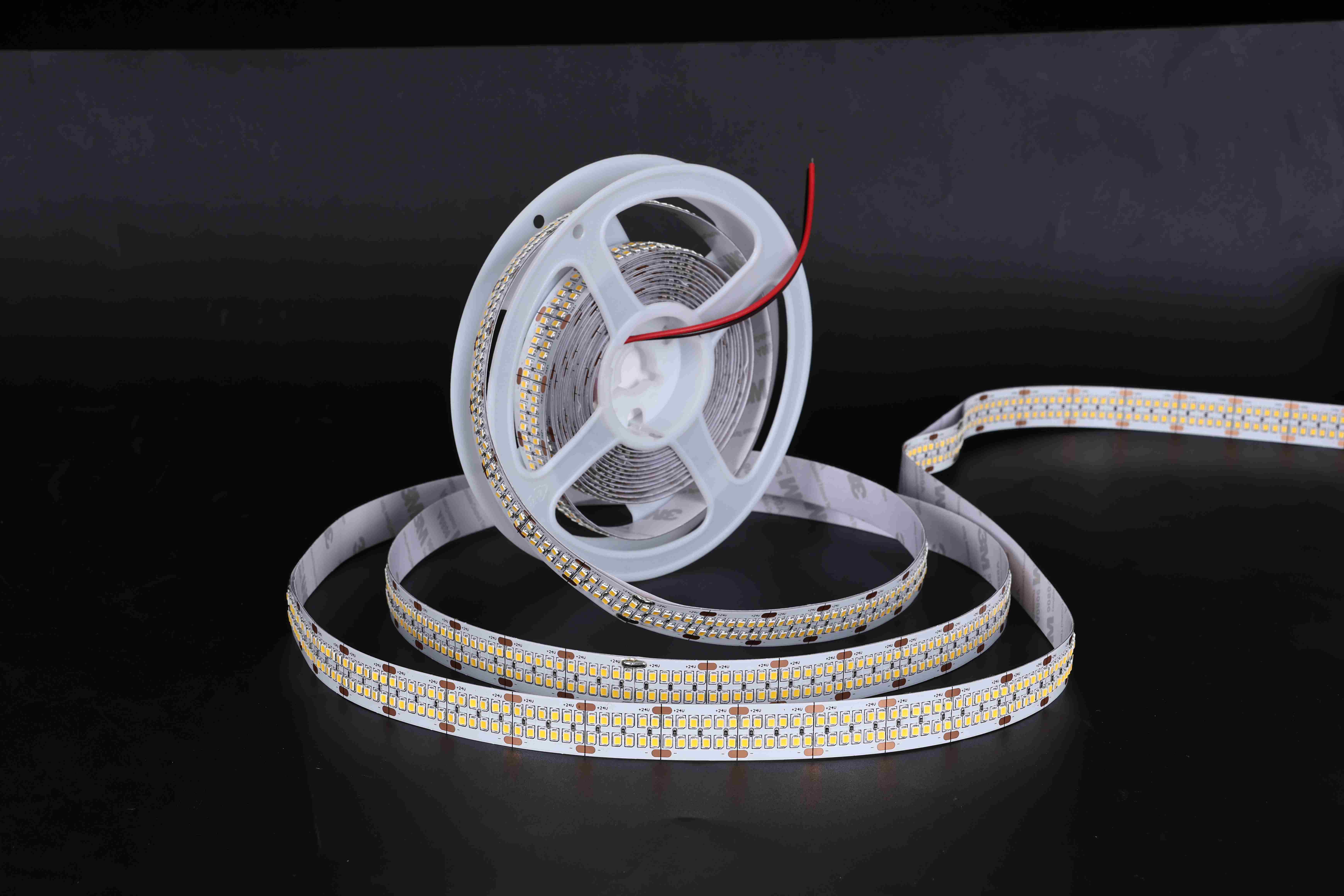

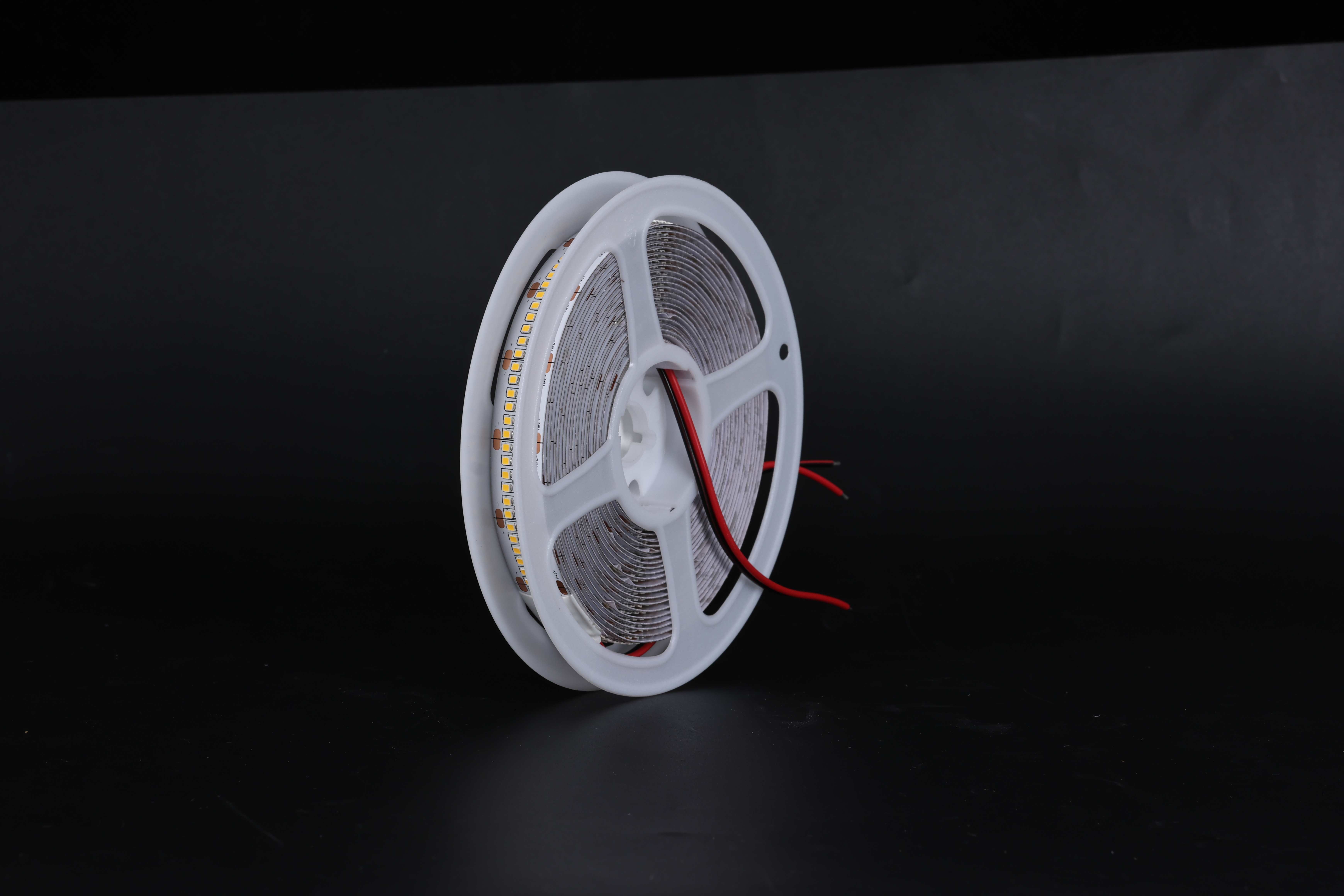

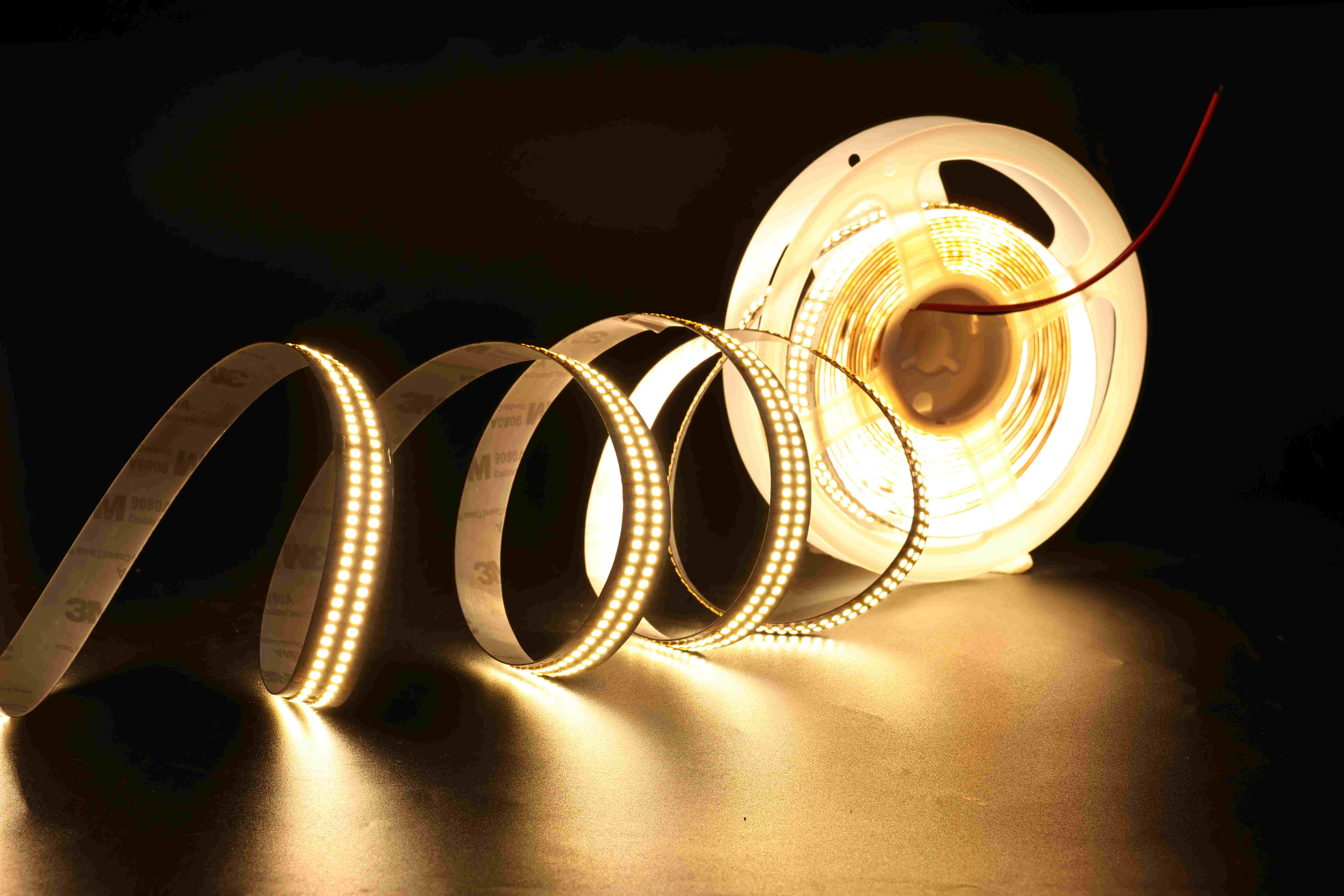

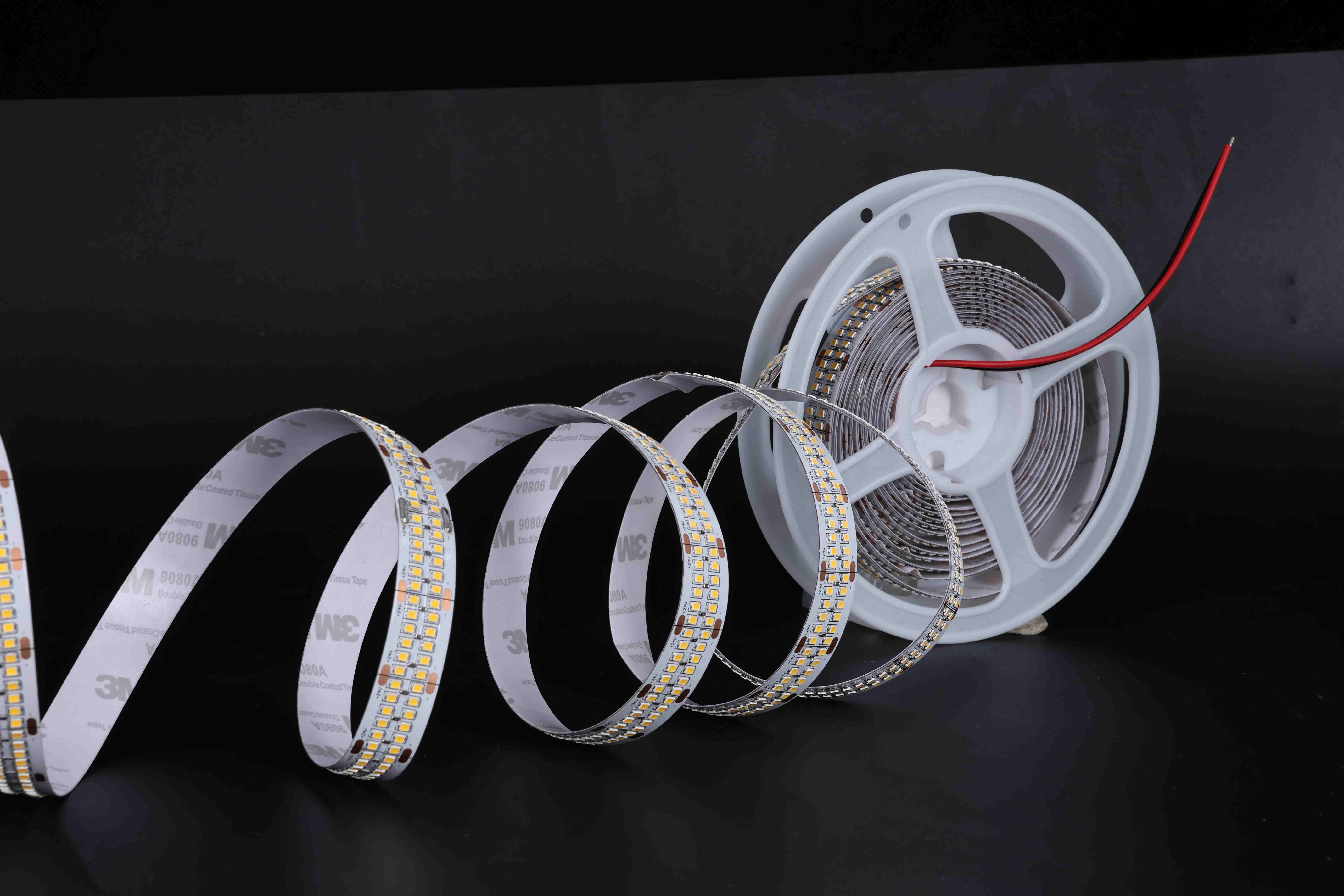

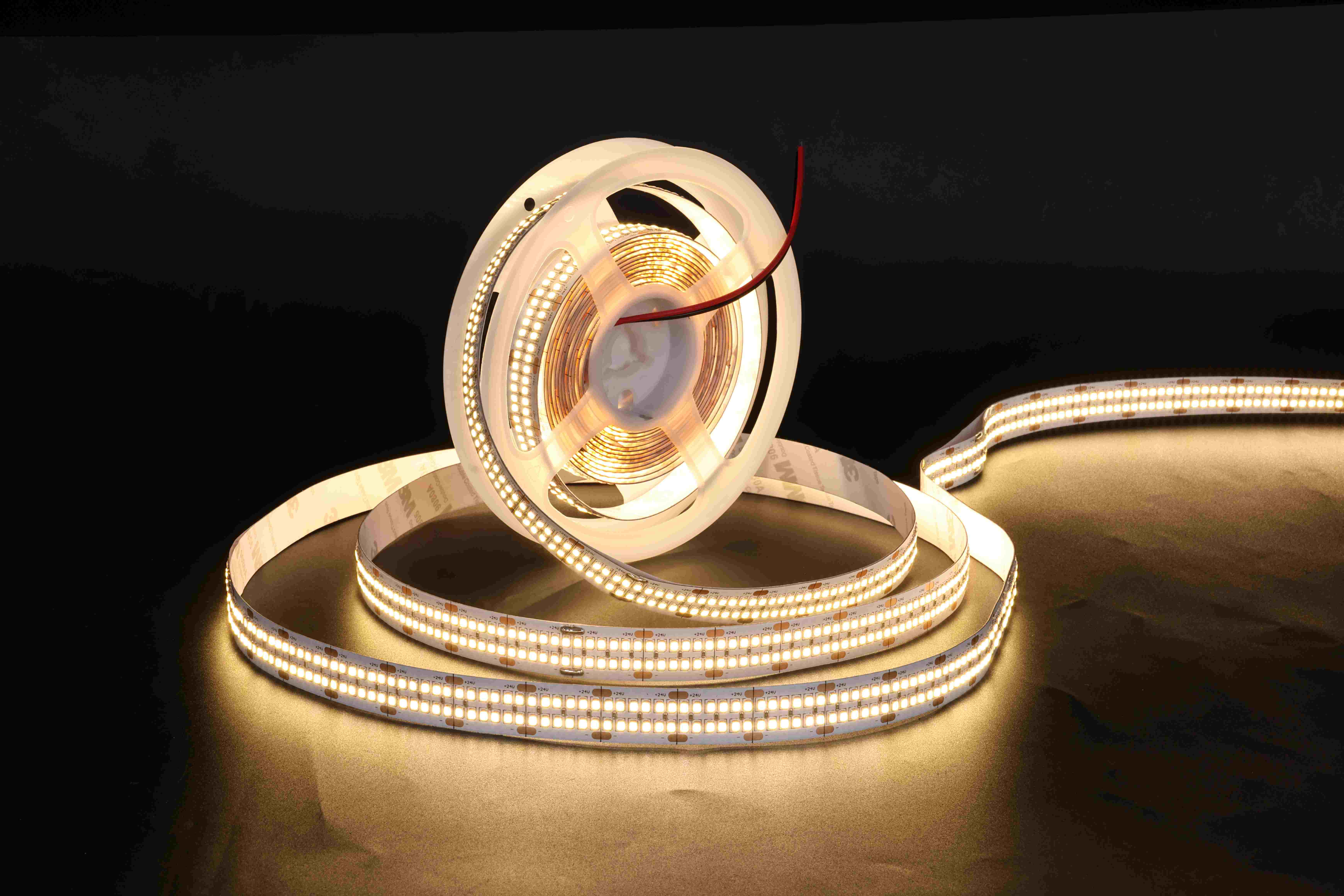

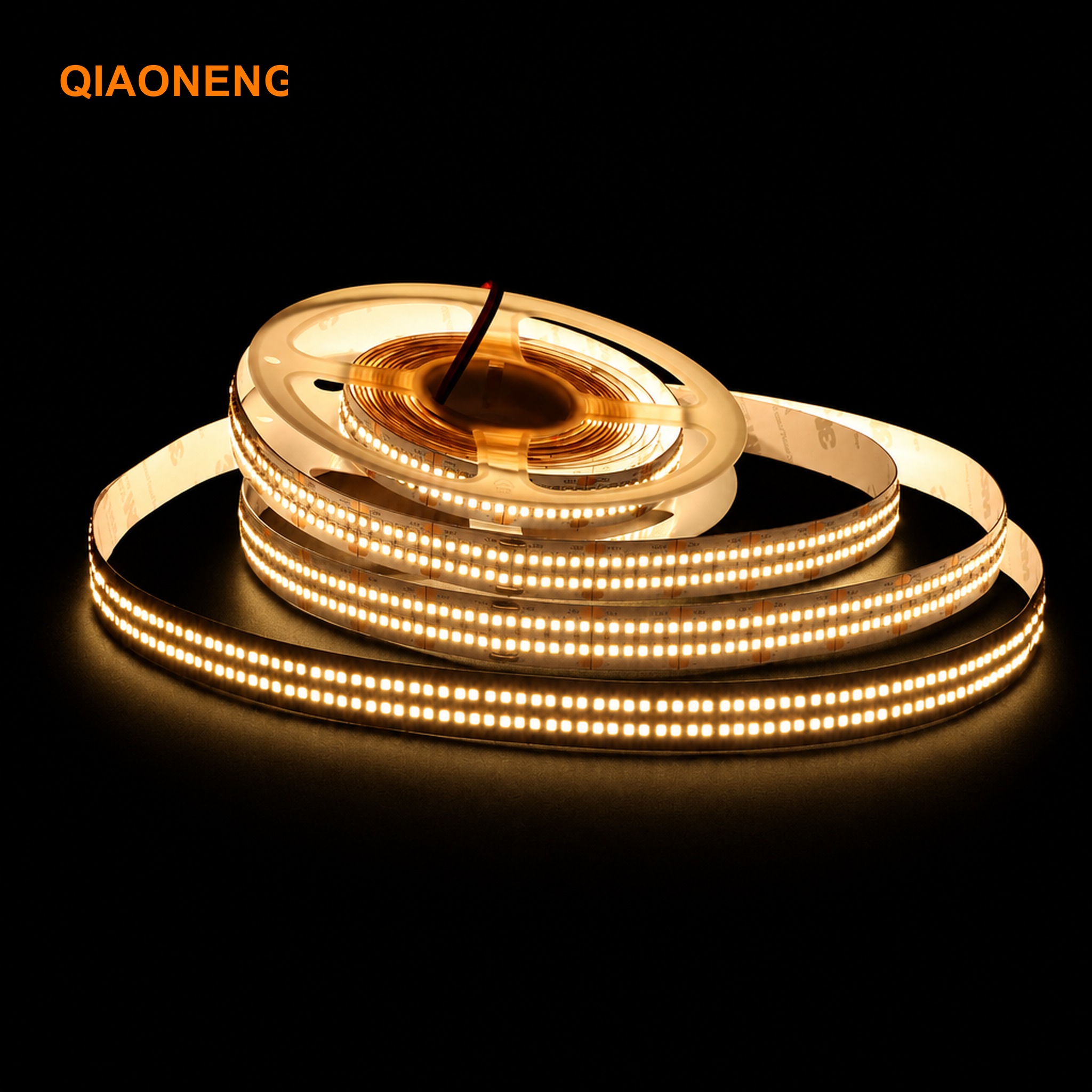

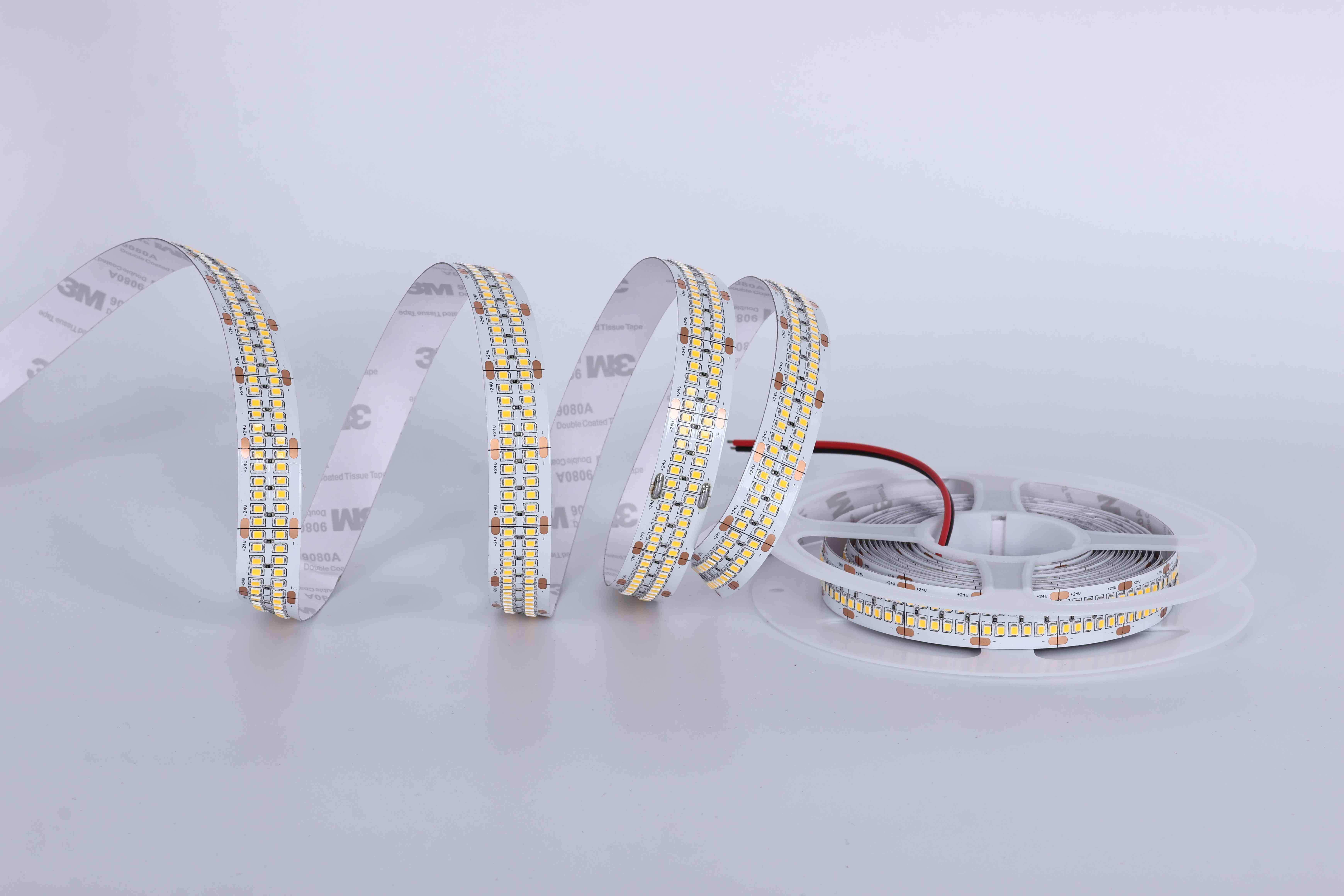

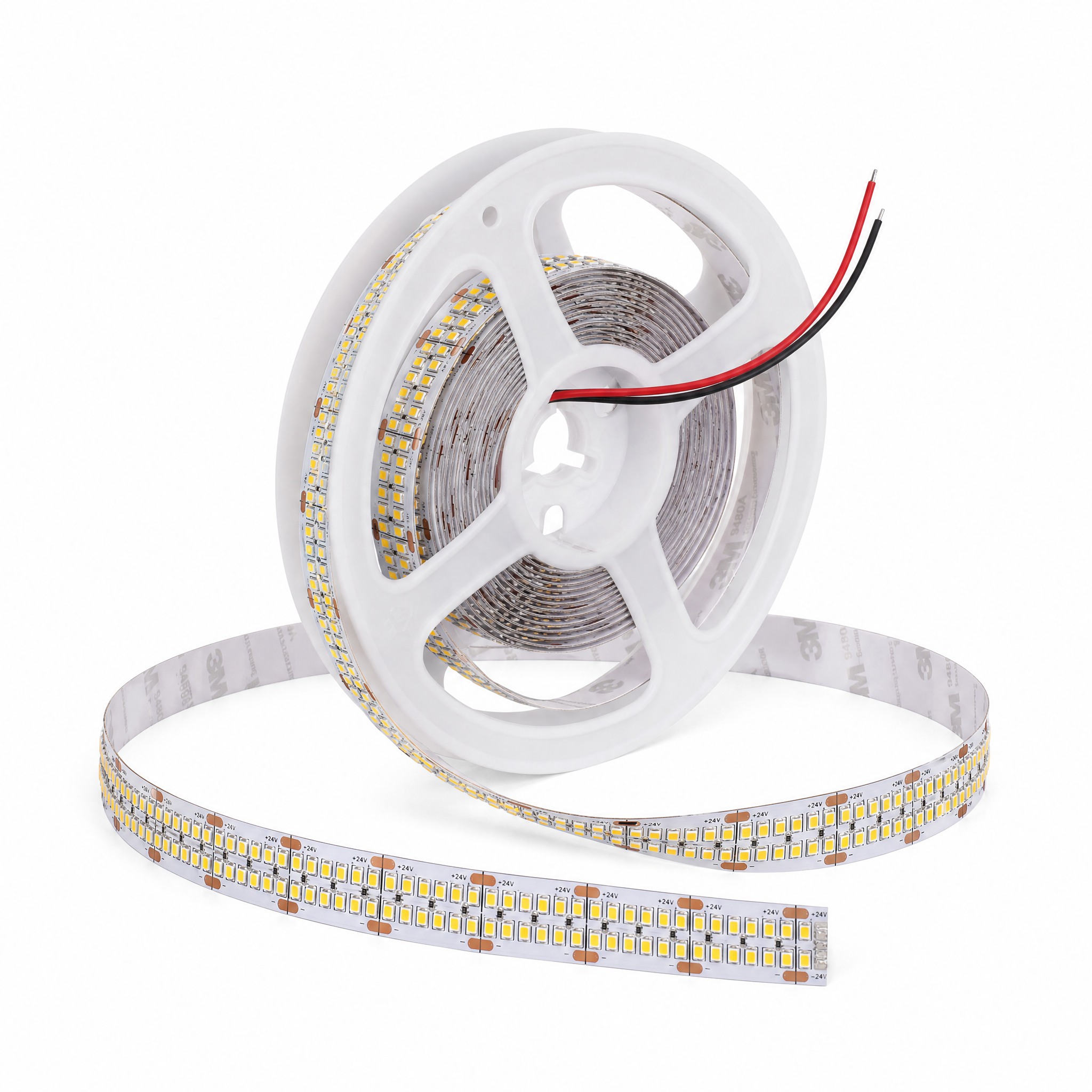

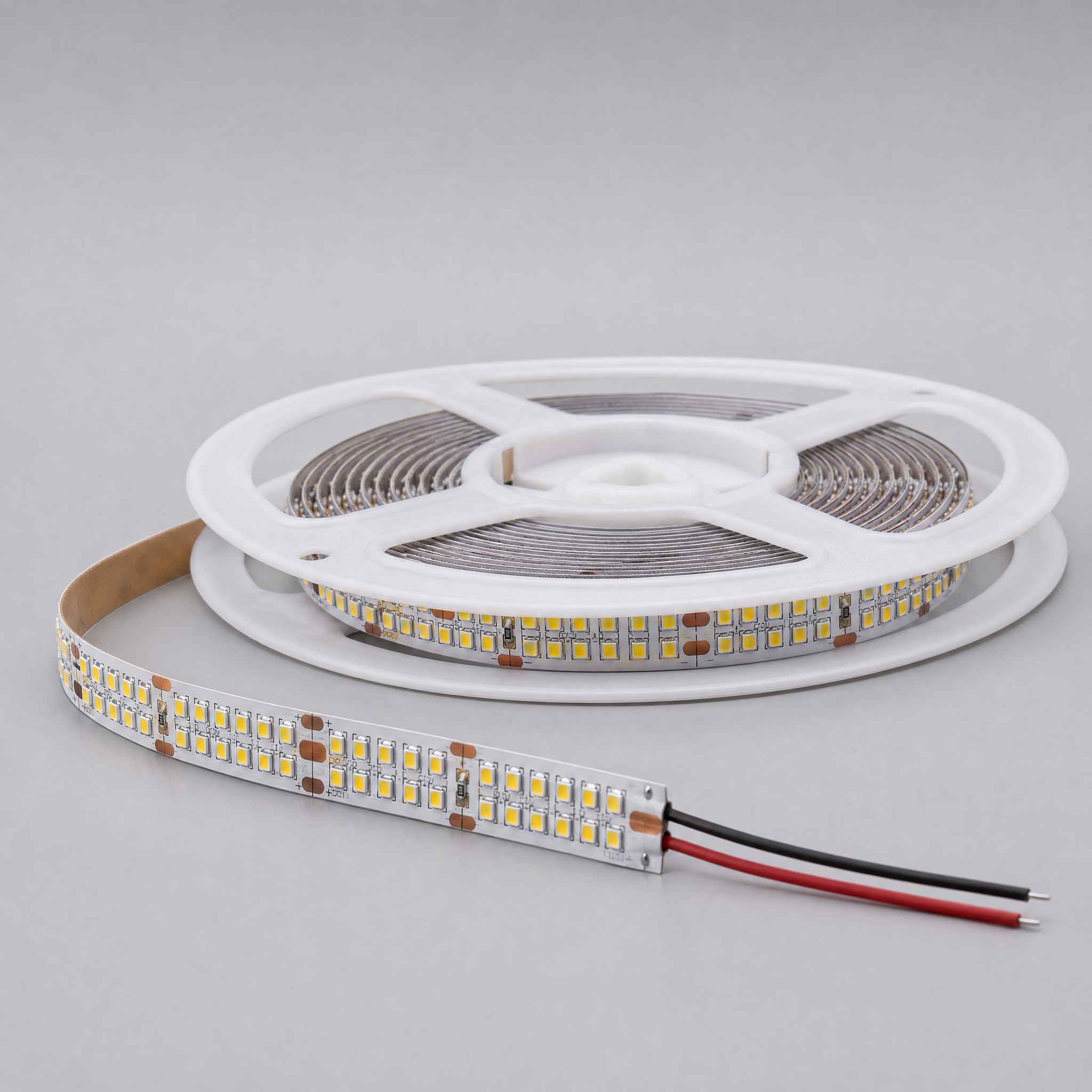

• Packing — Reel + ESD bag + Inner box + Carton
• Packing quantity — 5 m/roll × 100 rolls = 500 m per carton
• Certification — CE / CB / RoHS
