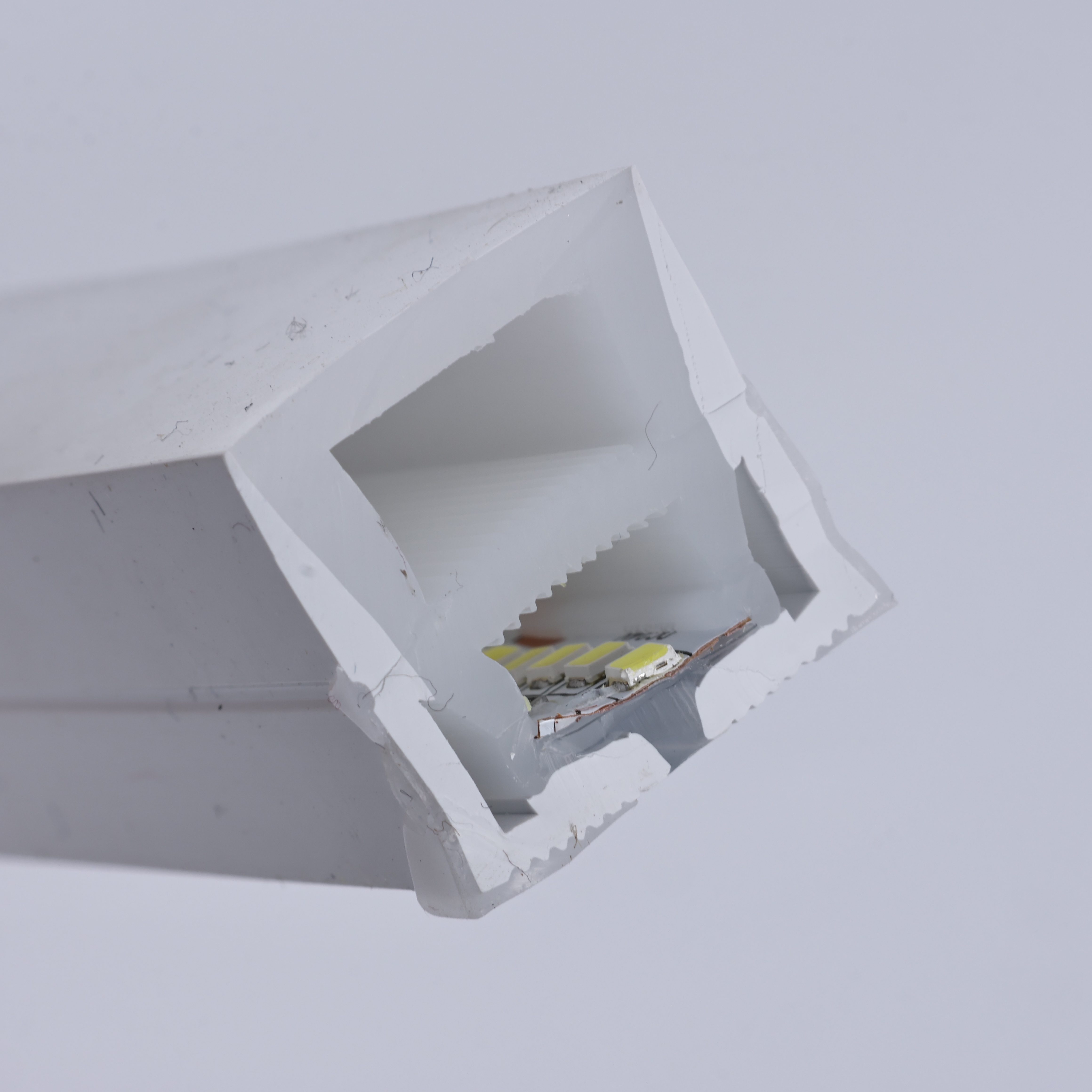

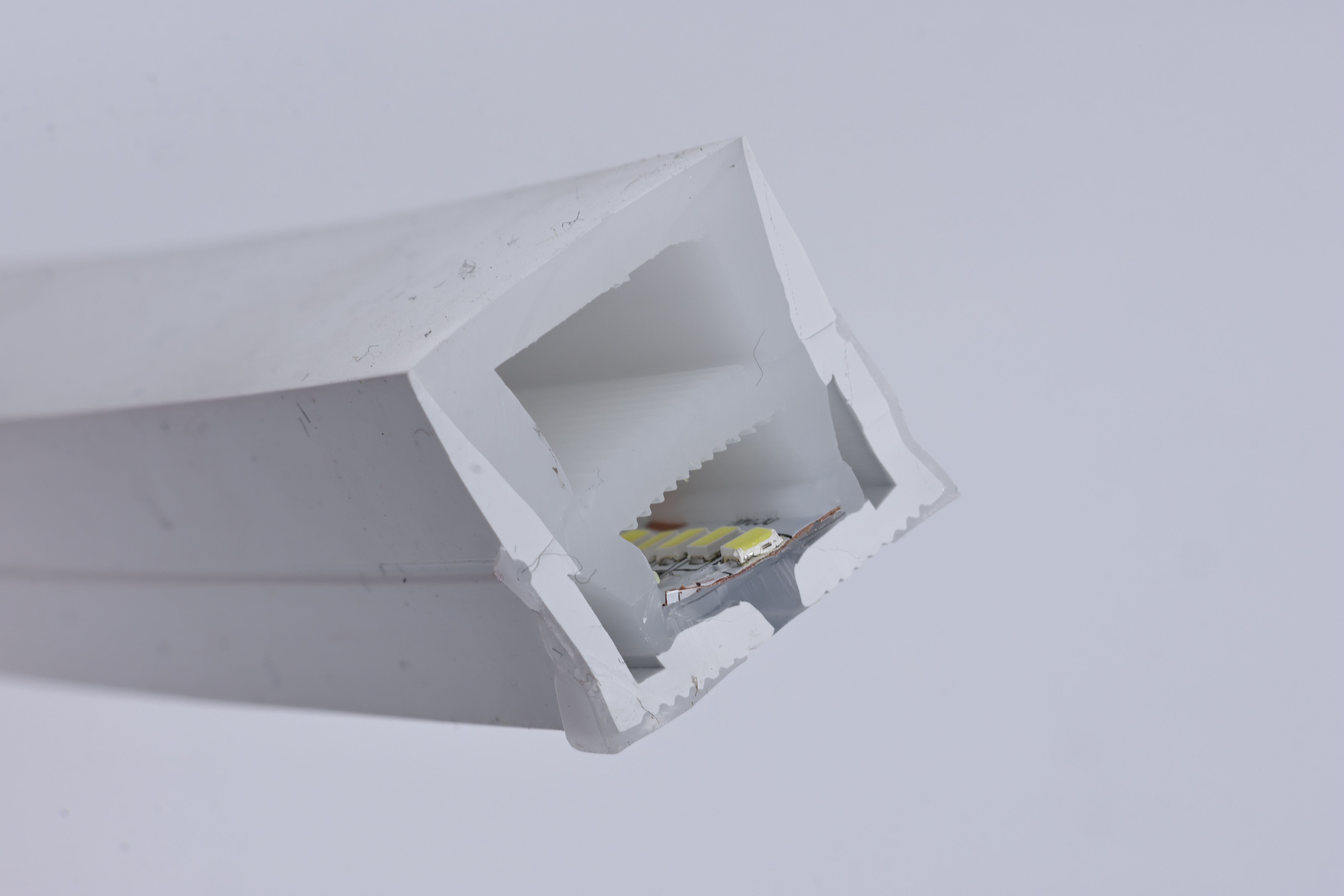

Construction follows the G series silicone neon standard: gas-phase silicone jacket, continuous dot-free emitting face, and IP68 protection for both indoor and outdoor use across a -25°C to +45°C operating range. Colour temperature is specified at order from the Tri-CCT 3-in-1 range: 3000K, 4000K, or 6500K, cutting every 25mm.

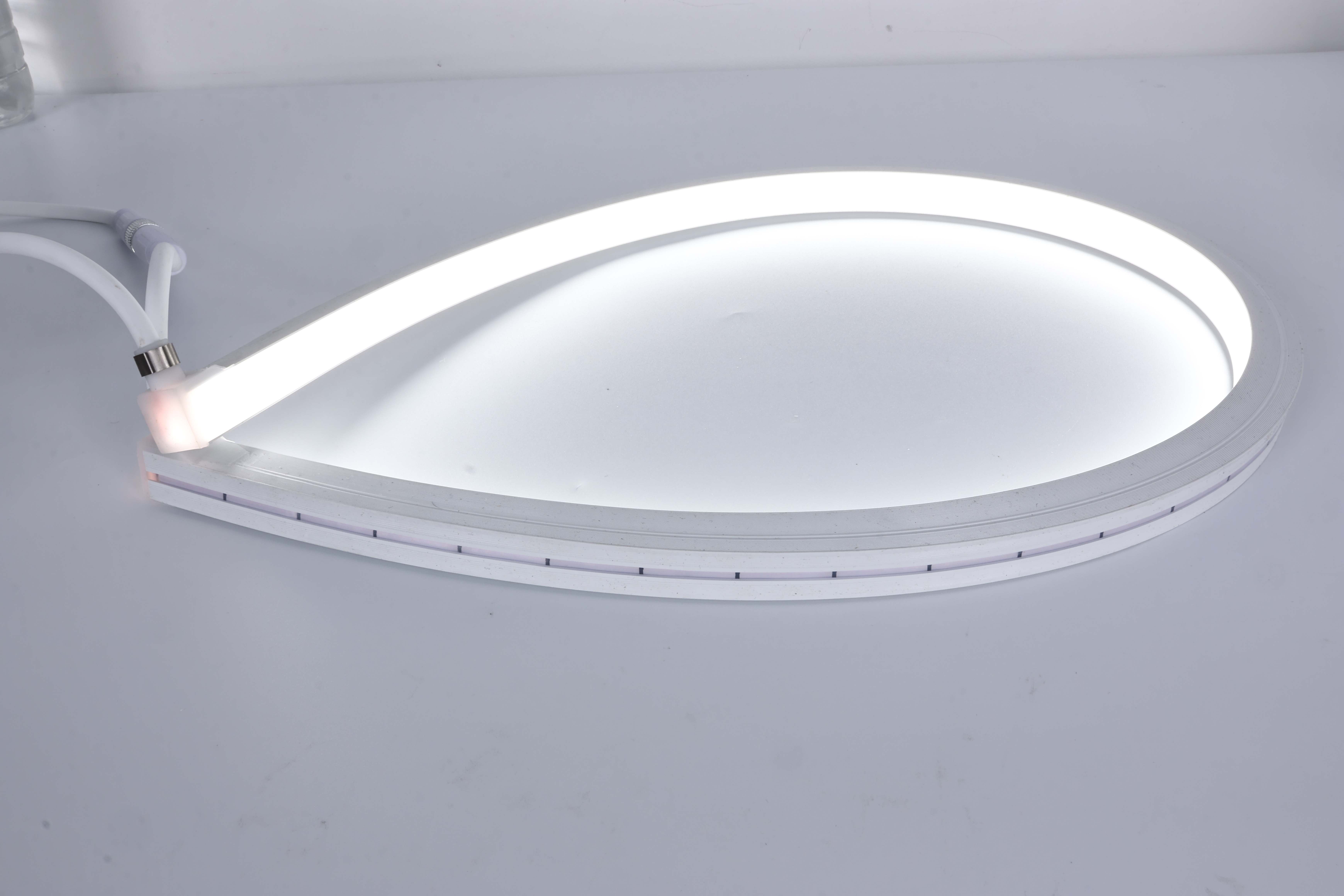

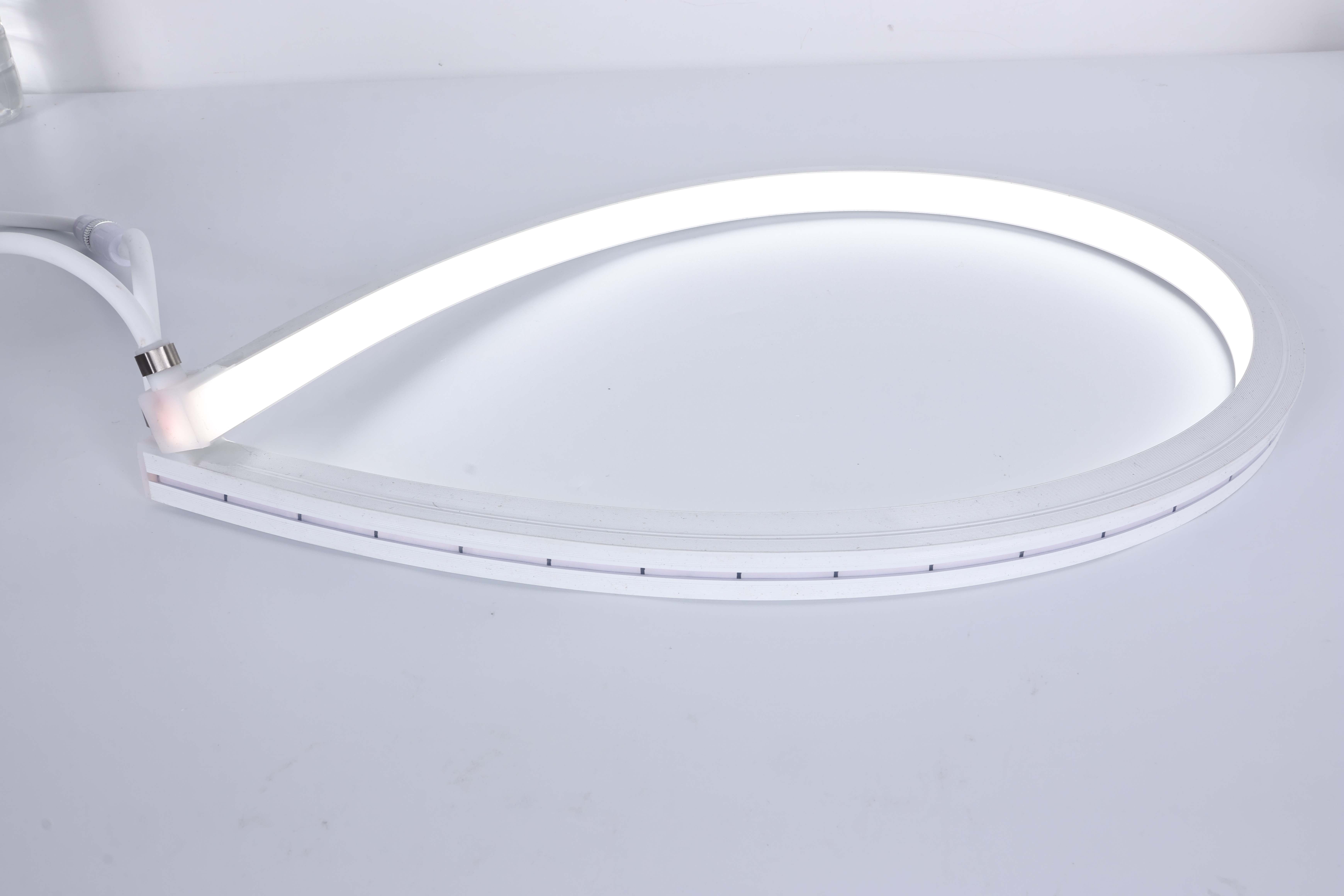

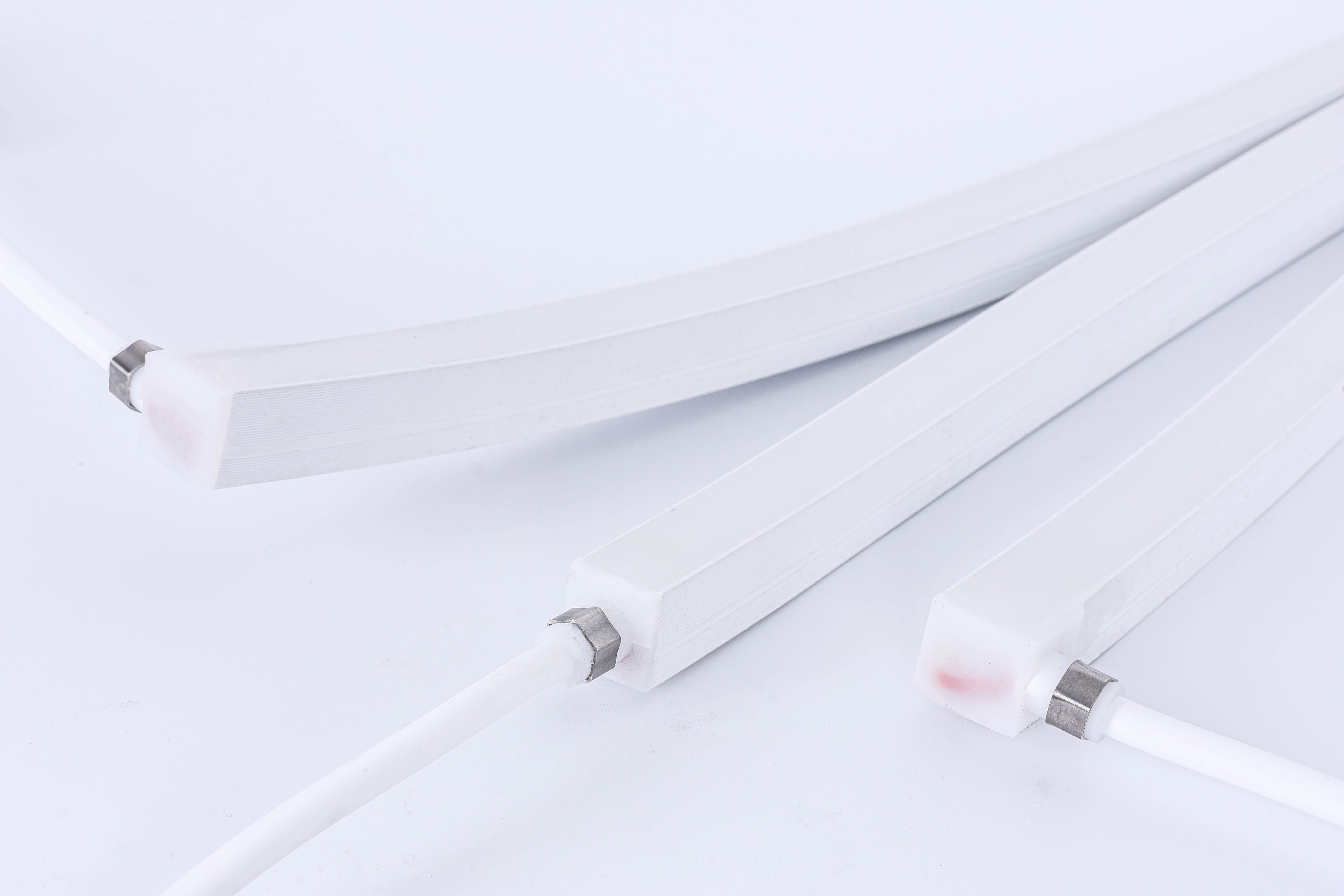

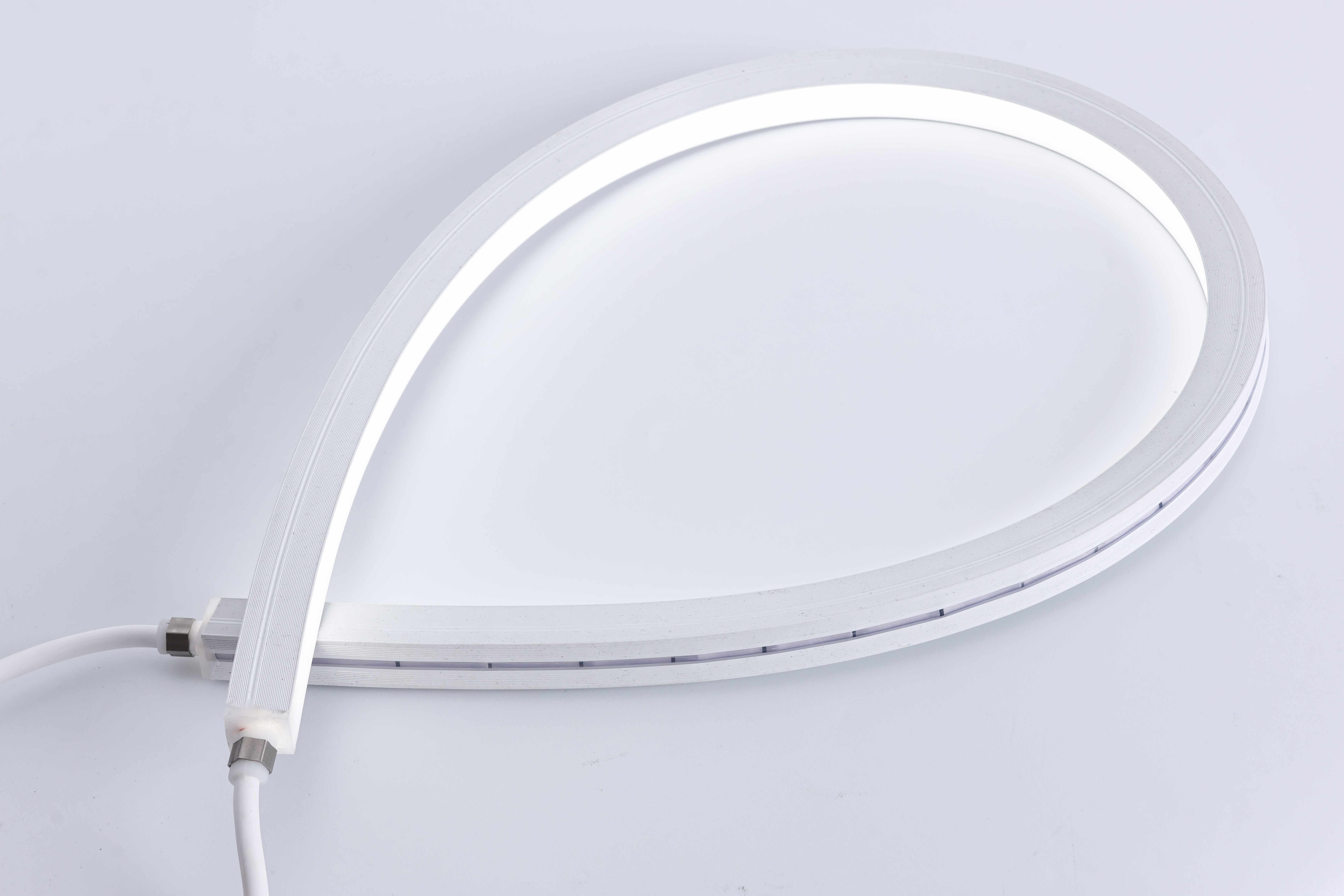

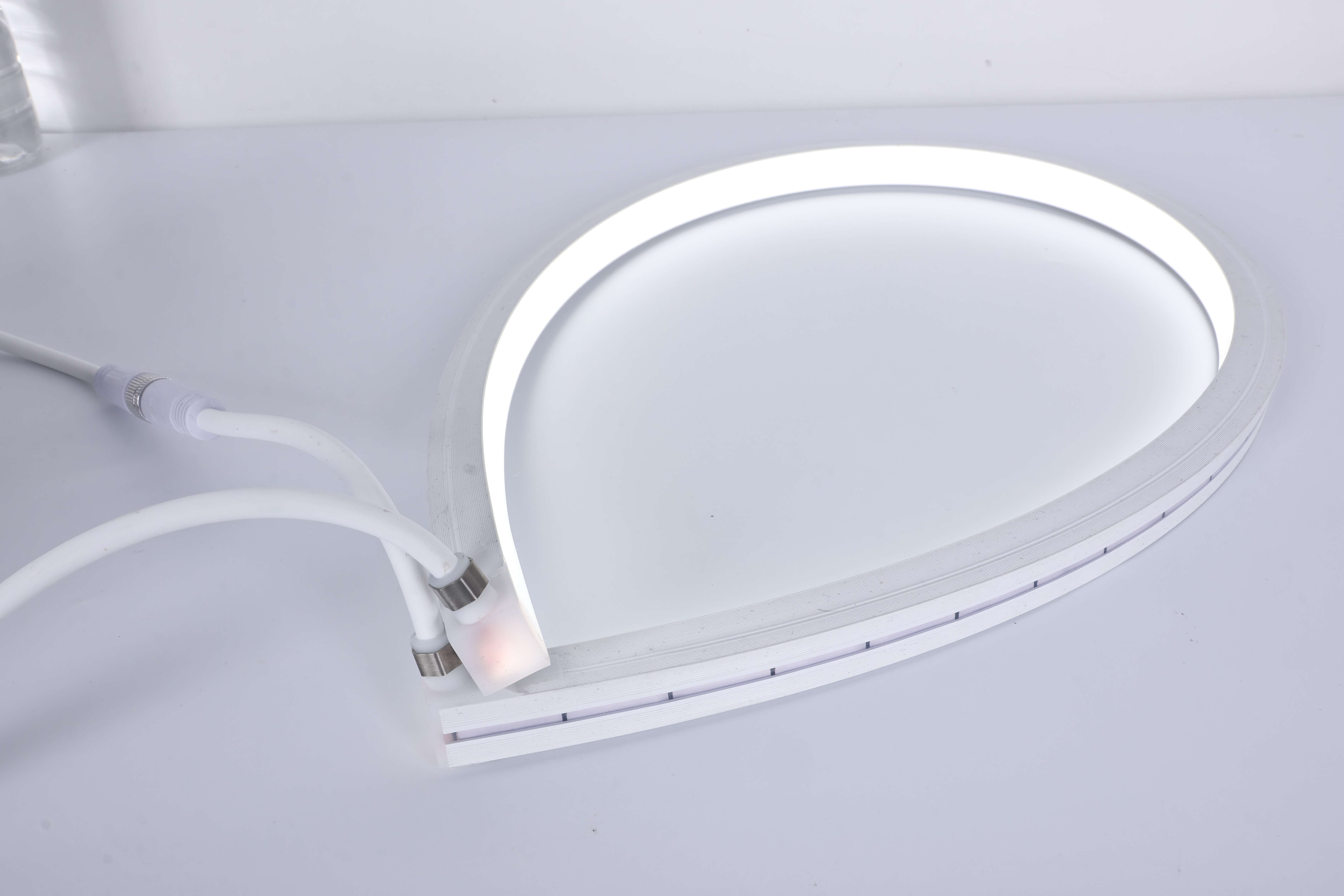

At 16x16mm, this strip steps up to a mid-range profile size in the G series square family — larger than the 10x10mm and 12x12mm ranges, and positioned for facade, ceiling cove, and architectural accent applications where a more substantial light source and higher output are the priority. It carries 240 2835 LEDs per metre at 24V DC, delivering 900 lm/m from 15W, front-emitting through the standard continuous silicone diffusion layer.
At this profile size, output moves well beyond typical cabinet lighting territory into genuine architectural accent brightness — 900 lm/m is nearly double the output of the entry 10x10mm models in the range, at a correspondingly higher power draw of 0.63A per metre. This makes the 16x16mm profile the practical minimum size for facade lines and prominent cove applications where visibility from a distance matters.
| Parameter | Details |
|---|---|
| Model No. | JNL-G-024V-2835-0240-10-S1XX-005-YYYY-15-68 |
| Item No. | 103500001 |
| Rated power | 15.0 W/m ± 10% |
| Rated voltage | 24 V DC |
| Input current | 0.63 A |
| LED type | 2835 |
| LED quantity | 240 PCS/m |
| Luminous flux | 900 lm/m |
| Colour temperature | Tri-CCT 3000 / 4000 / 6500 K (3-in-1, specified at order) |
| Colour rendering index | Ra 80 |
| SDCM | ≤ 5 |
| Beam angle | 120° |
| Lumen maintenance | L80B20 @ 50,000 h |
| Energy efficiency class | G |
| Ingress protection | IP68 |
| Outline dimensions | W16 × H16 ± 0.5 mm |
| Surface material | Silicone |

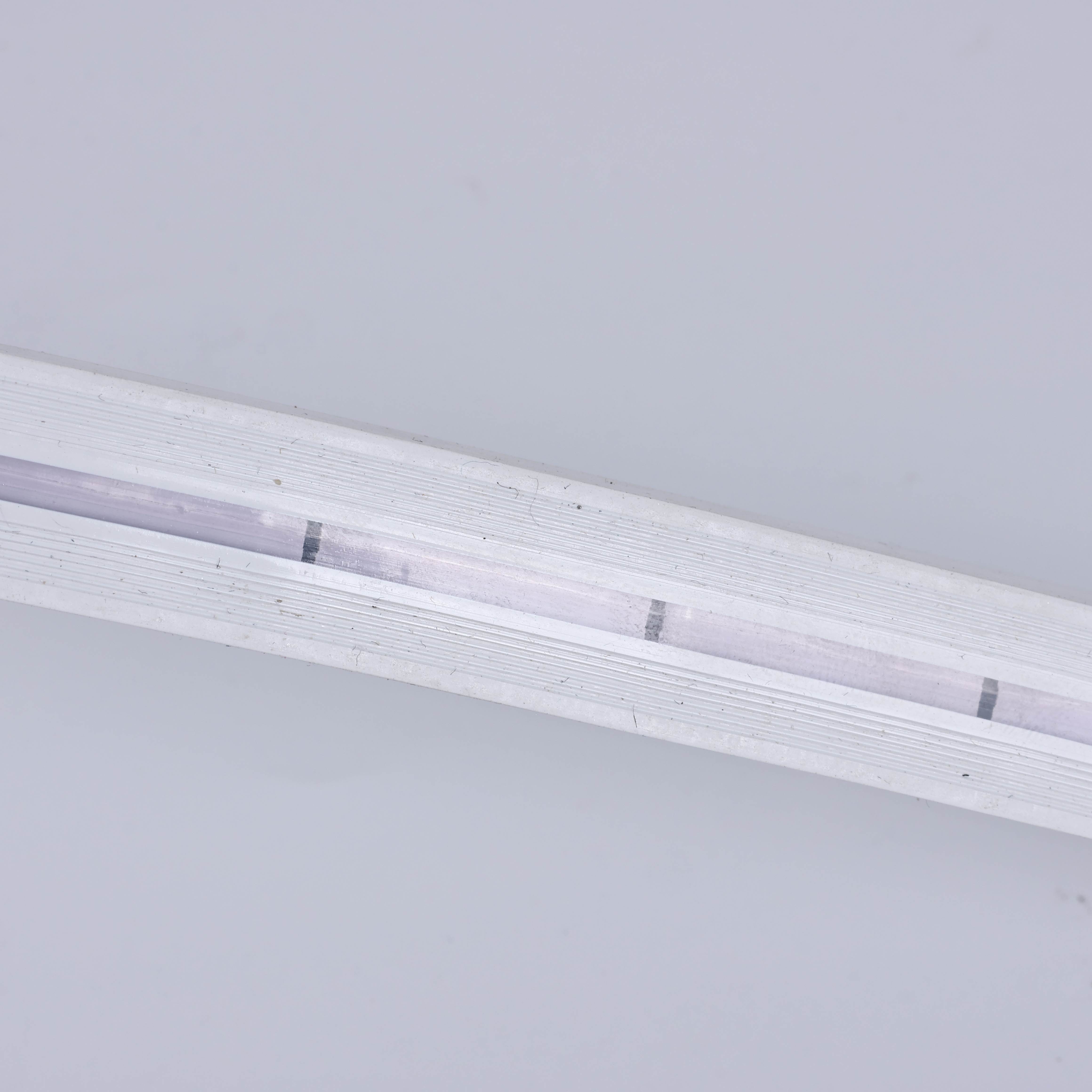

| Cut length | 25 mm |
| Mounting | Fixed Clamp |
| Dimming method | Turn on the power and it lights up |
| Switching cycles | 15,000 times |
| Operating temperature | -25 °C to +45 °C |
| Relative humidity | 10–90% |
| Storage temperature | -40 °C to +60 °C |
| MTBF | 50,000 h |
| Packing | ESD bag + box + carton |
| Packing quantity | 5 m/roll × 10 rolls = 50 m per carton |
Tools needed: scissors or side cutters, clean dry cloth, fixed clamp accessories.
Steps:
Driver sizing for this profile: at 15W per metre, a 5-metre run draws 75W nominal. Size the 24V driver with at least 20% headroom for reliable long-term operation.
| Option | Details |
|---|---|
| Colour temperature | Tri-CCT 3000 / 4000 / 6500 K, specified at order |
| CRI | Customisable on request |
| Luminous flux | Customisable on request |
| Length | 5 m per roll standard; cuttable every 25 mm |
| Packaging | ESD bag + box + carton standard; neutral or branded packaging available |
| OEM / ODM | Private label and custom packaging supported |
| MOQ | 50 sets |
| Accessory | Description |
|---|---|
| Fixed Clamp | Supplied 5 pcs per roll for mounting |

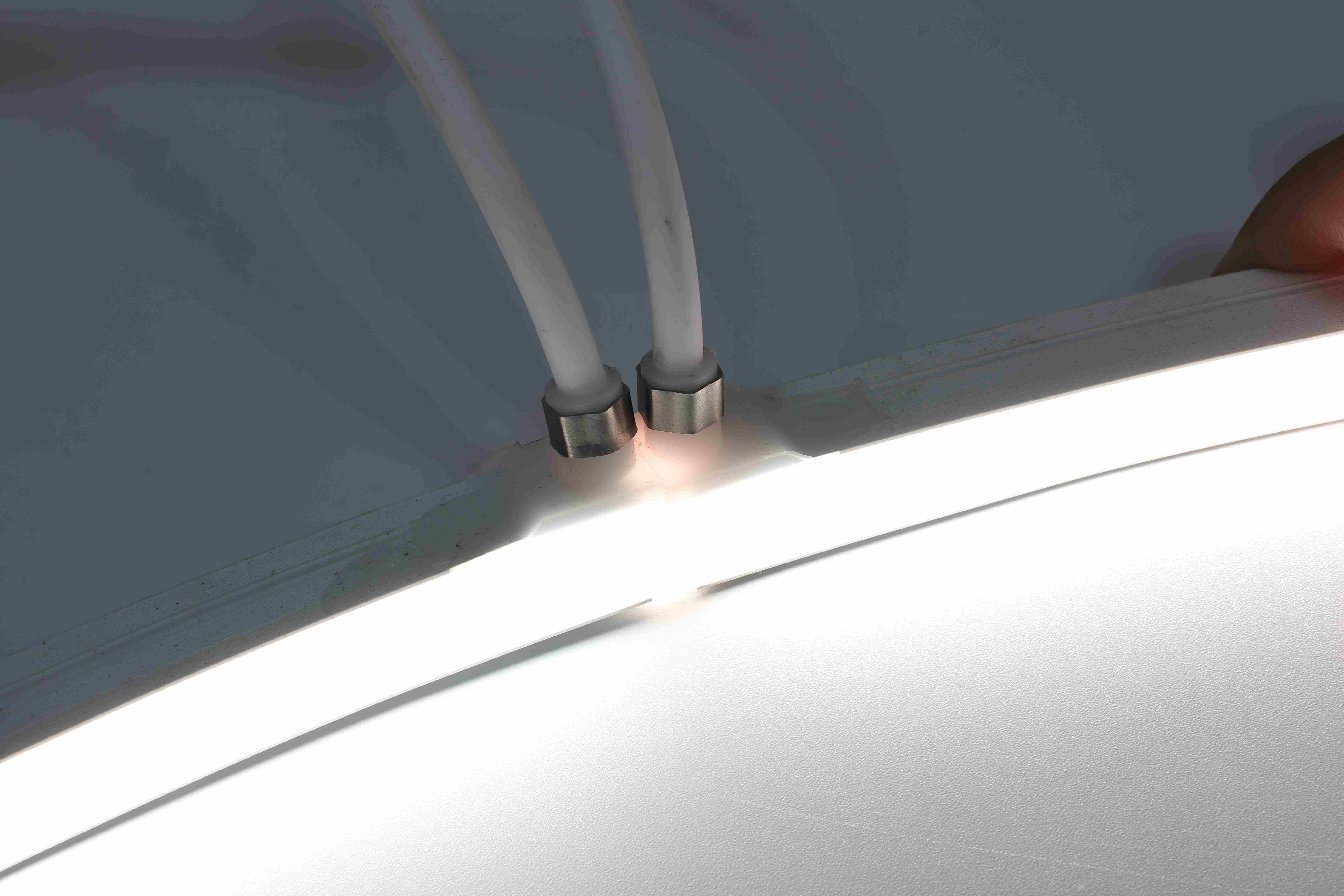

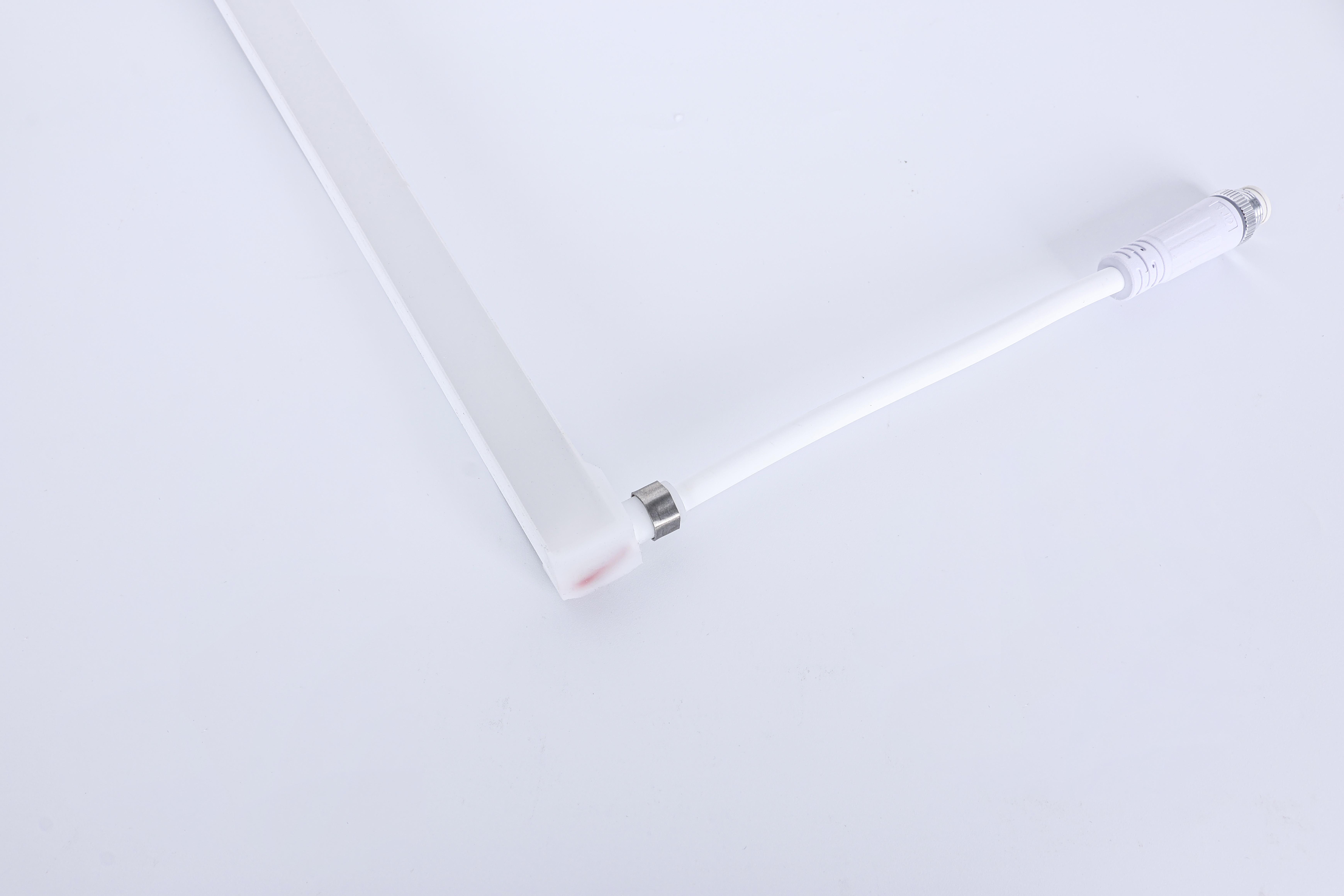

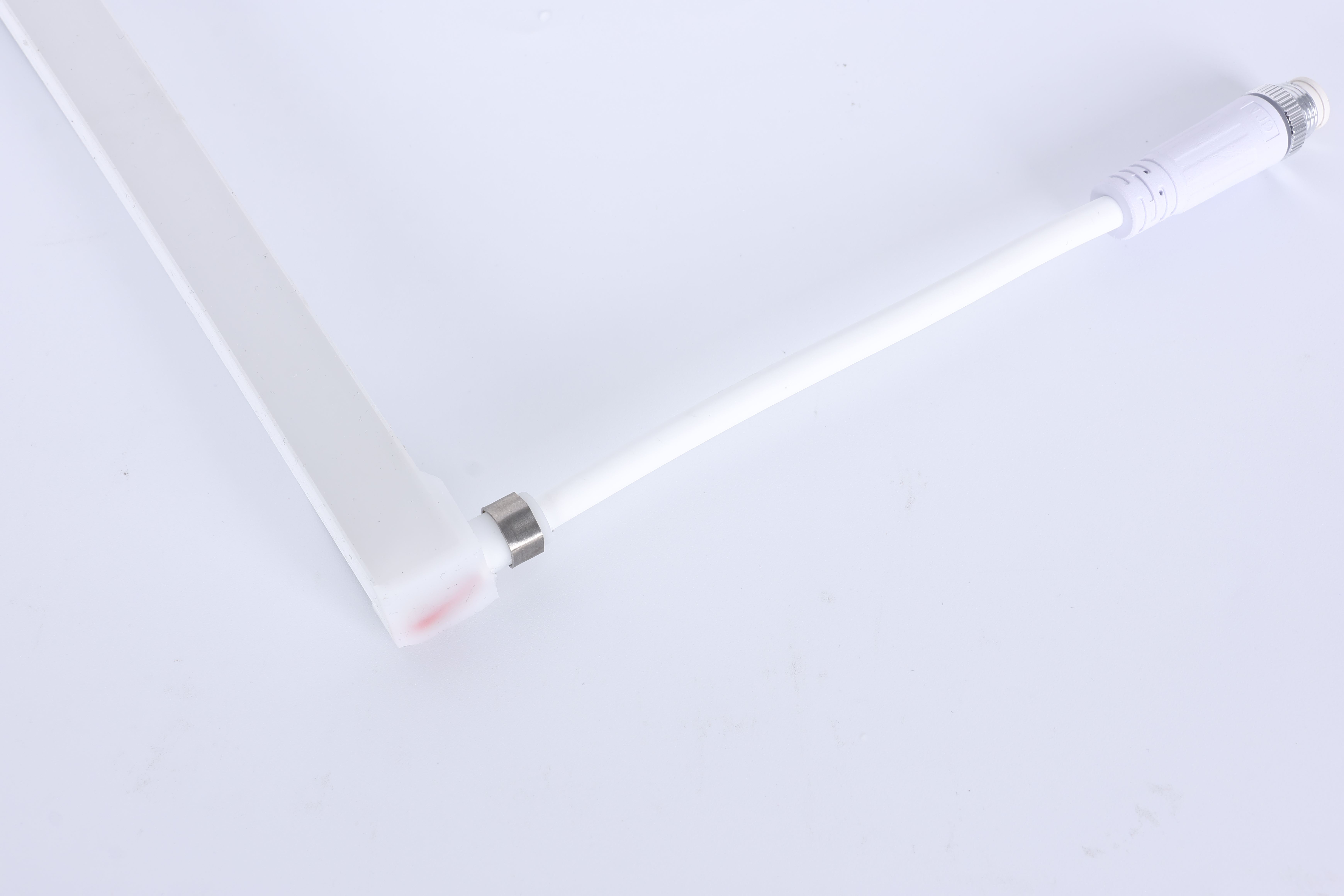

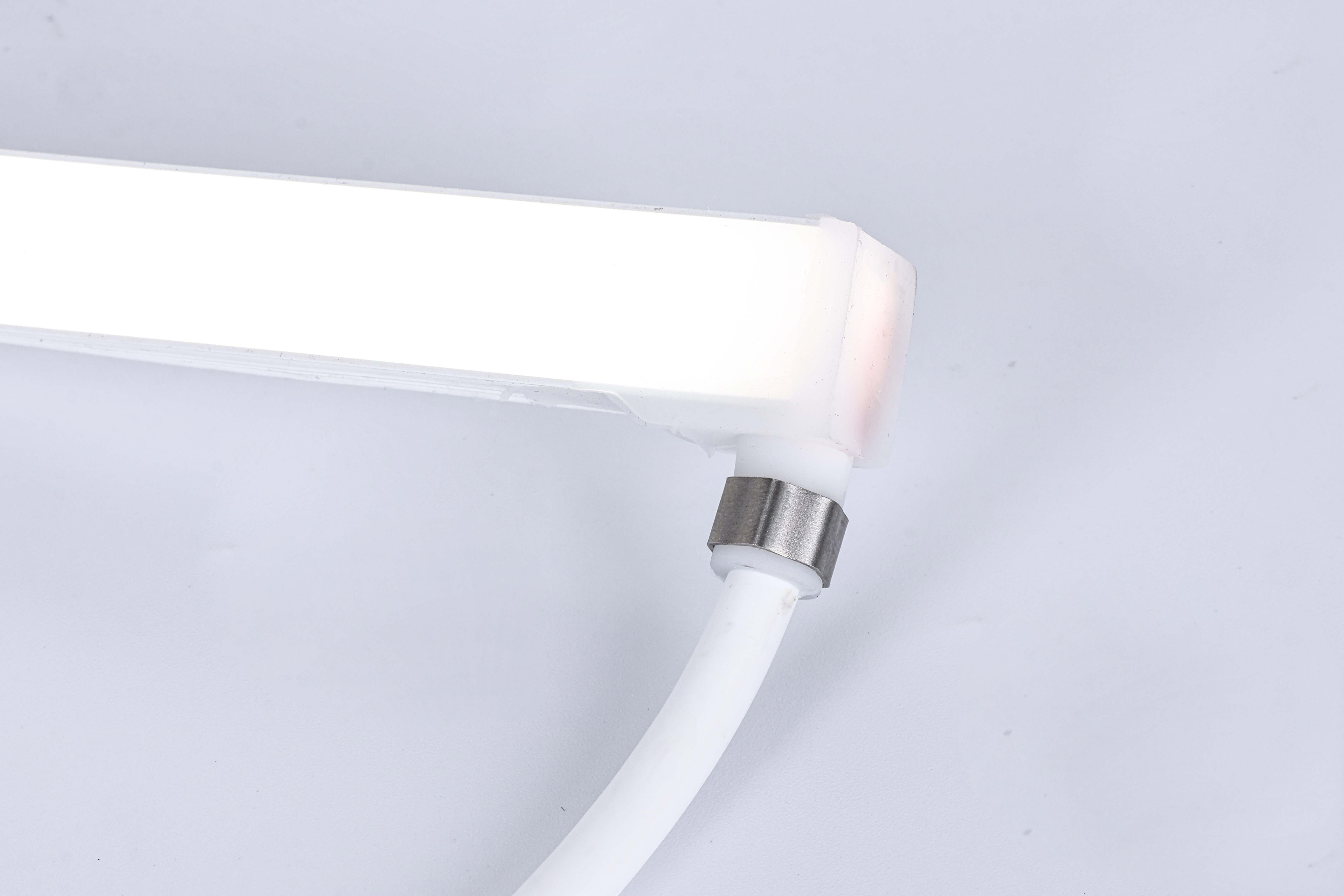

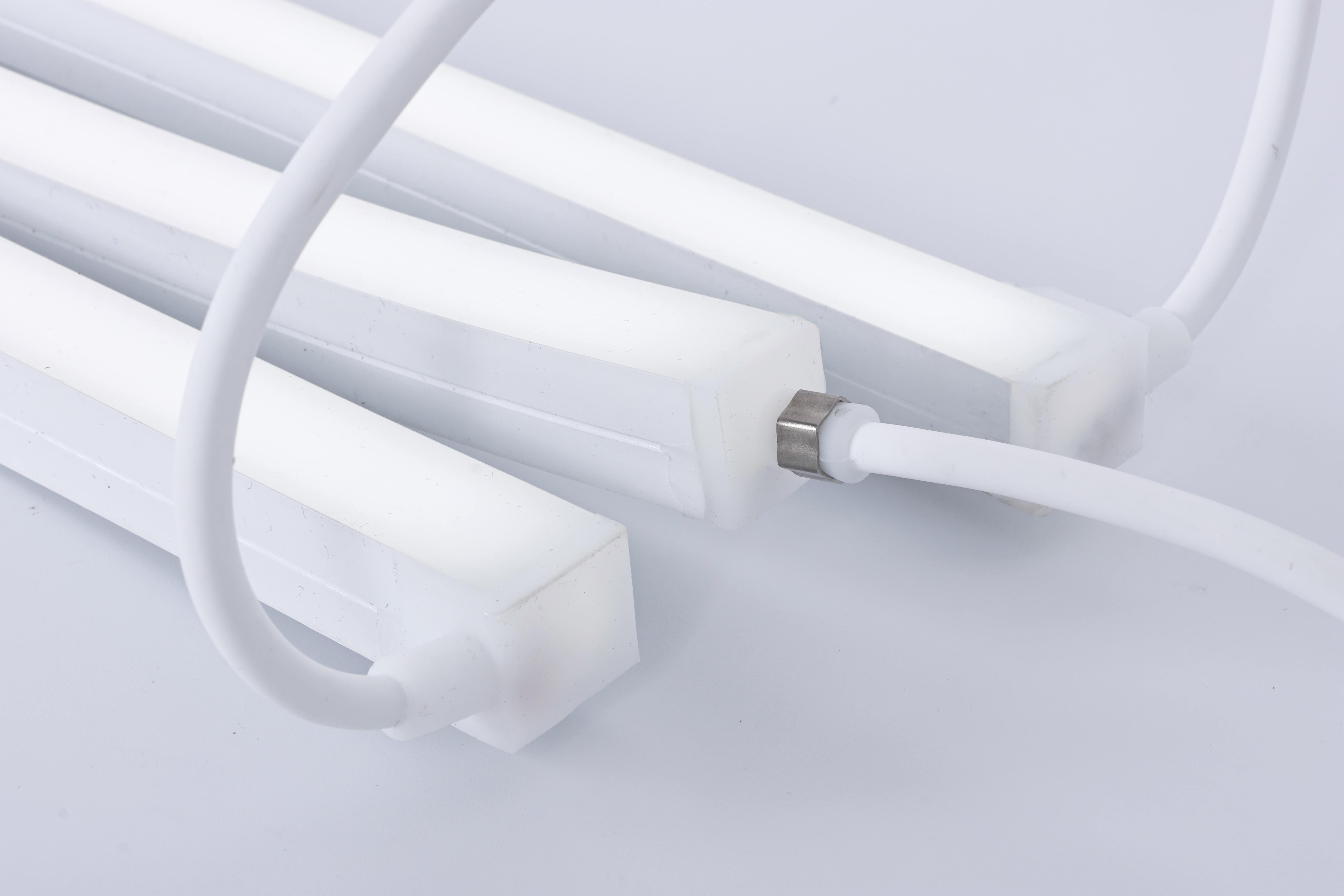

| Metal terminal connection wire | For durable, low-resistance feed connections |
| Nylon terminal connection wire | Alternative lightweight connection option |

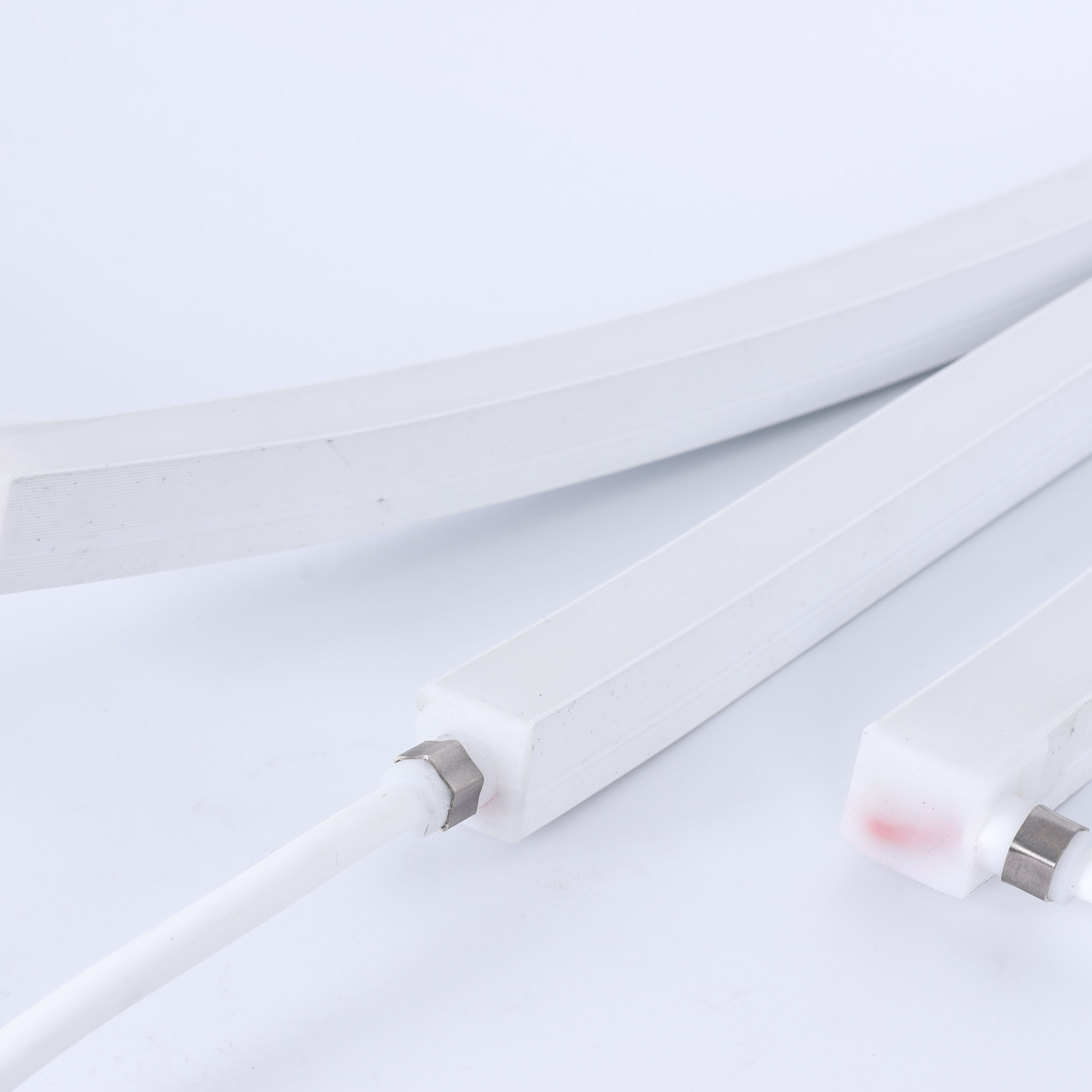

| End plug | Seals the open end of a cut strip section |
Q: How does the 16x16mm profile compare with the 10x10mm and 12x12mm ranges?
A: Output is significantly higher — 900 lm/m against 550-720 lm/m on the smaller profiles — making 16x16mm the practical starting point for facade and prominent architectural accent lighting rather than typical cabinet applications.
Q: Is this a front-emitting or side-emitting strip?
A: Front-emitting. Light is viewed straight-on through the strip's top face. A side-emitting 16x16mm model is also available in the range for channel letter and signage applications.
Q: Can this strip be installed outdoors for facade lighting?
A: Yes, IP68 rating supports full outdoor exposure within the -25°C to +45°C operating range, suited to facade and architectural accent lighting.
Q: How is this different from the 336-LED 16x16mm model in the range?
A: This model carries 240 LEDs per metre at 900 lm/m; the 336-LED version carries higher density at a lower 600 lm/m output. Choose based on whether higher output or denser, smoother emission is the priority.
Q: Can the colour temperature be changed after installation?
A: No, it is fixed at manufacture from the Tri-CCT 3-in-1 range specified at order.
Q: What is the MOQ and lead time?
A: MOQ is 50 sets, lead time 15–21 days. Supplied on 5m reels, 10 reels per carton totalling 50m, shipped from Guangzhou or Shenzhen.
