Key Features

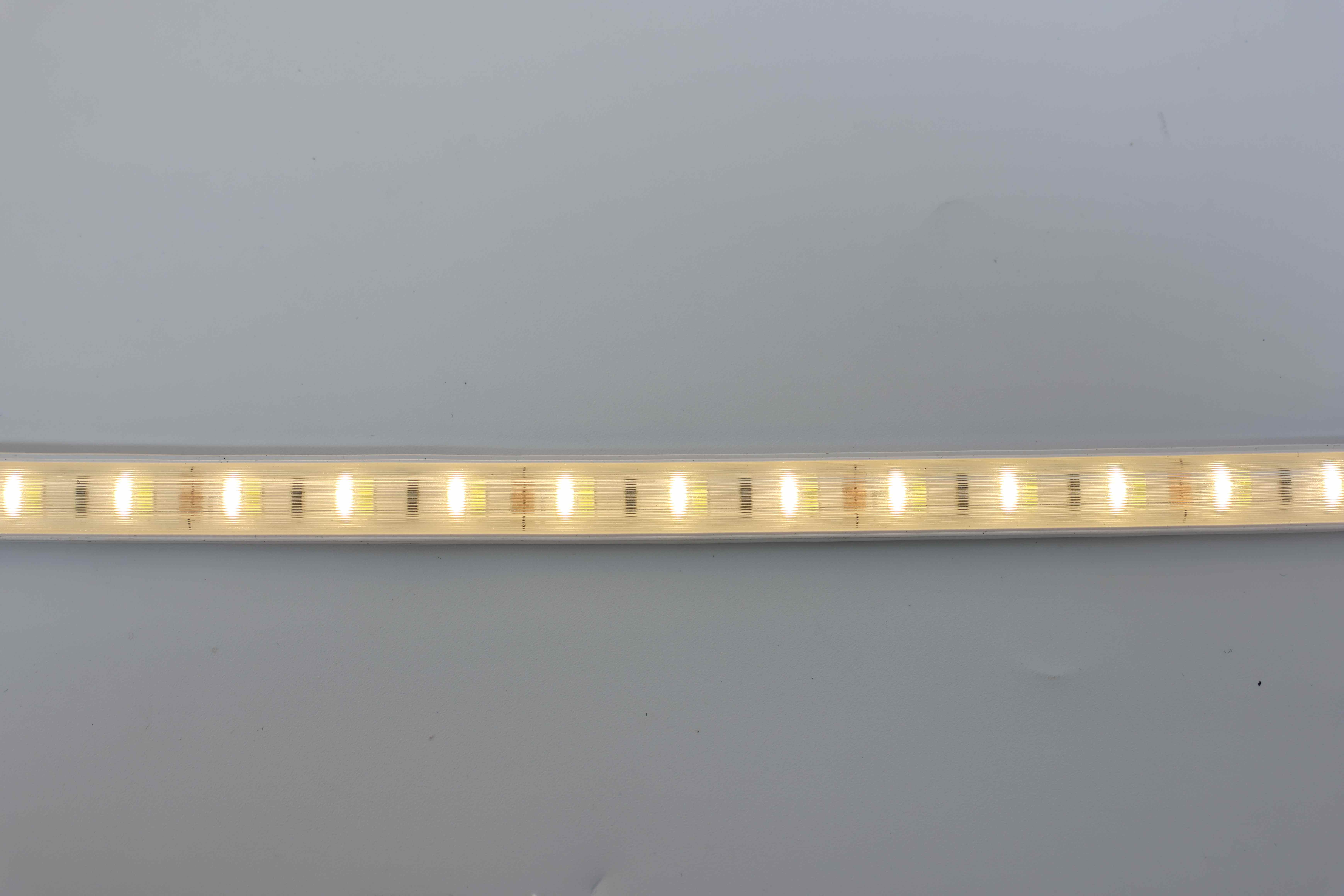

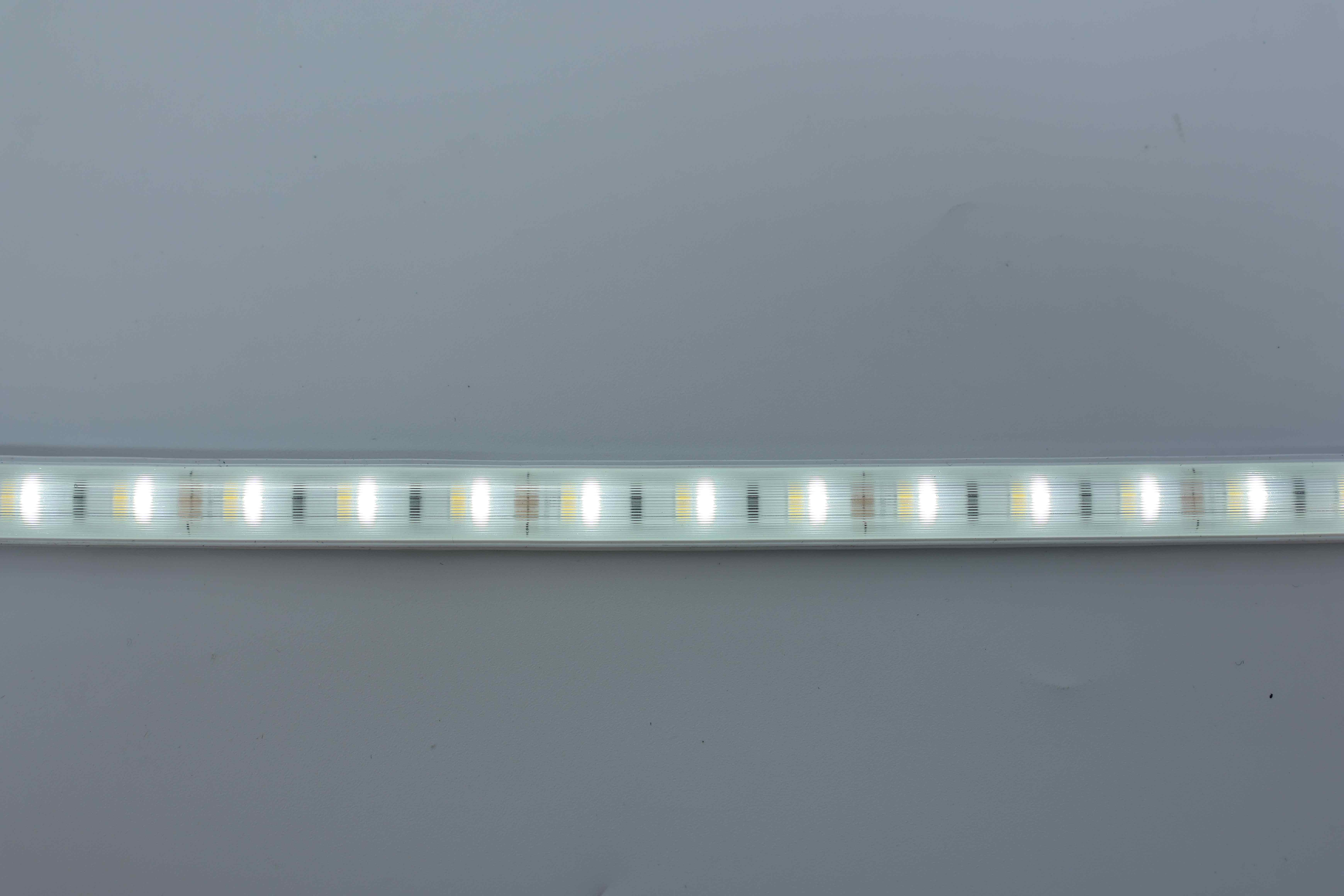

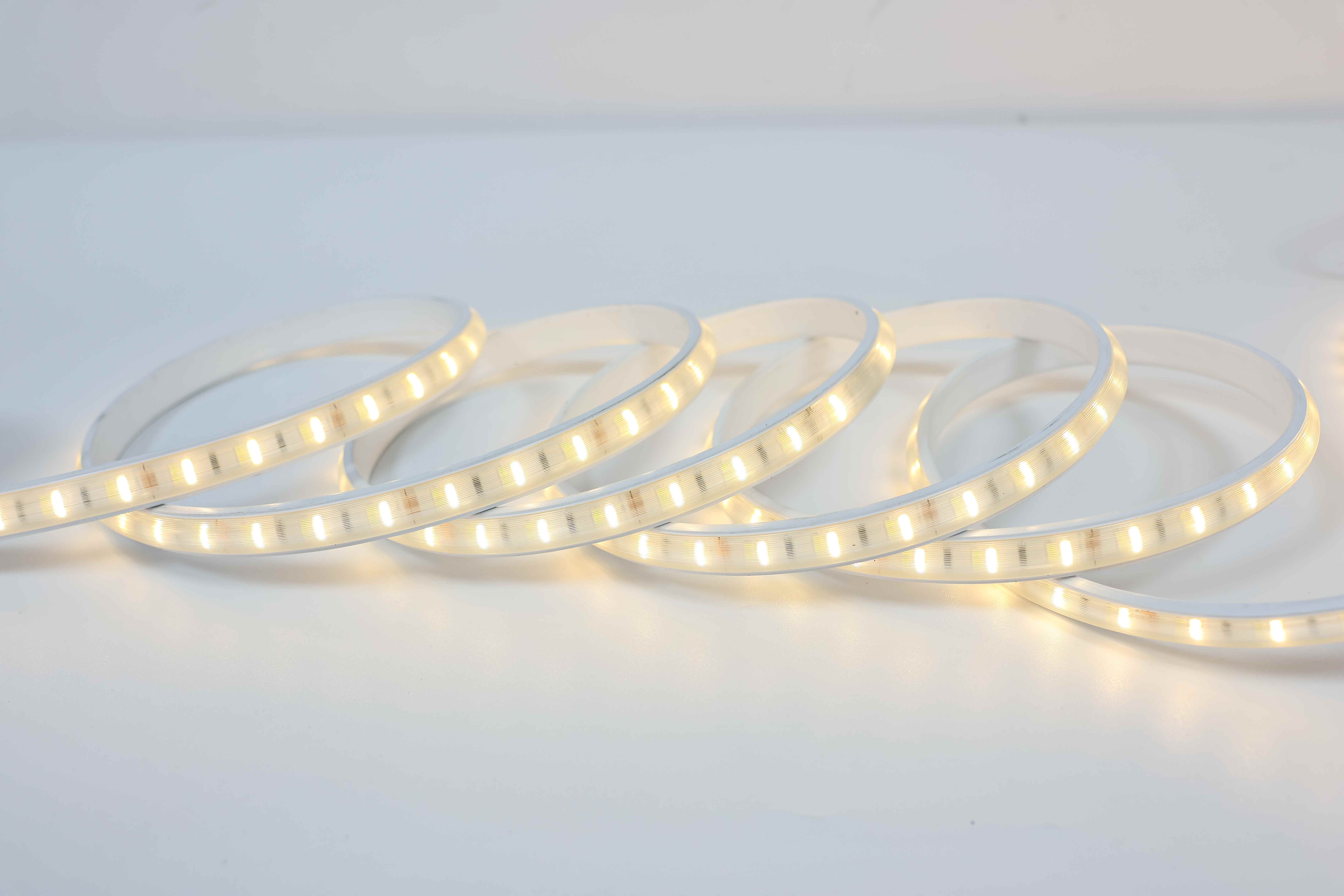

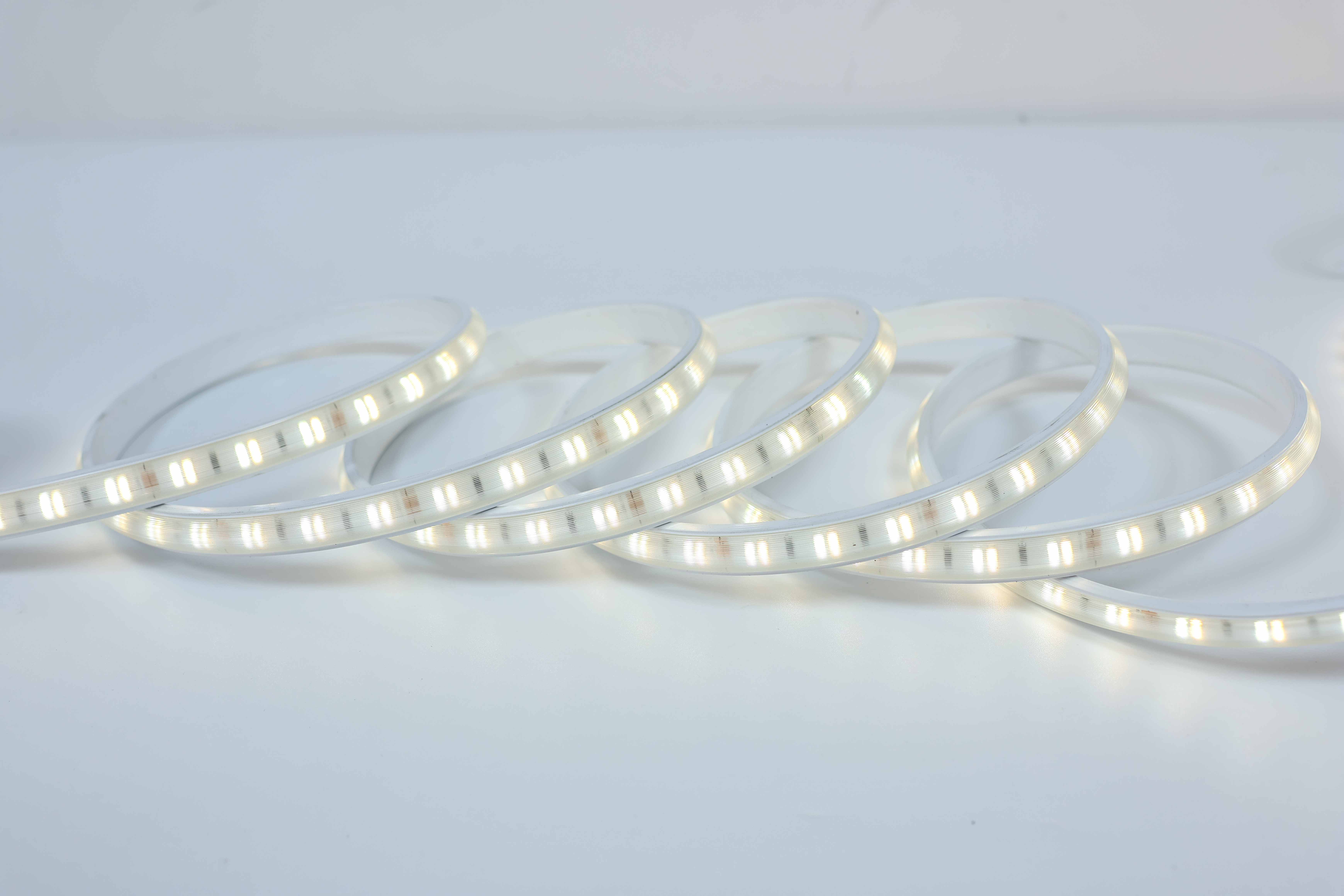

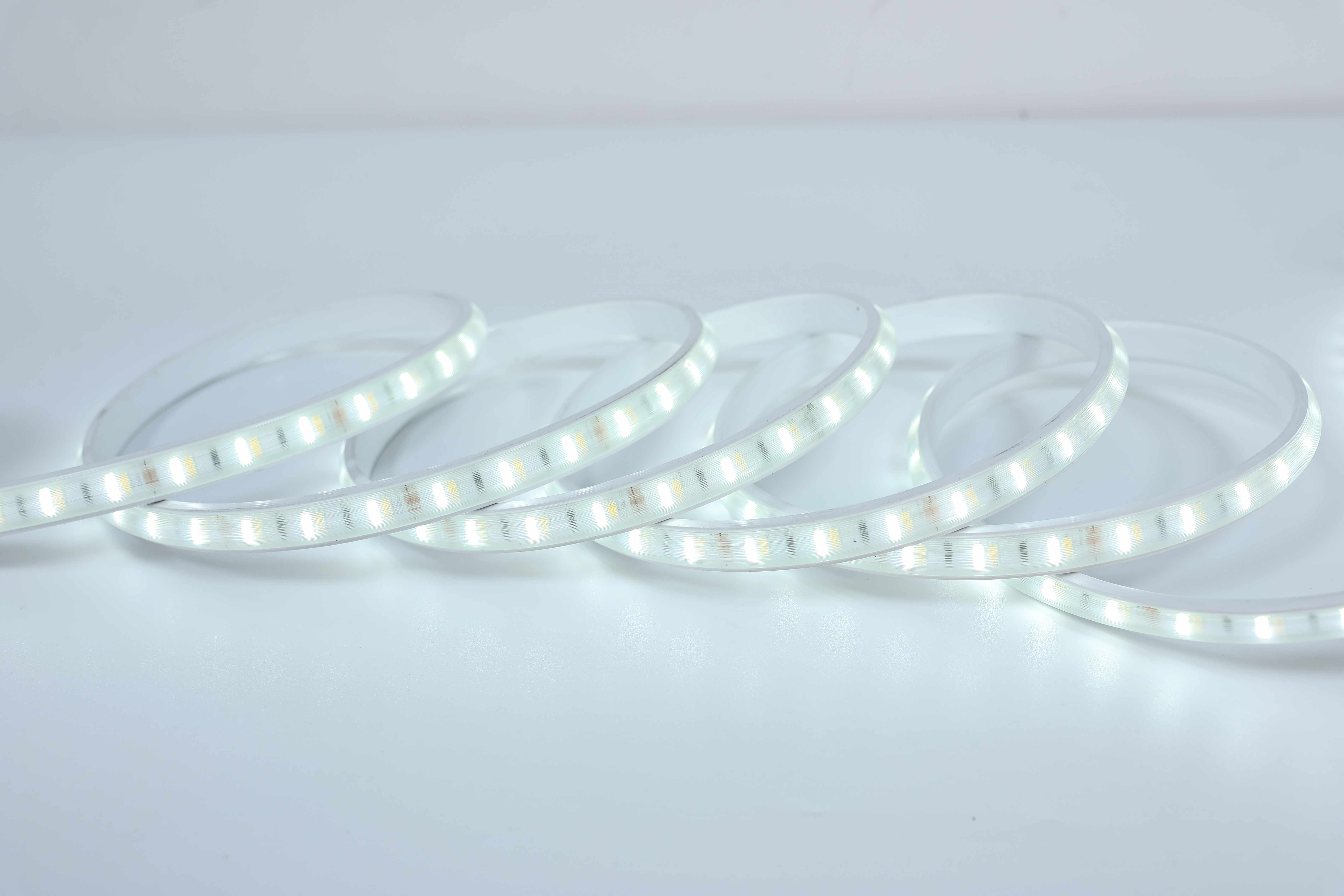

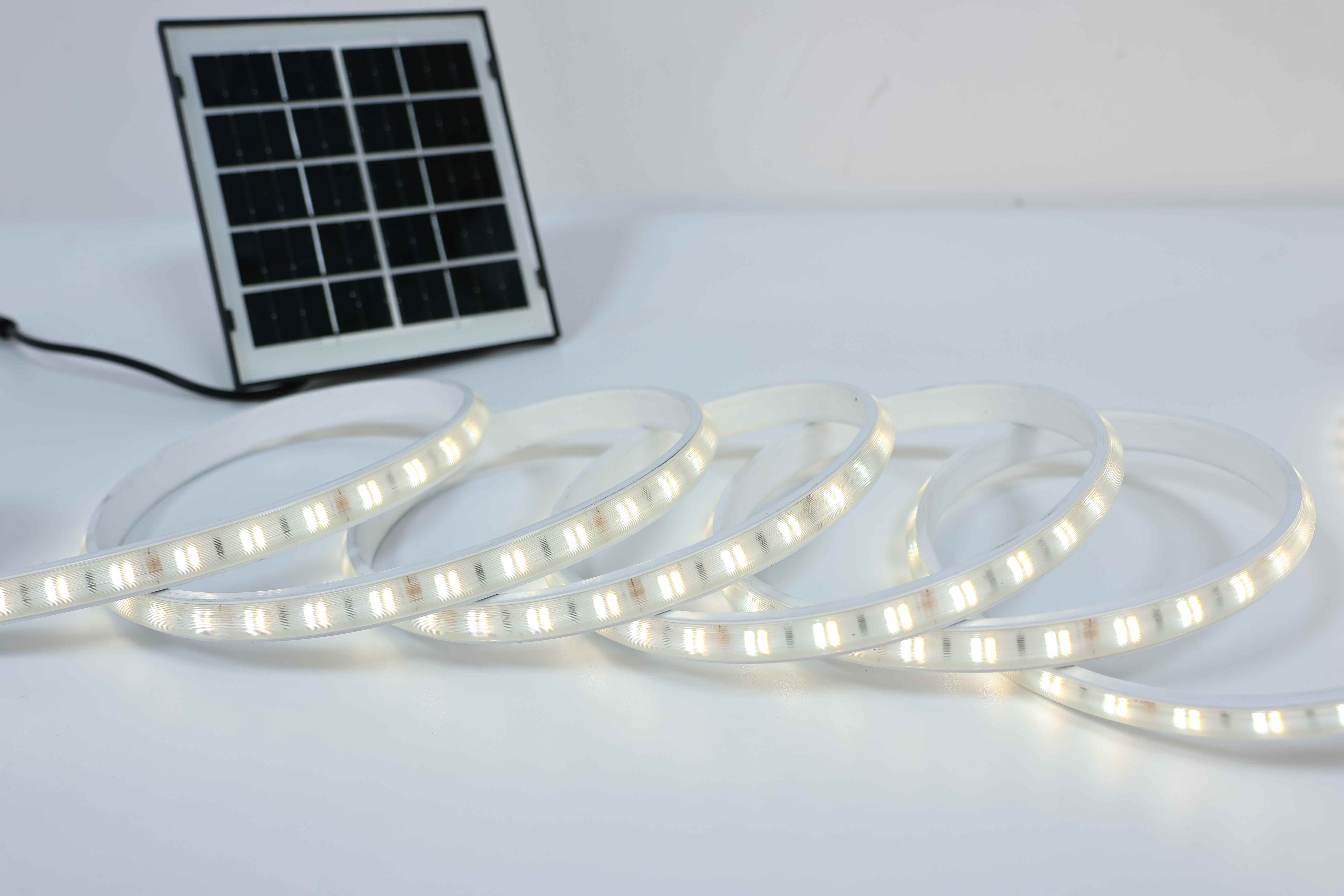

• Two white channels in one strip – 3000 K warm white for evening ambience and 6500 K daylight white for task and security lighting, switchable at any time by remote.
• 600 LEDs on a 5 metre run – Double the LED count of the single-colour 5 metre kit, required to carry both colour channels along the full length.
• RF remote at 10–20 metres – Radio control needs no line of sight and is unaffected by dust, grease, or physical obstructions. Button control on the unit is retained.

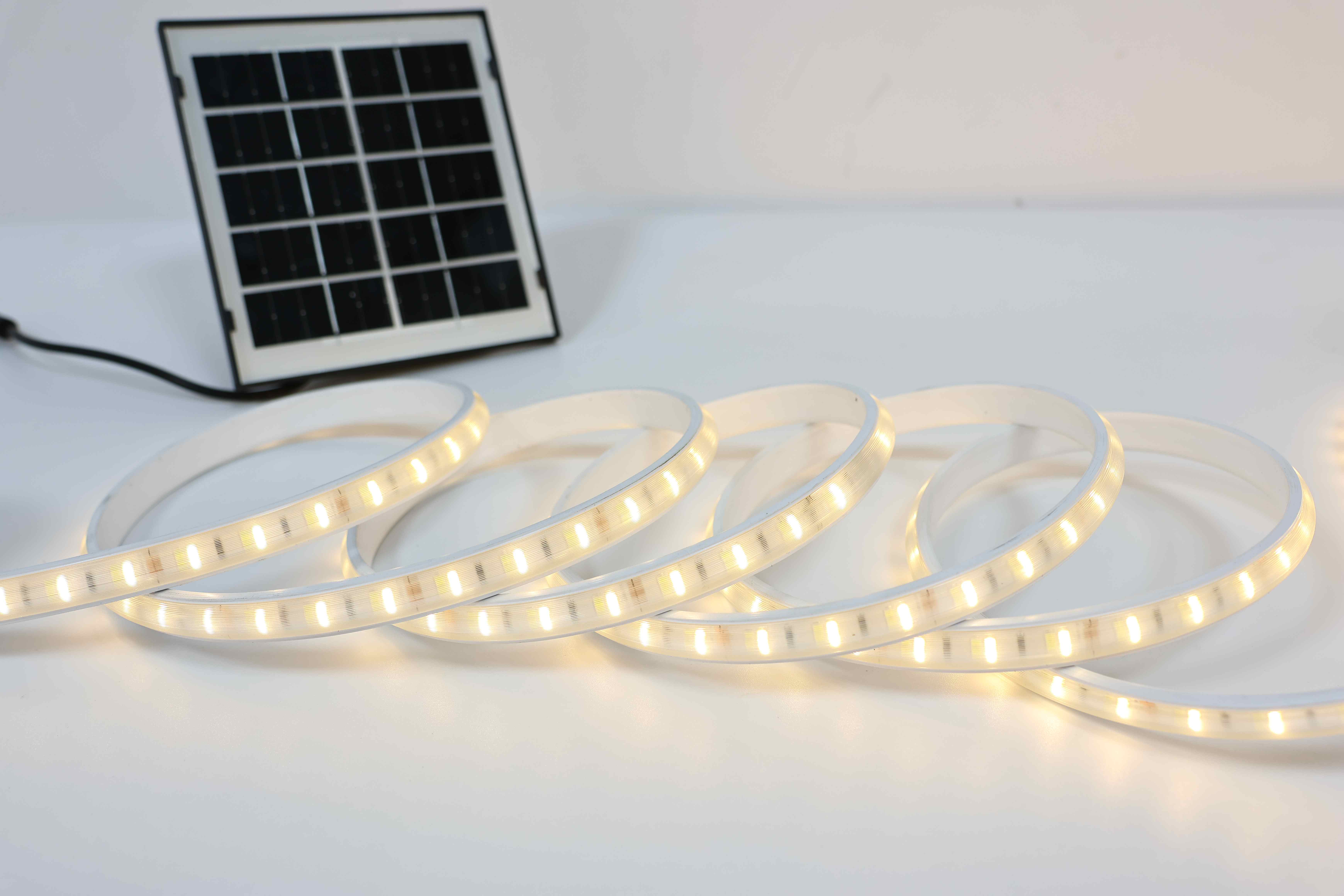

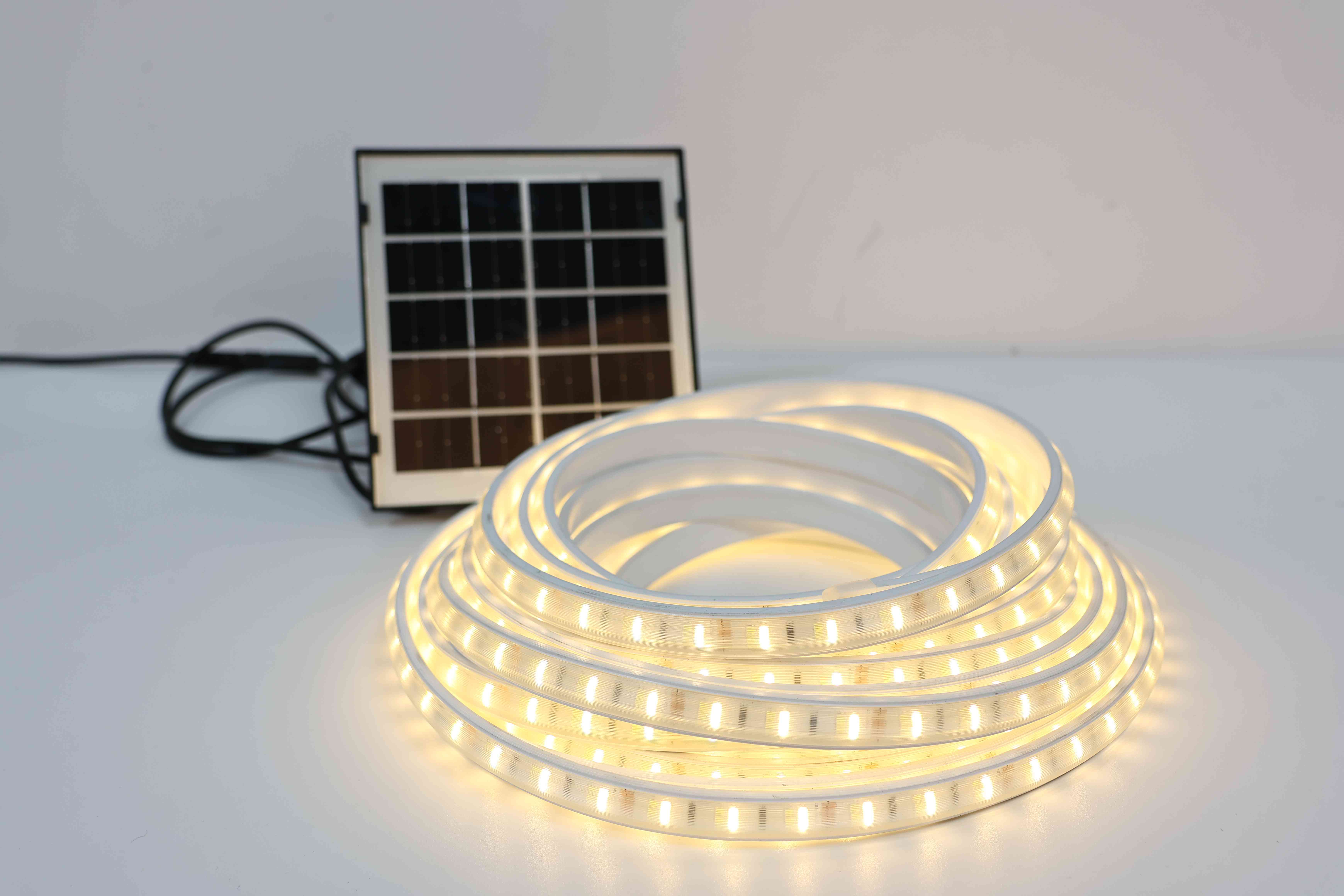

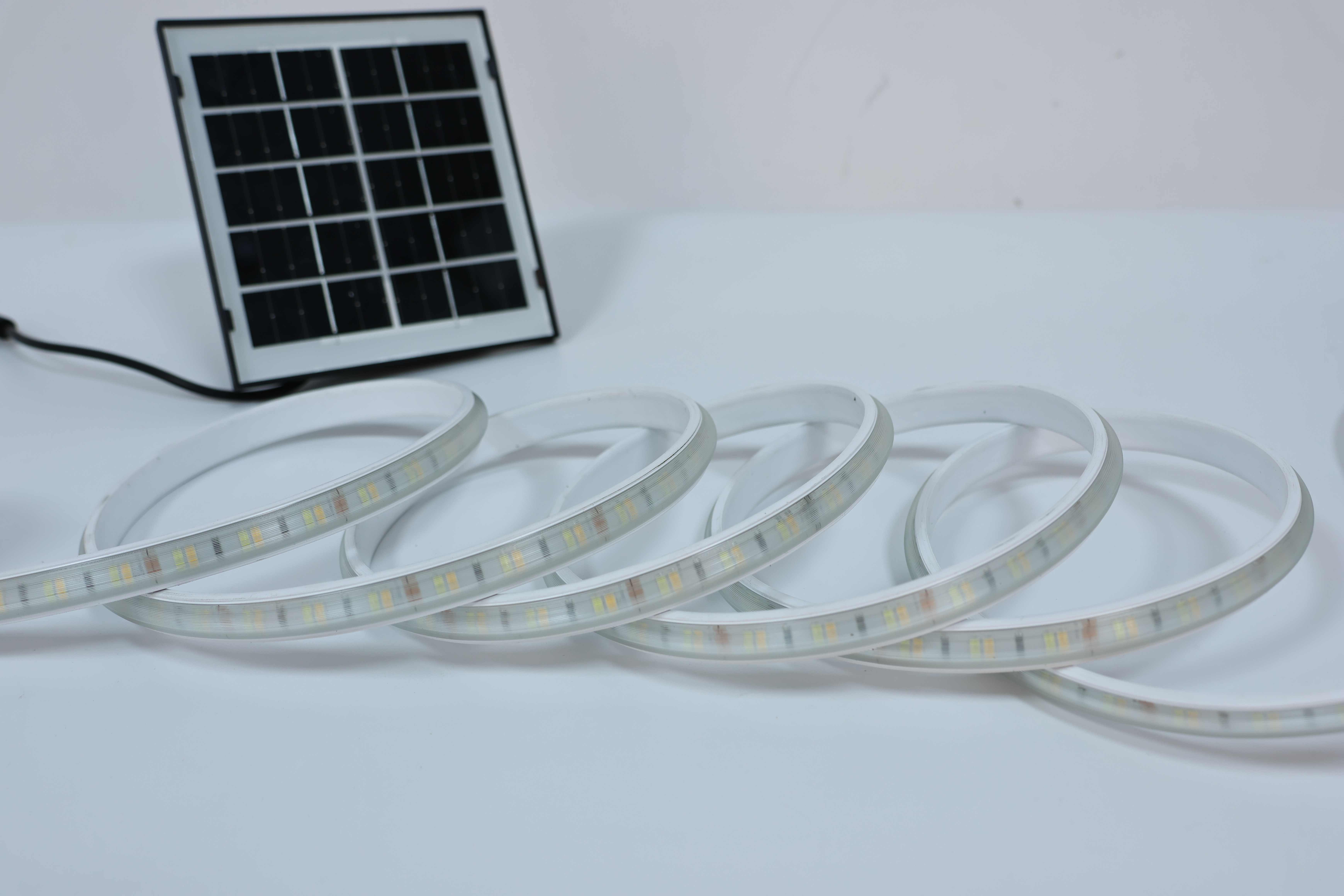

• Fully off-grid – Solar charging into an 18650 / 1800 mAh cell; automatic dusk activation with no mains draw and no metered running cost.
• Detachable adjustable ground spike – Angle the panel toward peak sun; detach it for cleaning or off-season storage.

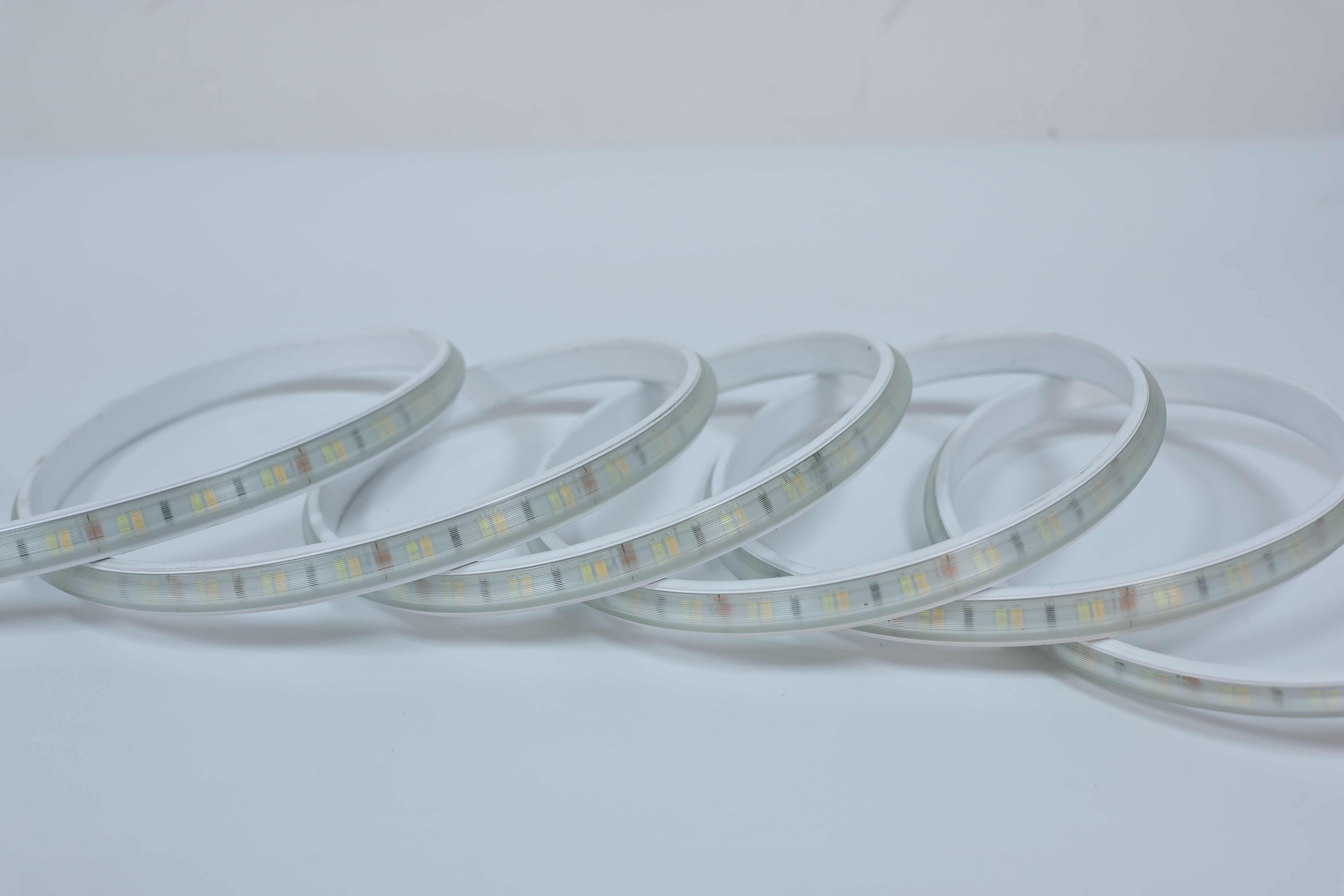

• IP65 sealed brushed PVC – W12.5 × H7.0 ± 0.5 mm profile rated for continuous outdoor exposure from -25 °C to +45 °C.
• Colour consistency across channels – SDCM ≤ 7 and CRI 70 hold appearance steady when switching modes and between units in a multi-kit installation.
• Field-cuttable at 50 mm – Trim to suit the run; the connected section keeps its IP65 sealing.

Specifications

Materials & Finish

• Strip housing: PVC extrusion with brushed external finish, W12.5 × H7.0 ± 0.5 mm — identical profile to the single-colour models, so mounting hardware is interchangeable across the series.

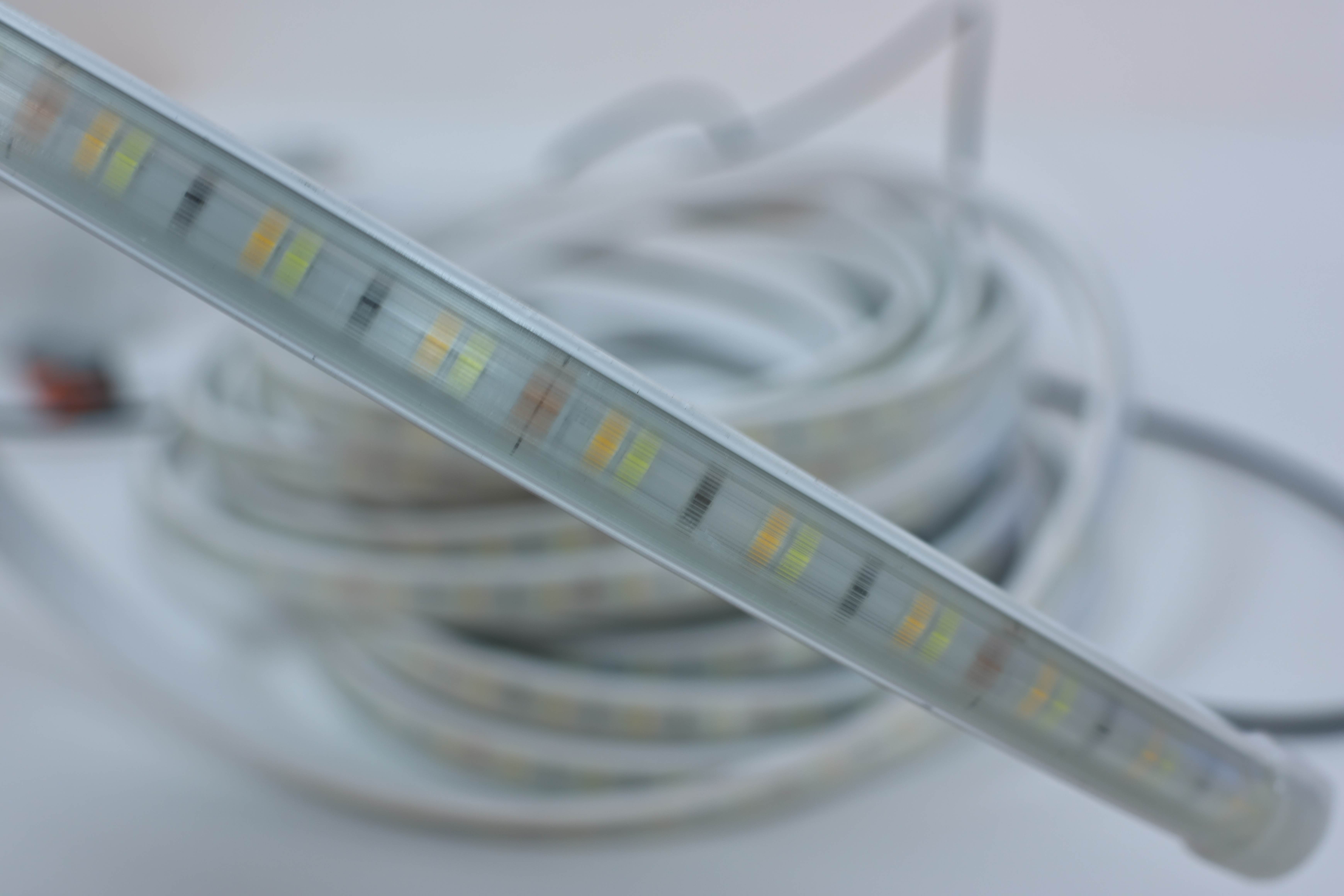

• LED layout: 600 pcs 2835 packages carrying two separately addressable white channels at 3000 K and 6500 K.
• Ingress protection: IP65 across the strip and the strip-to-controller docking joint.
• Battery cell: 18650 lithium cell, 1800 mAh at 3.2 V, integrated into the sealed solar control unit.
• Thermal range: -25 °C to +45 °C operating, -20 °C to +45 °C storage, 10–90% relative humidity.
• Photometric stability: L70B20 at 20,000 hours; SDCM ≤ 7 prevents visible colour drift between the two channels and across multiple units.
• Mechanical endurance: 15,000 switching cycles, MTBF 20,000 hours.

Assembly & Installation

Tools needed: screwdriver, and a drill if fixing clips to masonry.

Steps:

1. Position the solar panel where daylight exposure is longest — dual-channel strips draw from the same battery, so charging position matters.
2. Insert the ground spike into soil, or hang the panel on a wall, fence, or railing.
3. Angle the panel toward peak sun.
4. Secure the strip along the run with the supplied clips, screws, and expansion bolts.
5. Join the strip to the solar control unit through the keyed docking connector.
6. Pair the RF remote and cycle through both colour modes to confirm each channel operates.

Commissioning tip: demonstrate both channels to the end customer at handover. The dual white function is the primary reason this SKU is chosen over the single-colour model, and it is frequently left undiscovered when the remote is not explained.

Applications

• Outdoor dining and entertaining areas – Warm white at 3000 K for evening meals; switch to 6500 K when clearing and cleaning after.
• Patios and covered terraces – Ambient light for relaxing, functional light for use as a working or utility space.
• Balconies in rental properties – Two lighting moods with no wiring, no landlord permission, and no fixed installation.
• Garden workshops and storage areas – 6500 K daylight white where visibility matters, warm white when the area doubles as a seating space.
• Hospitality and small venues – Cafés and garden bars adjusting light character between service periods.

Customization

Certifications

• CE
• CB
• RoHS
• Test reports available on request

Packing & Logistics

• Packing type: colour box + carton
• Packing quantity: 20 SET per carton
• Inner box dimensions: L215 × W185 × H100 mm
• Inner box weight: 950 g
• Carton dimensions: L525 × W450 × H390 mm
• Accessories included: fixed clip, screw, expansion bolt
• MOQ: 50 sets
• Lead time: 15–21 days
• Port of loading: Guangzhou / Shenzhen

Service

• Warranty: 2 years
• Samples: free samples on standard items; freight collect
• Response time: within 2 hours
• After-sales: technical support by email or phone throughout the warranty period. Report quality issues with photographs, video, and the item number; verified defects are resolved by replacement parts or replacement units shipped with your next order, or by credit where no follow-up order is scheduled. Faults caused by physical damage, unauthorised modification, or use outside the rated environmental conditions fall outside warranty cover.
• Contact: tel: +86 18933392222 | email: [email protected] | global.joineonlux.com

FAQ

Q: What does dual white mean on this solar LED strip light kit?
A: The strip contains two separate white LED channels — 3000 K warm white and 6500 K daylight white. The user switches between them with the RF remote or the button on the control unit. This is a two-mode selection, not a continuously tunable range.

Q: Why does the 5 metre dual white kit have 600 LEDs when the single colour 5 metre kit has 300?
A: Each colour channel needs its own LEDs along the full length of the strip. Doubling the LED count is what allows both the 3000 K and 6500 K channels to run across the whole 5 metres at consistent density.

Q: Can both white channels run at the same time?
A: The kit is designed for switching between the two channels rather than blending them. Select 3000 K warm white or 6500 K daylight white as required.

Q: How far does the remote work, and does it need line of sight?
A: The RF remote operates at 10–20 metres and does not require line of sight. Radio signalling passes through obstructions and is not degraded by dust or grease on the control unit.

Q: Is a mains connection or an electrician needed?
A: Neither. The solar panel charges an 18650 / 1800 mAh battery during the day and the strip illuminates automatically at night. There is no mains wiring and no running cost.

Q: What is the minimum order quantity and lead time?
A: MOQ is 50 sets, lead time 15–21 days. Cartons hold 20 sets and ship from Guangzhou or Shenzhen.
